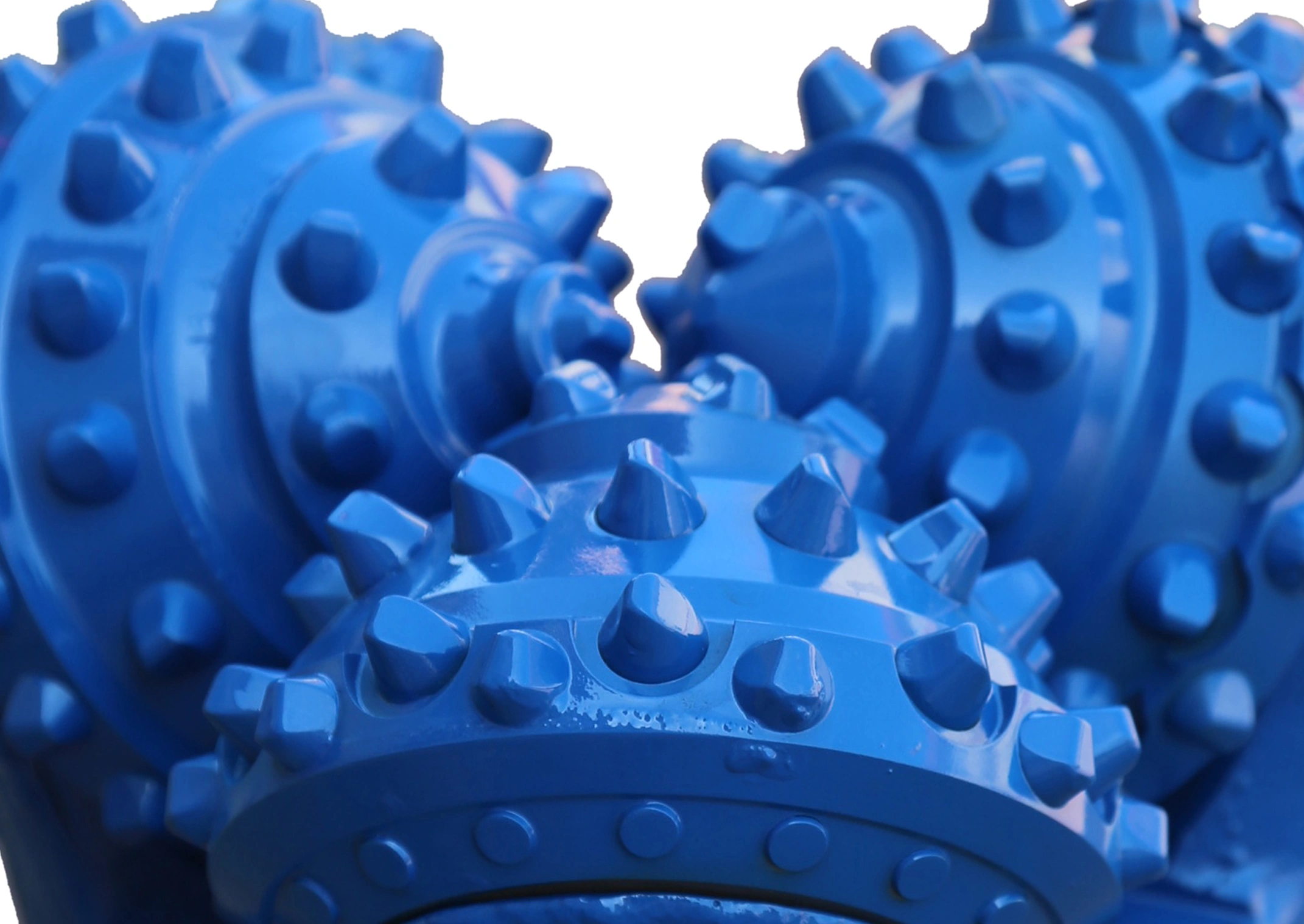

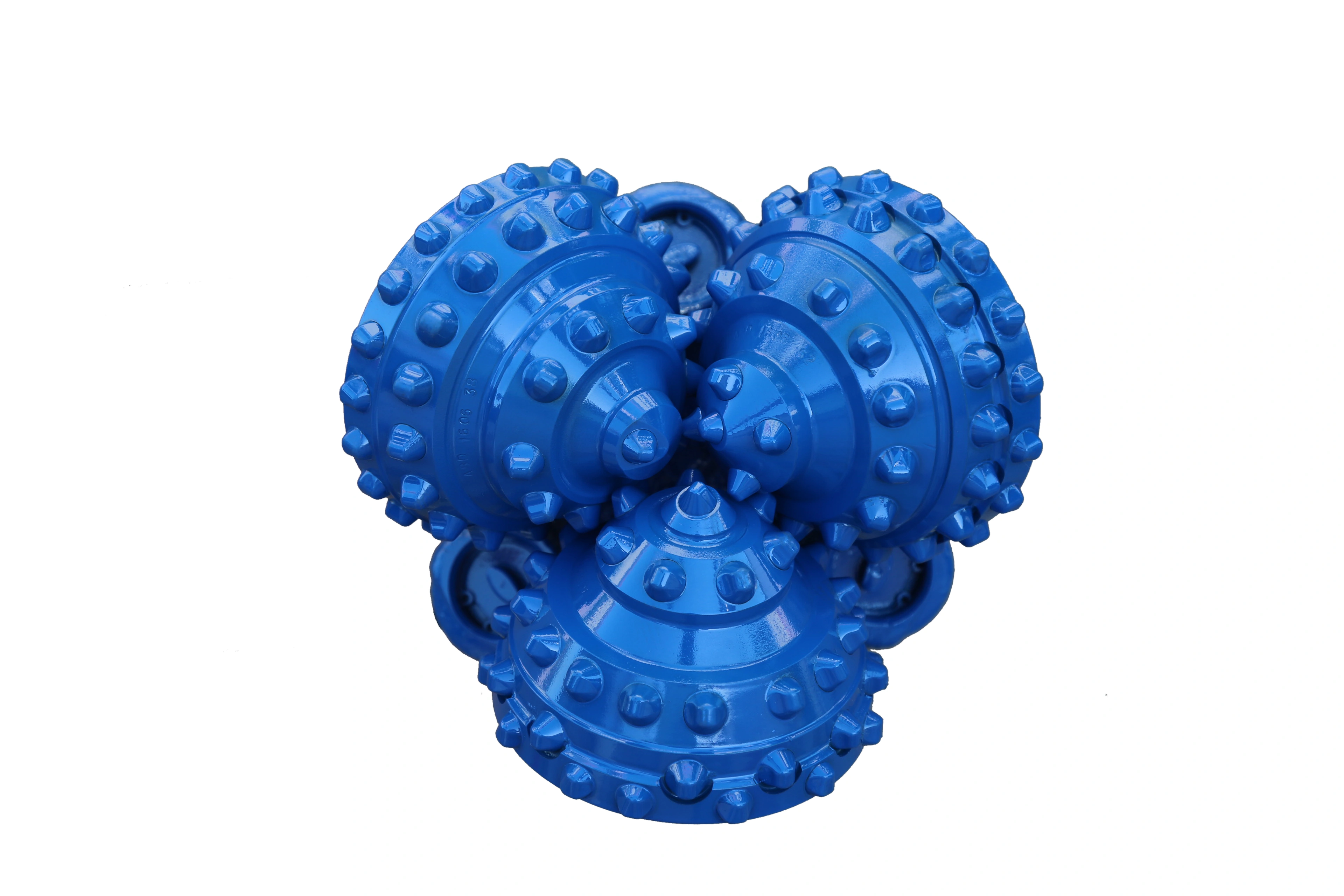

Milled tooth tricone bits IADC 127 for soft formations with low compressive strength and high drillability
keyword:
Category：
Tricone Bit
Product details

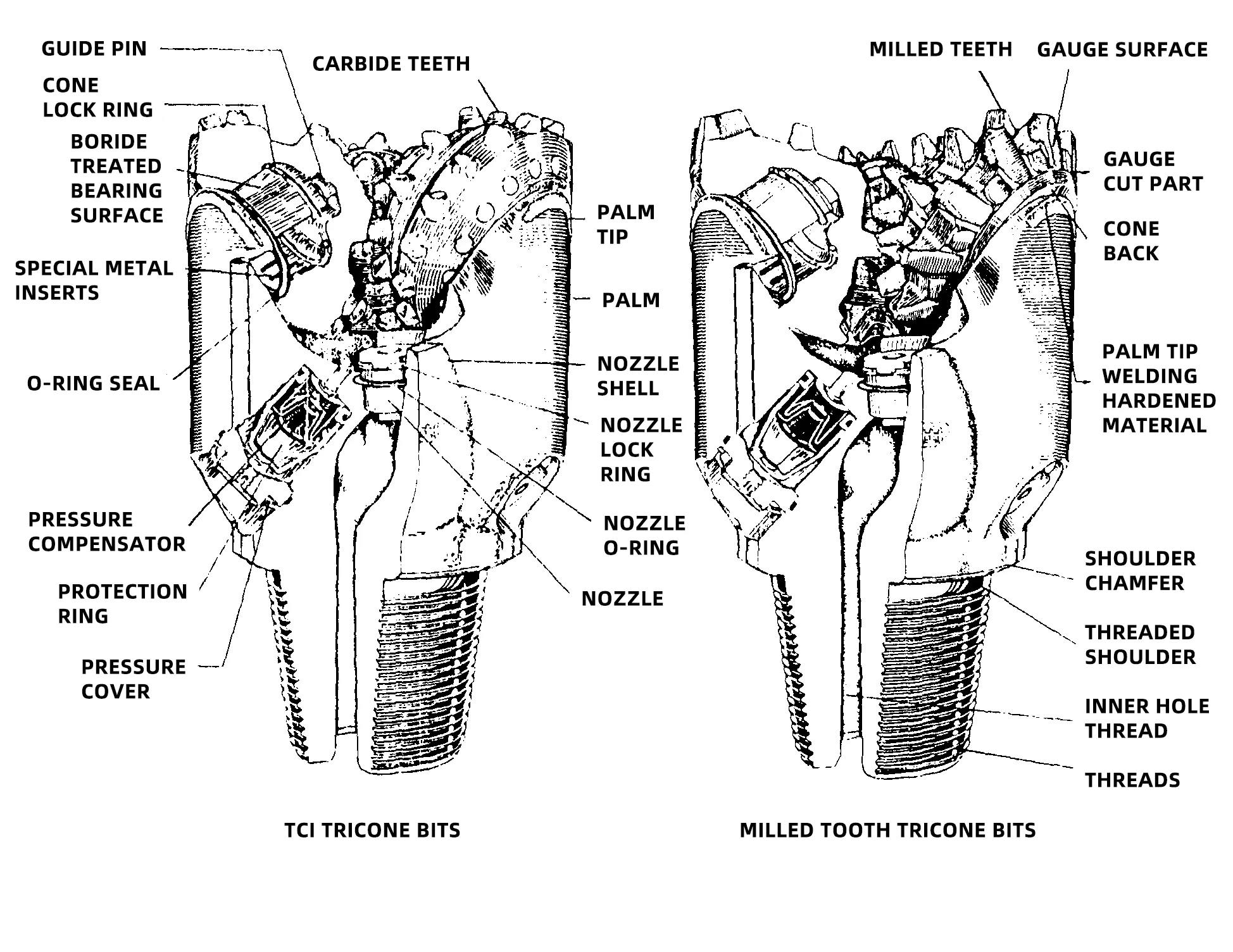

Nomenclature of RUlSHI Oil Well TCl Tricone Bit Model
| IADC | 5 | 3 | 7 |
| IADC Code | 1, 2, 3: Milled teeth bits from very soft to hard formations 4,5,6,7,8: TCl bits,from very soft to hard formations |
1, 2, 3, 4 from very soft to very hard formations,bits differ in number and size of cutters/inserts |
1:Standard open roller bearing 2:Standard open roller bearing,air-cooled 3:Standard open roller bearing with gauge protection 4:Sealed roller bearing 5:Sealed roller bearing with gauge protection 6:Sealed friction bearing 7:Sealed friction bearing with gauge protection |
BITS SPECIFICATIONS
| IADC CODE | 127 |
| RecommendedRPM(r/min) | 180-60 |
| RecommendedwOB (KN/mm) | 0.3-0.85 |
APPLICABLEFORMATIONS
Soft formations with low compressive strength and high drillability
Such as mudstone、chalk、salt rock、soft limestone，etc
