6 inches steel body pdc bits with 13mm cutters and 8 blades for soft to medium hard formations

Category:

Steel Body PDC Bit

Send Email:

Product details

PDC steel body drill bit is an efficient drilling tool widely used in oil, gas, and geothermal well drilling. Its unique design and material combination enable it to perform well under various geological conditions, making it widely suitable for rapid drilling operations in various geological formations.

The PDC steel body drill bit with 6 inches, eight blades, and 13mm main cutting teeth is currently one of the most efficient, economical, and widely applicable drilling tools on the market.



Bits Specification



Bit size (in)6″
Bit size (mm)152.4
Number of blade8
Primary cutter size(mm)13
Nozzle qty8
Gauge length2″-3.5″
Connection3-1/2″ API REG
Recommended RPM (r/min)60-250
Recommended WOB (KN)10-100
Recommended flow rate(lps)20-35
Net / Gross weight (kg)*(Based on actual products)
Package dimension (mm)480×210×210
FormationsSuitable for soft to medium hard formations. Limestone, sandstone, shale, etc.
Structure feature◆ Single row tooth structure, Welding high-performance wear-resistant materials on the surface of the blade. Enhance the wear resistance and erosion resistance of the bit.
◆ High quality composite sheet gauge preservation. reduce gauge wear and increase the wear resistance and stability of drill bit gauge retention.
◆ Hydraulic structure optimization. Hydraulic balance design for simulating the flow field at the bottom of the well, which is beneficial for cleaning and cooling the drill bit and preventing mud bags.



Ruishi Bits Model Description



For details, please refer to the official website of Hebei Ruishi Bits Manufacturing Co., Ltd:

https://www.ruishibit.com/

S

13

8

5

G

Bit Type

S: PDC steel body bit

M: PDC matrix body bit

Cutter Size
13/16/19: 13/16/19 mm

Number of Wings
3, 4, 5, 6...

Suitable Formation Hardness
1-7 From soft to hard

Characteristic Code
J/A Gold Series; X Sprial Gauge; C Sidetrack Bit; Q Core Bit; B Bi-center Bit; F Auxiliary Cutting; G Imported PDC Cutters



The Characteristics of PDC Steel Body Bits



PDC steel body drill bit (polycrystalline diamond composite drill bit) has become one of the core tools for modern efficient drilling due to its unique design and advanced materials. It uses high-strength alloy steel as the substrate and is embedded with high-density polycrystalline diamond composite (PDC) as the cutting unit, which combines sharpness, wear resistance, and impact resistance, and is suitable for the efficient rock breaking needs of extremely soft to extremely hard formations.
By scientifically arranging teeth, optimizing blade profiles, and designing hydraulic structures, rapid cutting and crushing of rock layers can be achieved, significantly improving mechanical drilling speed and single pass feed life. The steel structure has strong stability and excellent fatigue resistance, which can effectively suppress downhole vibration and displacement, ensuring precise and controllable drilling trajectory.
At the same time, the integration of high-quality PDC cutters and precision manufacturing processes enables them to maintain stable performance in high-temperature and high abrasive formations, significantly reducing the cost of frequent drilling and replacement, and achieving comprehensive economic benefits far beyond traditional roller drill bits.
With the ultimate pursuit of technical details, Hebei Ruishi's PDC steel body drill bits have been used in multiple deep oil and gas field projects at home and abroad, winning wide recognition from industry customers with lower comprehensive costs and higher drilling profits.



Structure and Materials: PDC steel body drill bits adopt a steel body structure, mainly made of alloy steel, with high strength and toughness. The cutting teeth are usually polycrystalline diamond (PDC) composite cutters, which have high hardness and good wear resistance, and can effectively improve the service life and drilling efficiency of the drill bit.
Blade and cutting tooth configuration: This drill bit (usually) is equipped with three to nine blades, each with a main cutting tooth distributed on it.
Applicability: PDC steel body drill bits are suitable for various soft and hard formations, and their design can effectively deal with formations containing abrasive interlayers, while also having good impact resistance and wear resistance.
Drilling efficiency: PDC steel body drill bits are known for their high cutting efficiency and can complete drilling tasks in a short period of time.





Chip removal capability: The drill bit design includes optimized bottom hole flow field and chip removal groove, which can reduce repeated cutting, improve drilling speed, and extend drill bit life.
Multifunctionality: PDC steel body drill bits are suitable for various well types such as vertical wells, directional wells, and horizontal wells, and can meet the needs of different working conditions.
Technological improvement: With the development of technology, the design of PDC steel body drill bits is constantly optimized, such as adjusting the crown shape, tooth density, and increasing the chip groove area, further improving their performance in complex formations.



Common Problems



Q: What are the advantages of our company?

A: Our company integrates R&D and manufacturing. We are a bit manufacturer with over 30 years of experience in the industry, providing customers with efficient one-stop services including design and development, customized suggestions, manufacturing, direct sales, and after-sales support.



Q: How to find the drill bit model you need on the website?

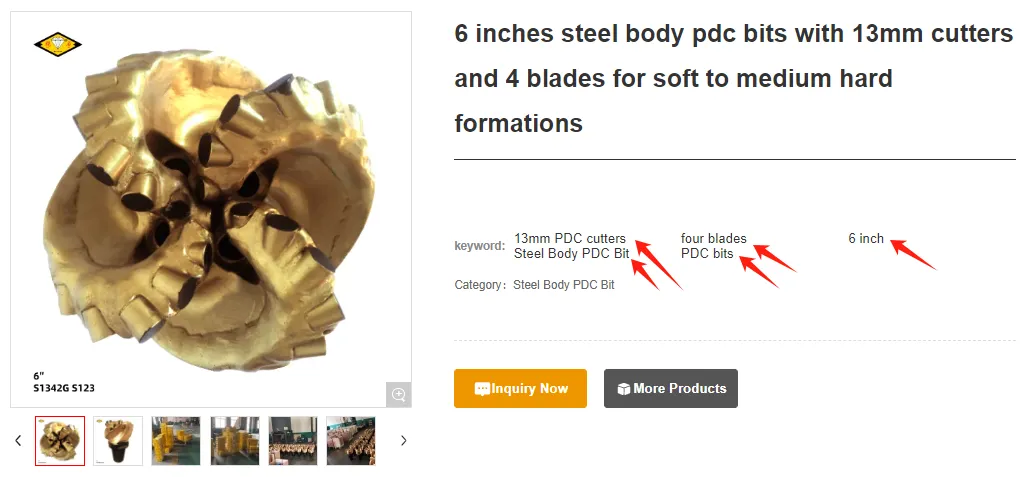

A: You can search for the products you need in the "Product" of the station based on information such as "drill bit size", "main cutting tooth specifications", "number of blades", etc.



Q: If you can't find the model you need? Do you know how to choose the desired model? How to customize products?

A:Please click CONTACT or MESSAGE to let us know your needs. We will contact you soon and provide professional advice in the following areas.

Bits type2 "-26" full size PDC bit (steel body bit / matrix body bit), tricone bit, core bit, hybrid bit, other drilling tools, etc
Bits parametersPDC bits (blade number, cutting tooth specifications, composite cutters  type, connection), tricone bit (tooth type (TCI/milled tooth), sealing form…)
Well informationLogging information, well depth and type (oil well, natural gas well, geothermal well, water well...)
Rock layer type

Limestone, dolomite, sandstone, clay rock, shale, etc

Rock hardness level 1-7, from soft to hard, or "extremely soft, medium soft, soft, medium hard, hard, extremely hard"

Geographic locationDomestic and foreign, specific sections, and transportation weight
Other technical questions-



Q: How long does it take for customized products to arrive?
A: Generally, it takes 3 days to complete the sample model and 15 days to ship during peak season, using land, sea, air, or other transportation methods.


Q: How to solve your technical doubts? How to inquire about a price?
A: Please contact email rszwt2023@ruishibit.com Or WeChat zom2077, we will arrange professional personnel as soon as possible to solve your technical doubts one by one and provide you with a price quotation.


Q: What accessories do our drill bit products have?
A: There will be relevant instructions provided after packing.


Q: What other related products or services does our company have?

A: Our company not only produces various types of PDC drill bits and tricone bits, but also manufactures hydraulic oscillators, roller cone hole openers, engineering palm films, rotary drilling tools, downhole motor and diamond wire drawing die blanks. If you have any other industry related questions, we will do our best to answer them for you.

……



Company Qualification



Hebei Ruishi Bits Manufacturing Co., Ltd. established in 1990 is a long-term first tier supplier of CNPC, Sinopec, and CNOOC.

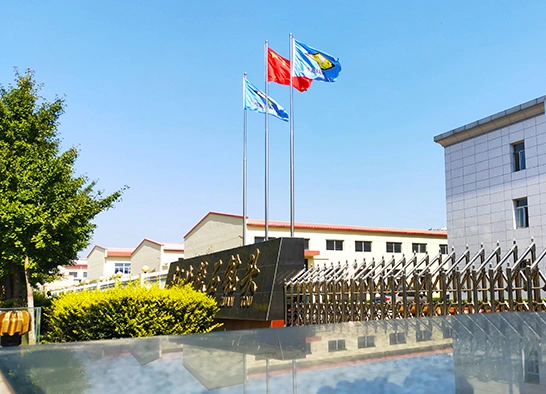

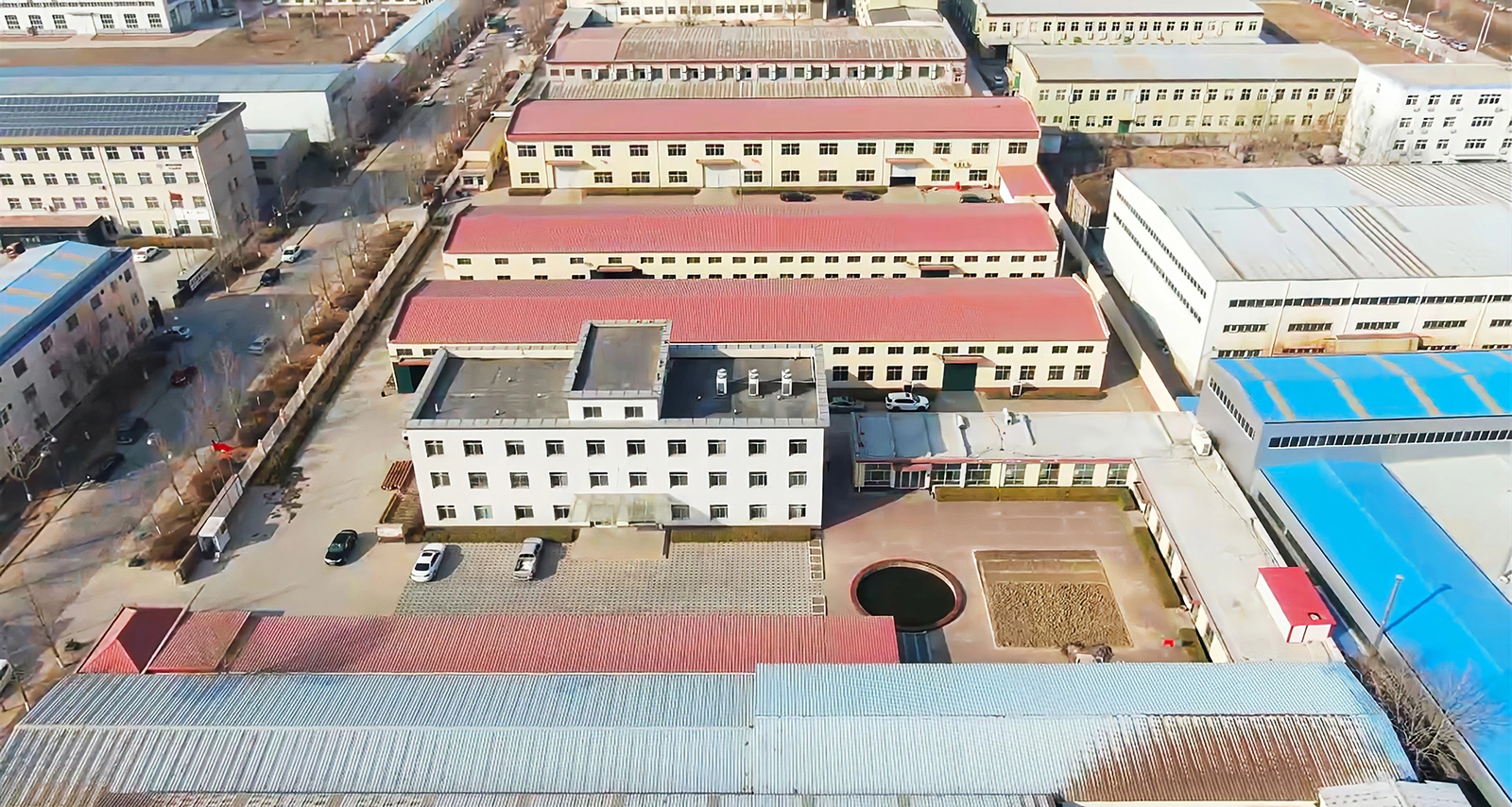

Outdoor scene

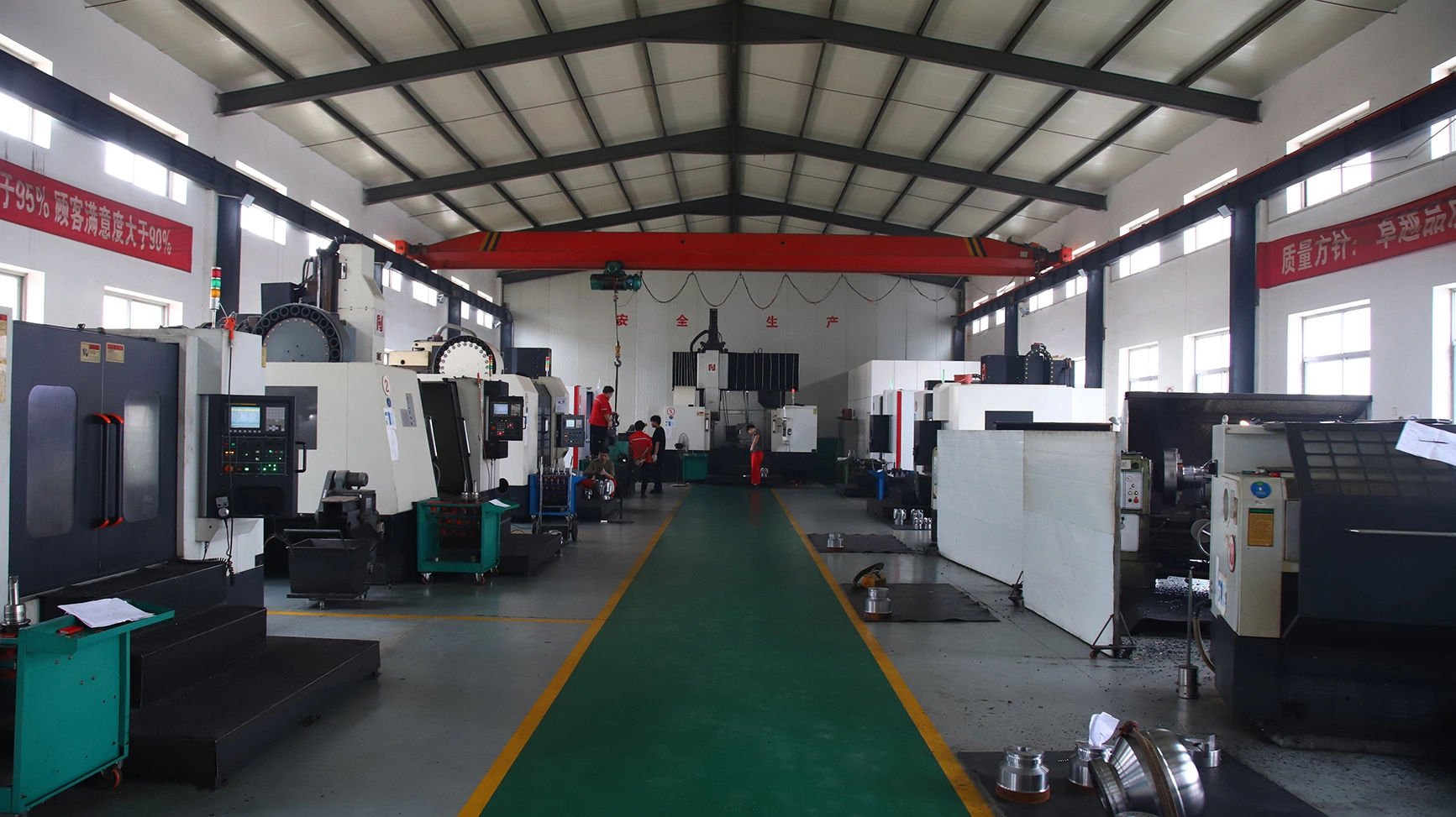

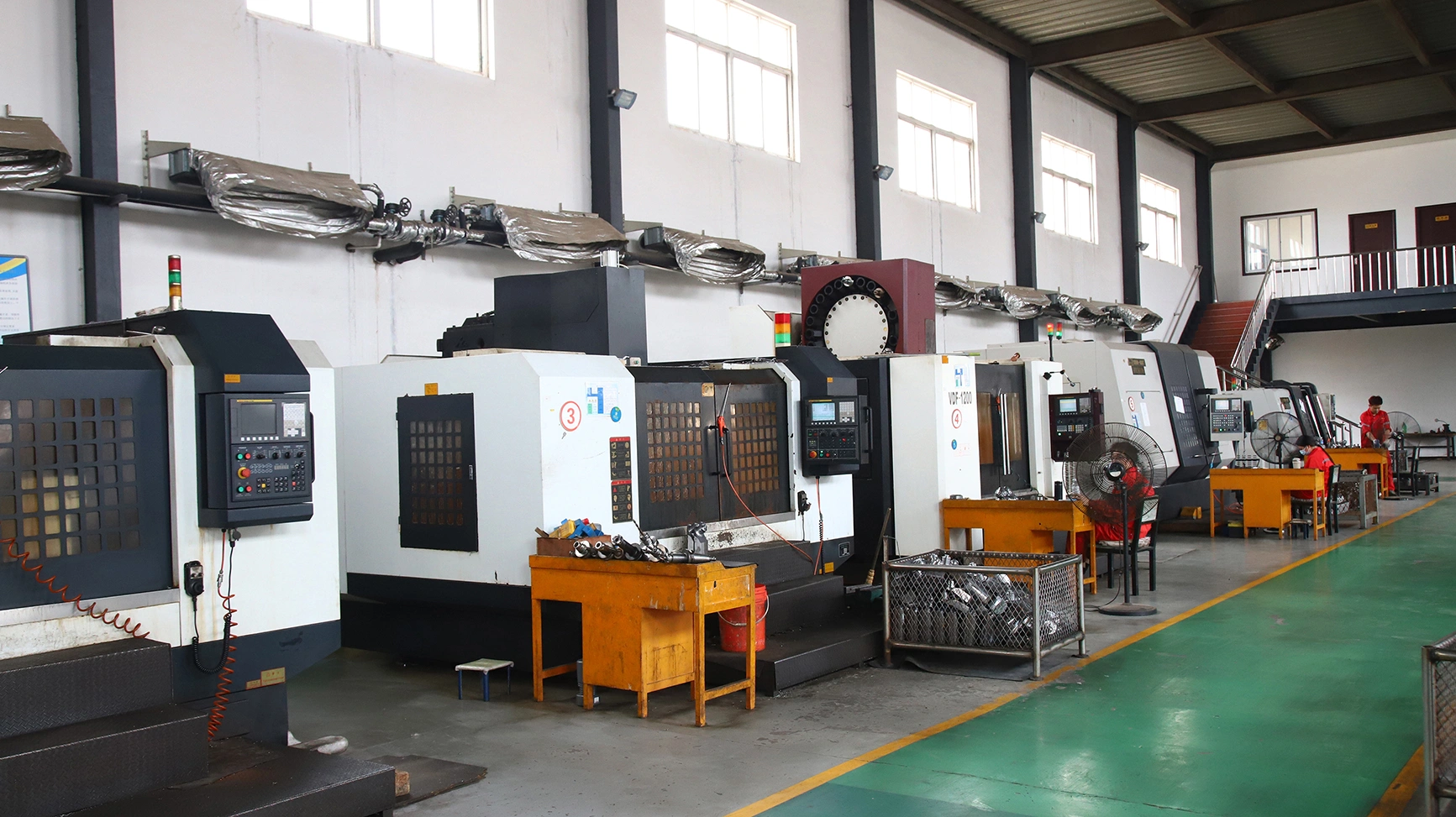

Plants

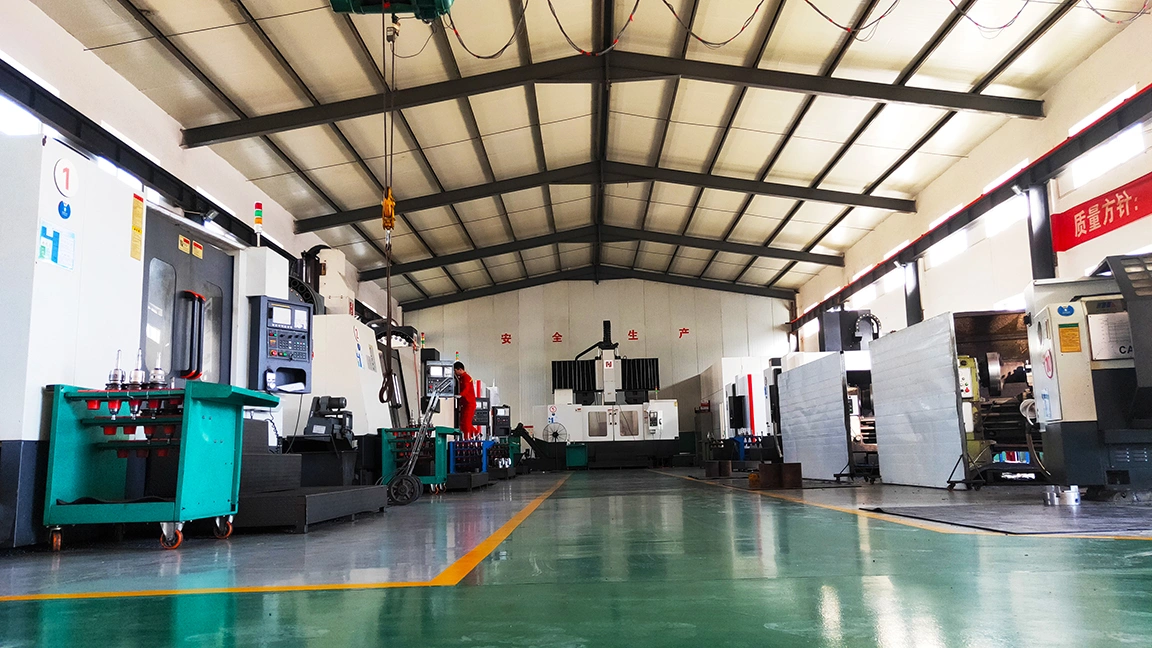

PDC bits production

Tricone bits production

We have a group of technical experts who have been engaged in drill bit design for more than 30 years, advanced five axis machining centers, and a large number of CNC machine tools, which can produce 2 "-26" full model PDC bits, various types of tricone bits, core bits, composite drill bits, hydraulic oscillators, roller cone hole openers, engineering palm films, rotary drilling tools, downhole motor and diamond wire drawing die blanks, which can be customized according to customers' needs.


We strictly adhere to the ISO9001 quality management system, ISO14001 environmental management system, and ISO45001 occupational health and safety management system in our enterprise operations, and strictly implement the API-7-1 quality management standard in the production process, whose details on the "Honor" page.

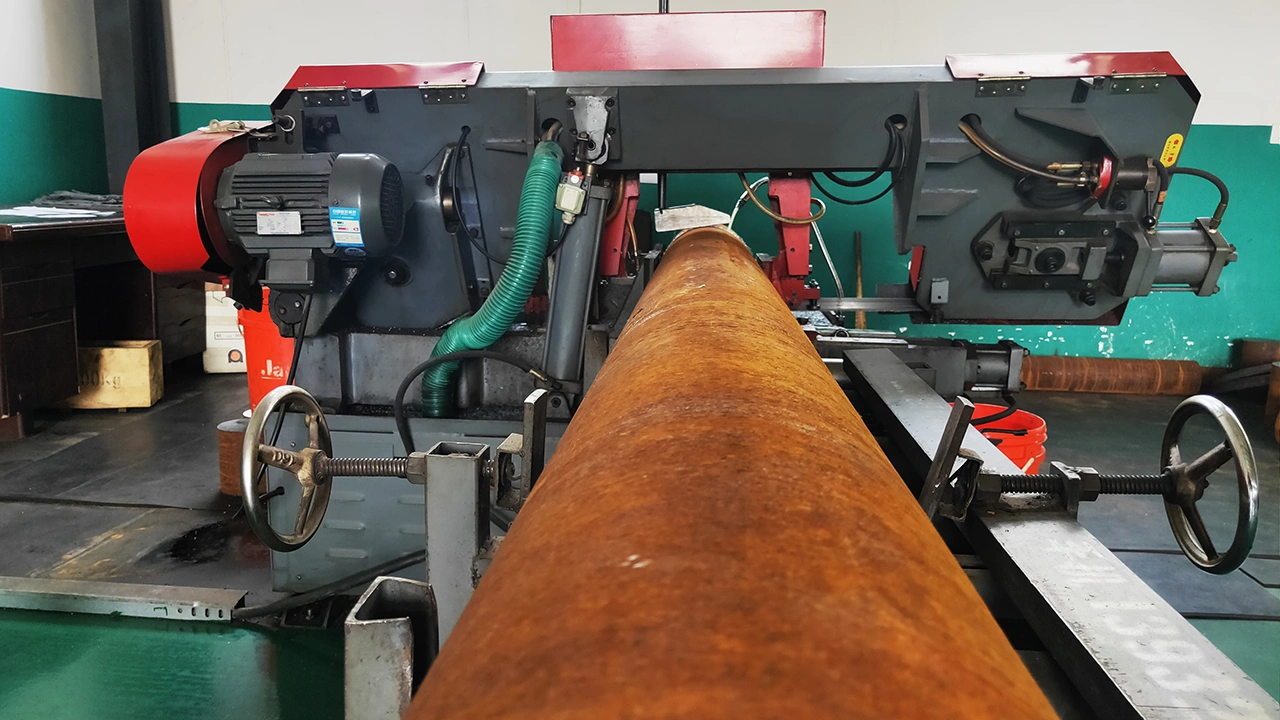

Blanking, Selected material 42CrMo

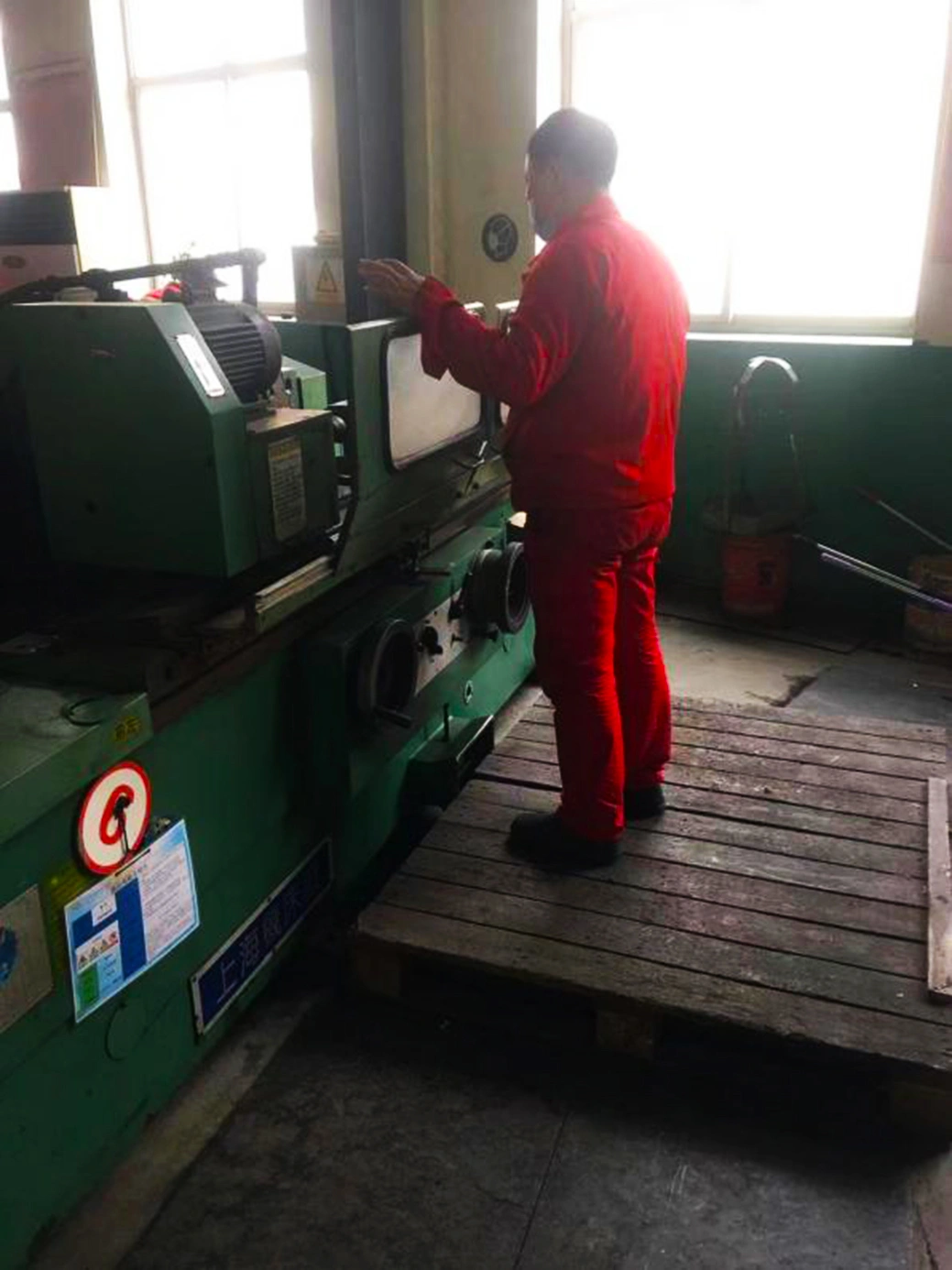

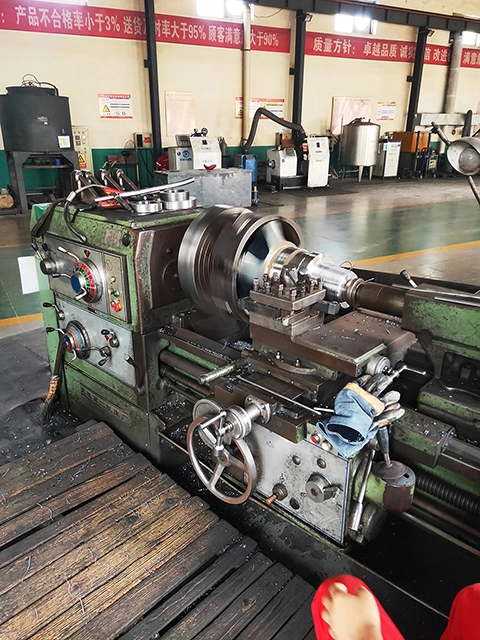

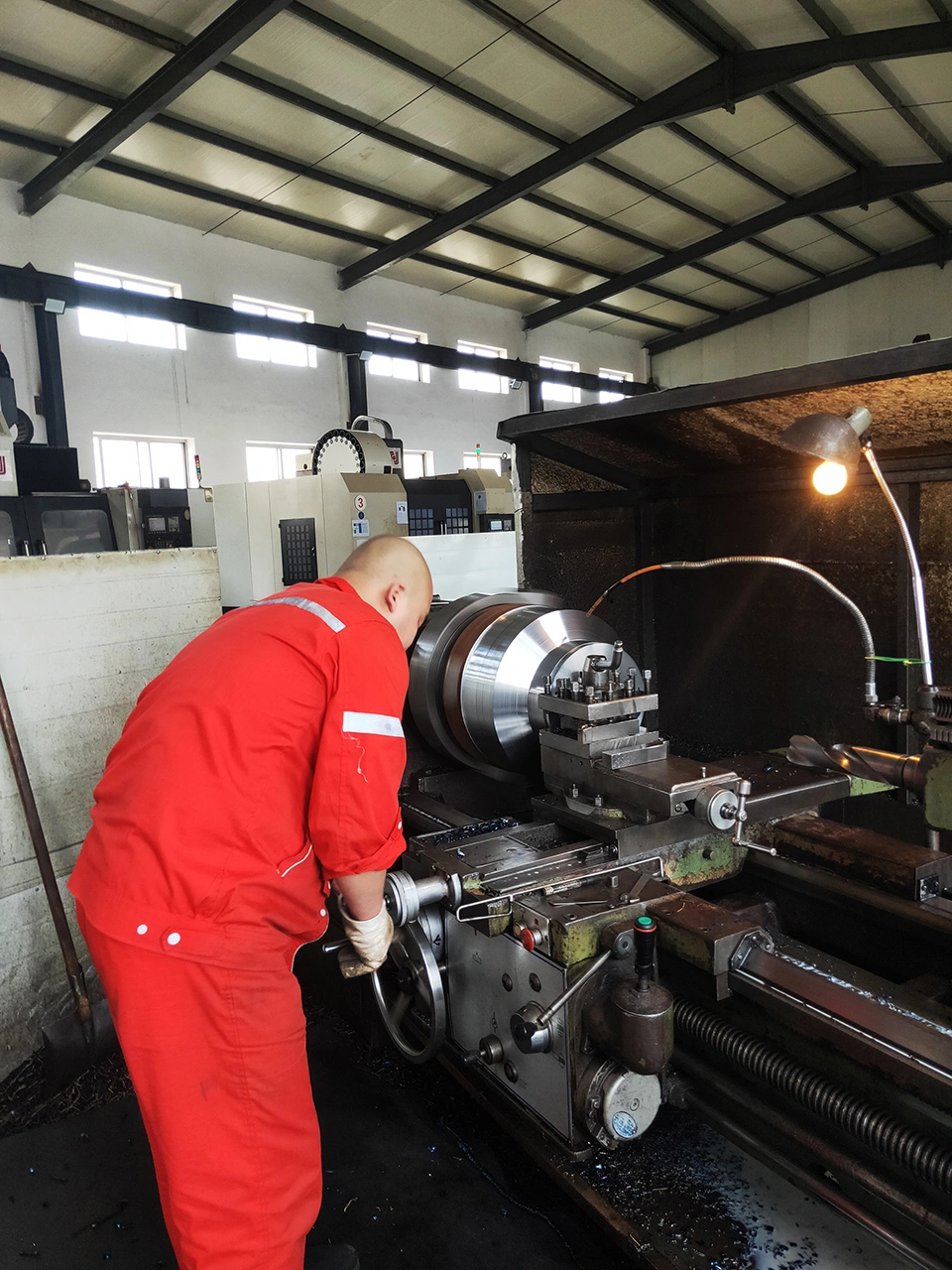

Rough turn, Within the error range, accurately measure the diameter

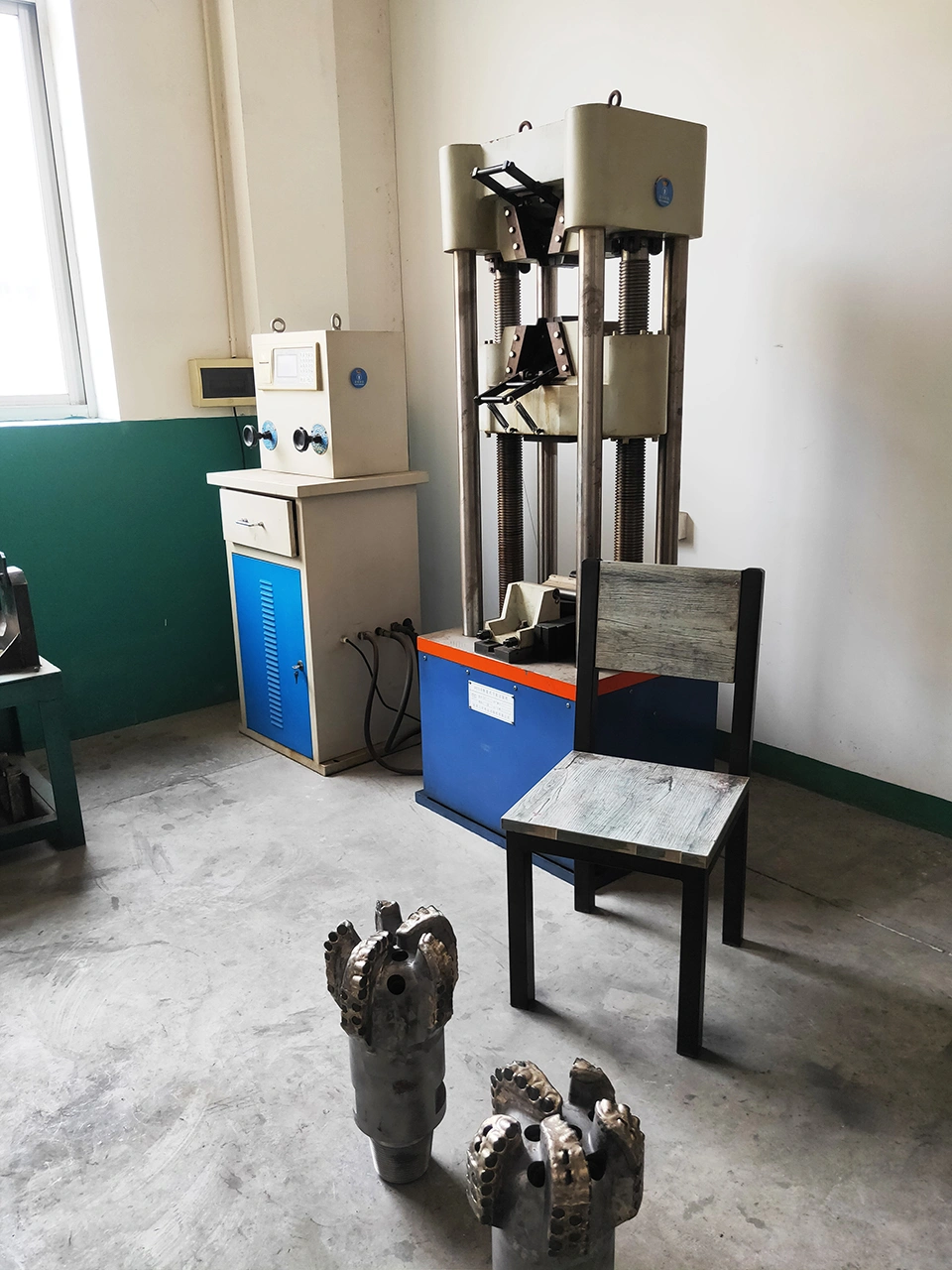

Nondestructive detection

CNC precision turning the crown profile of bit

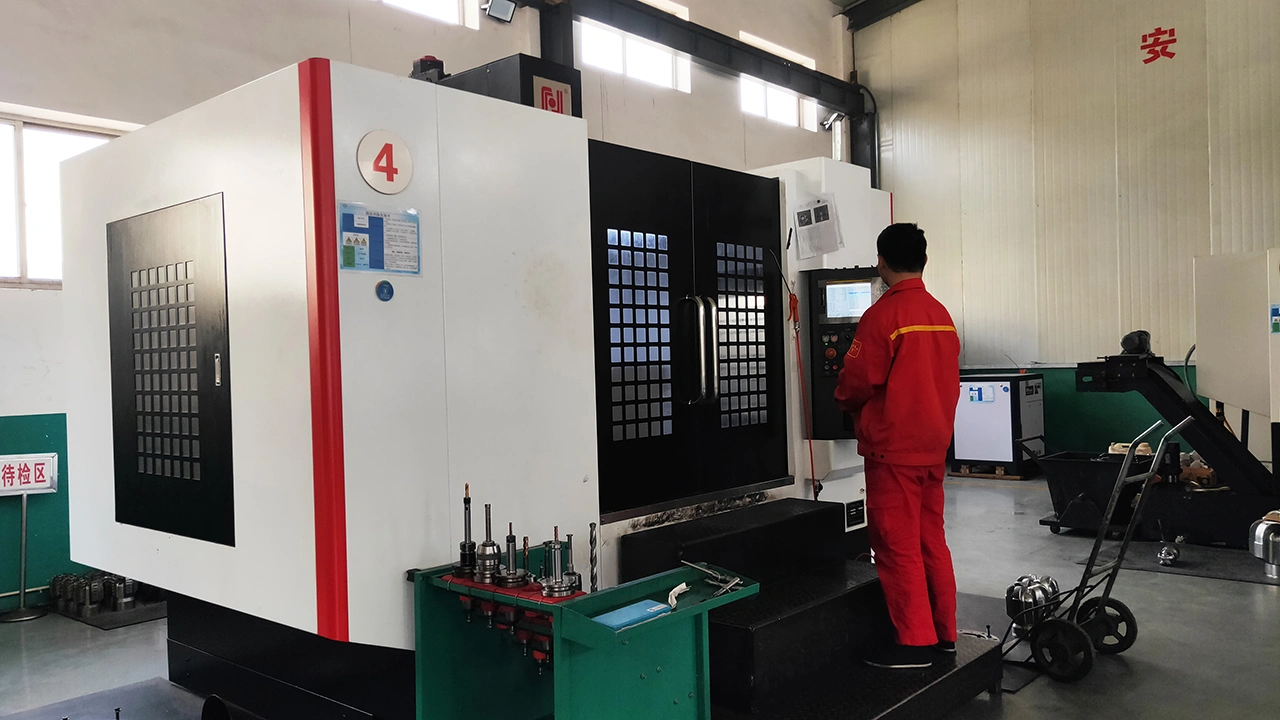

Use the machining center to mill the bit blade and channel groove

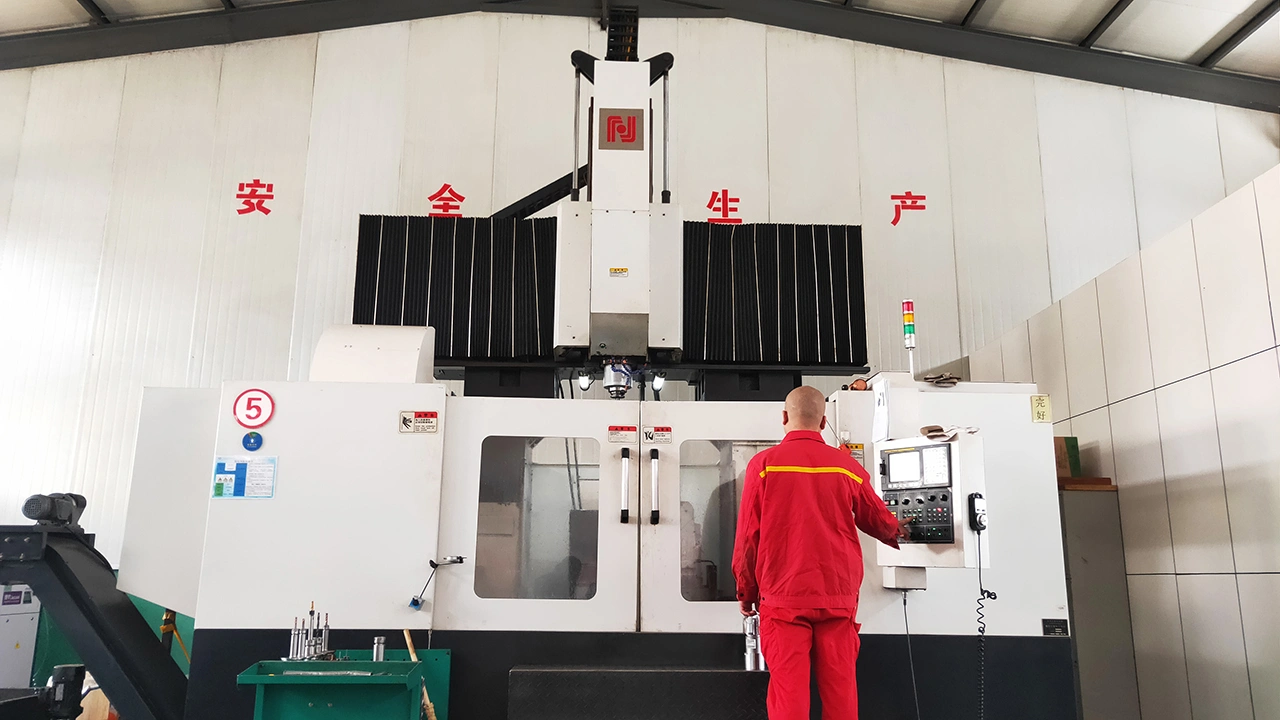

Use Five axis machining center to Drill and mill tooth cavity holes and nozzle holes

Bit body machining, assembly joint

Bit body and joint butt welding

External circular machining of bit body and joint butt welding

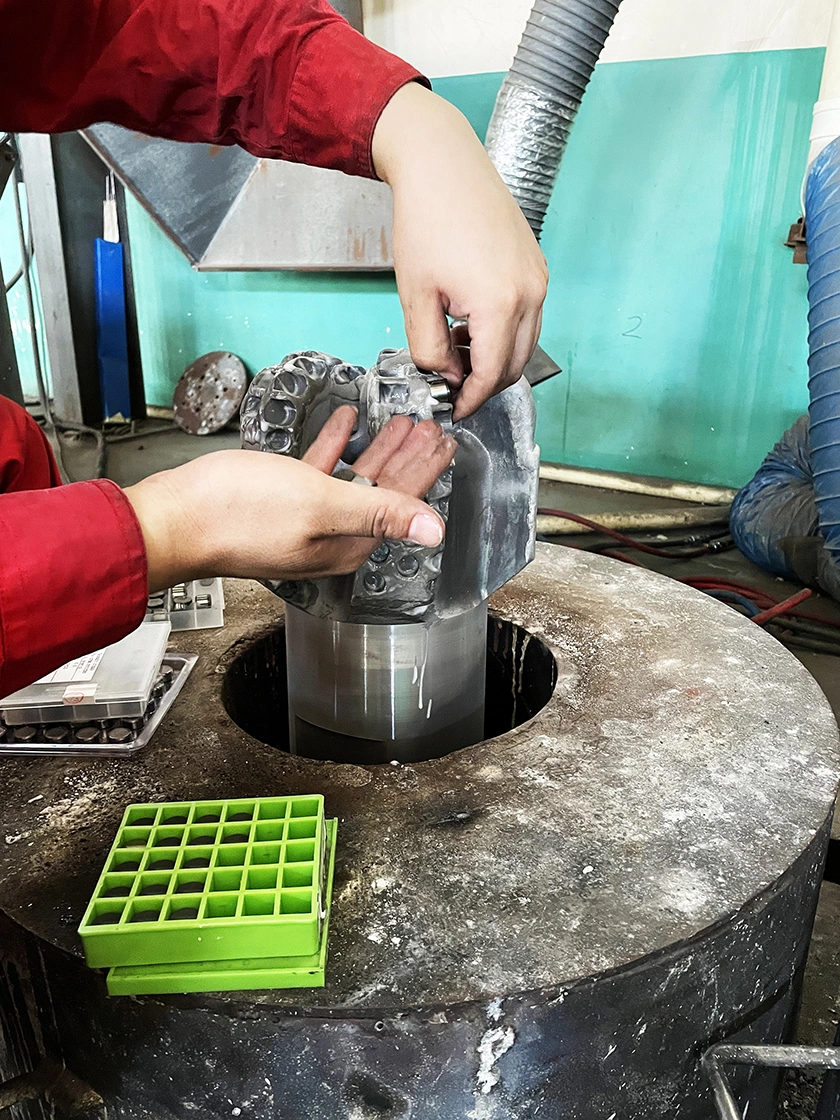

Clean bit tooth cavities, replace each piece with graphite and ensure that it passes the trial assembly

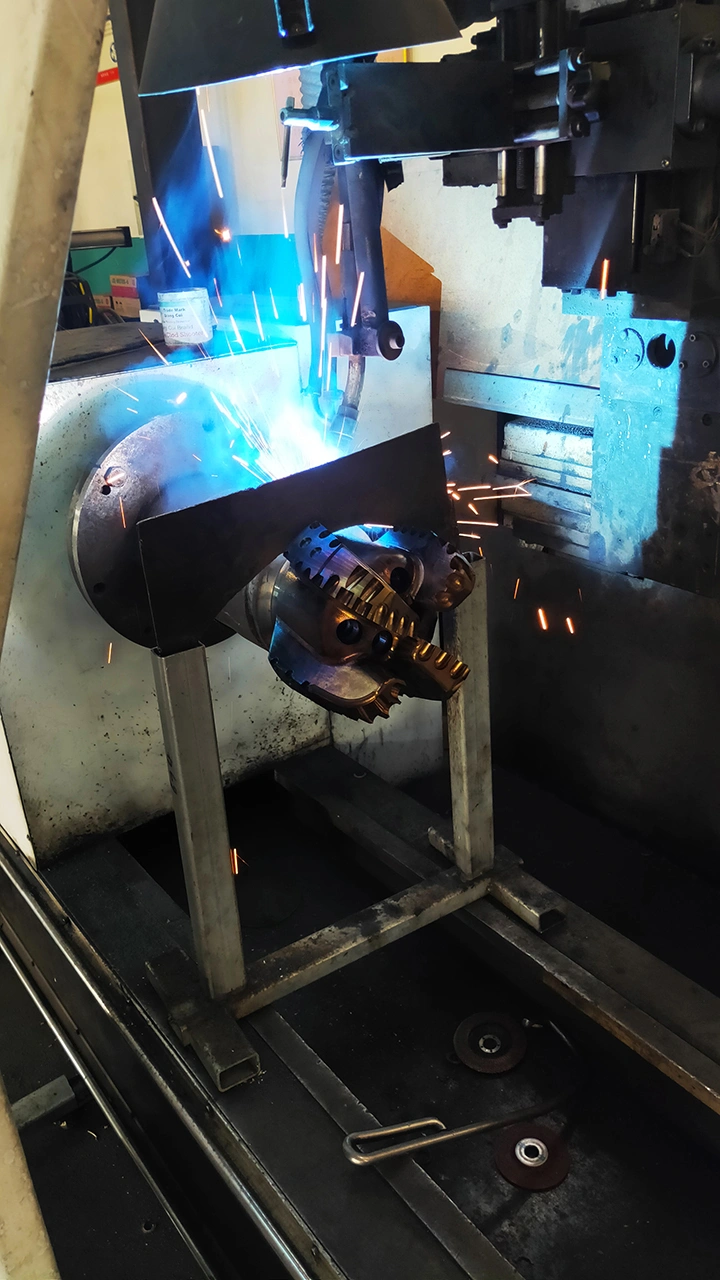

Surface Strength Hardening of Drill Crown Blade, Weld the surface of the drill bit crown blade

Clean bit tooth hole and nozzle hole, polishing and sandblasting

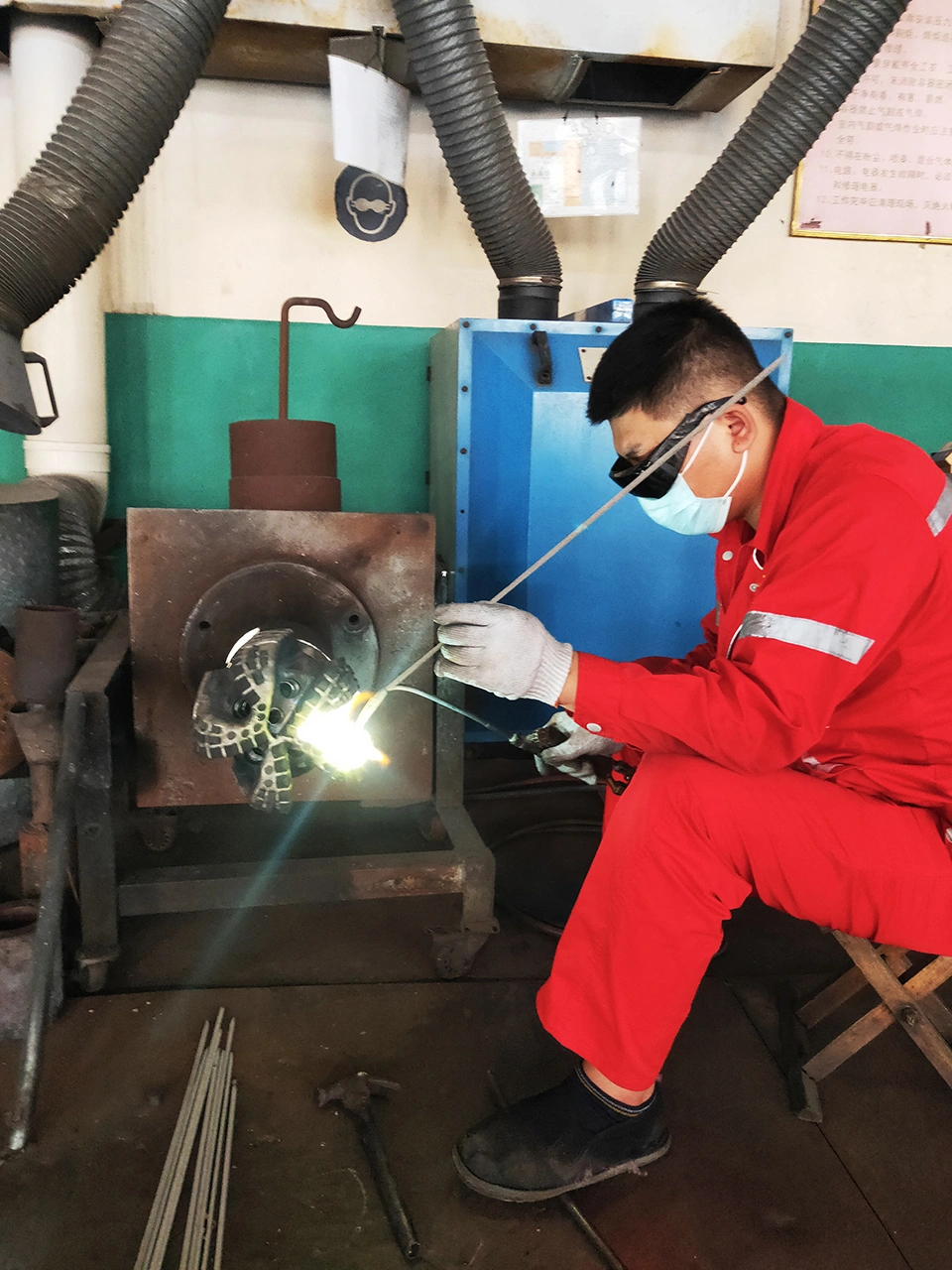

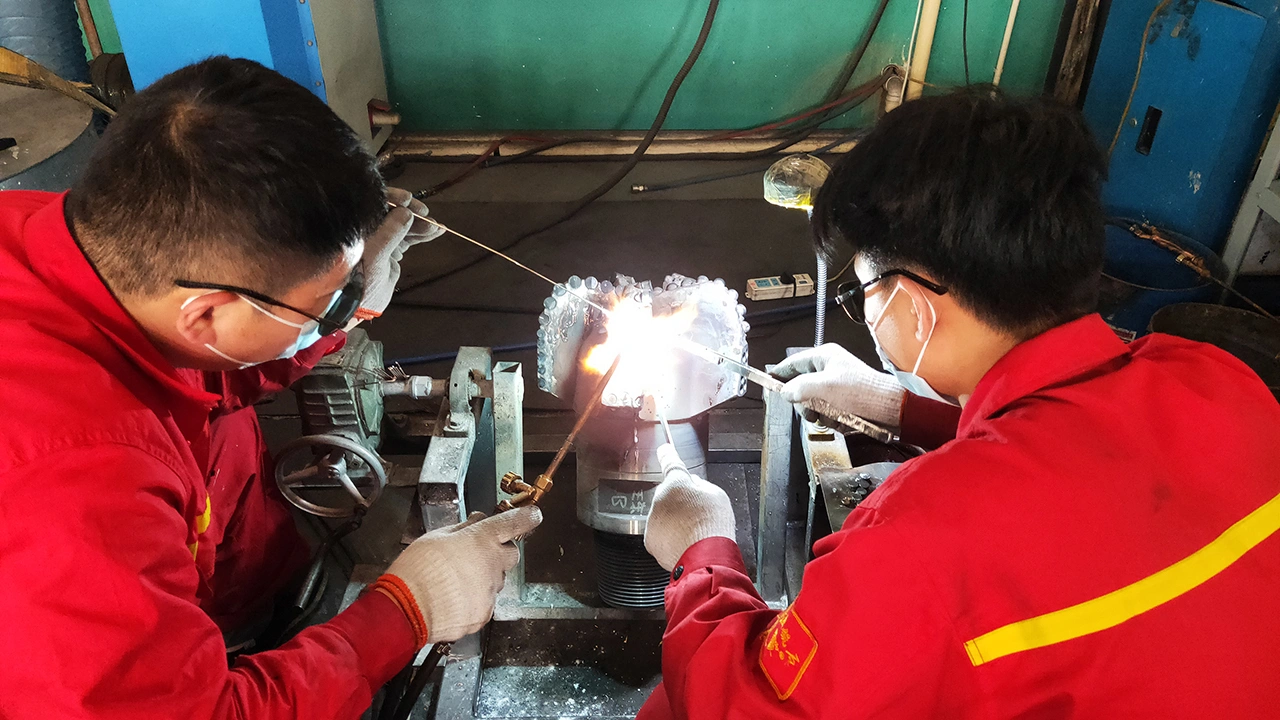

Braze, check the brazing condition of each tooth cavity to ensure that the fiber welding layer is wet, penetrating, substantial, and full, finally nondestructive detection

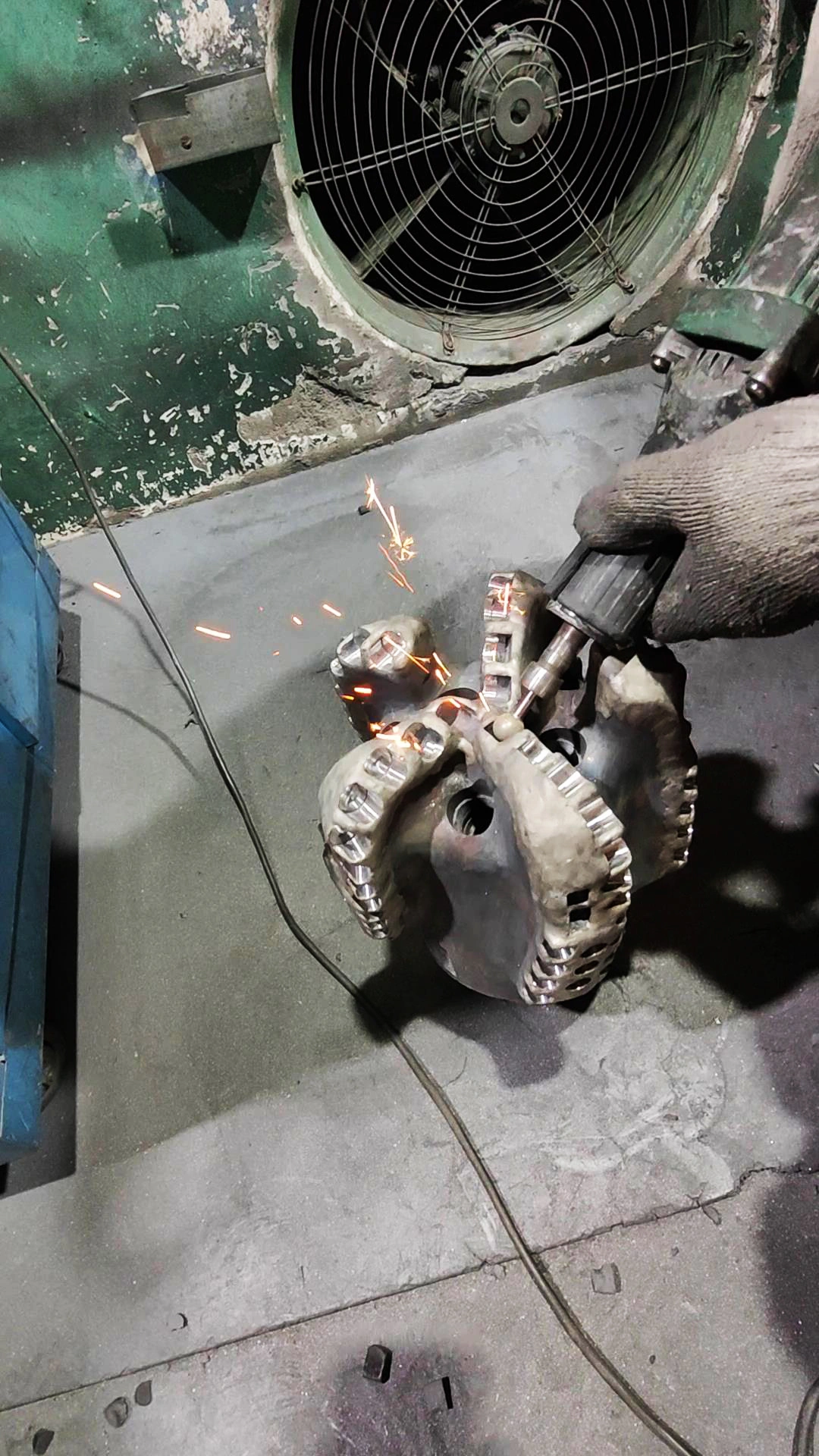

Clean bit, grind the gauge

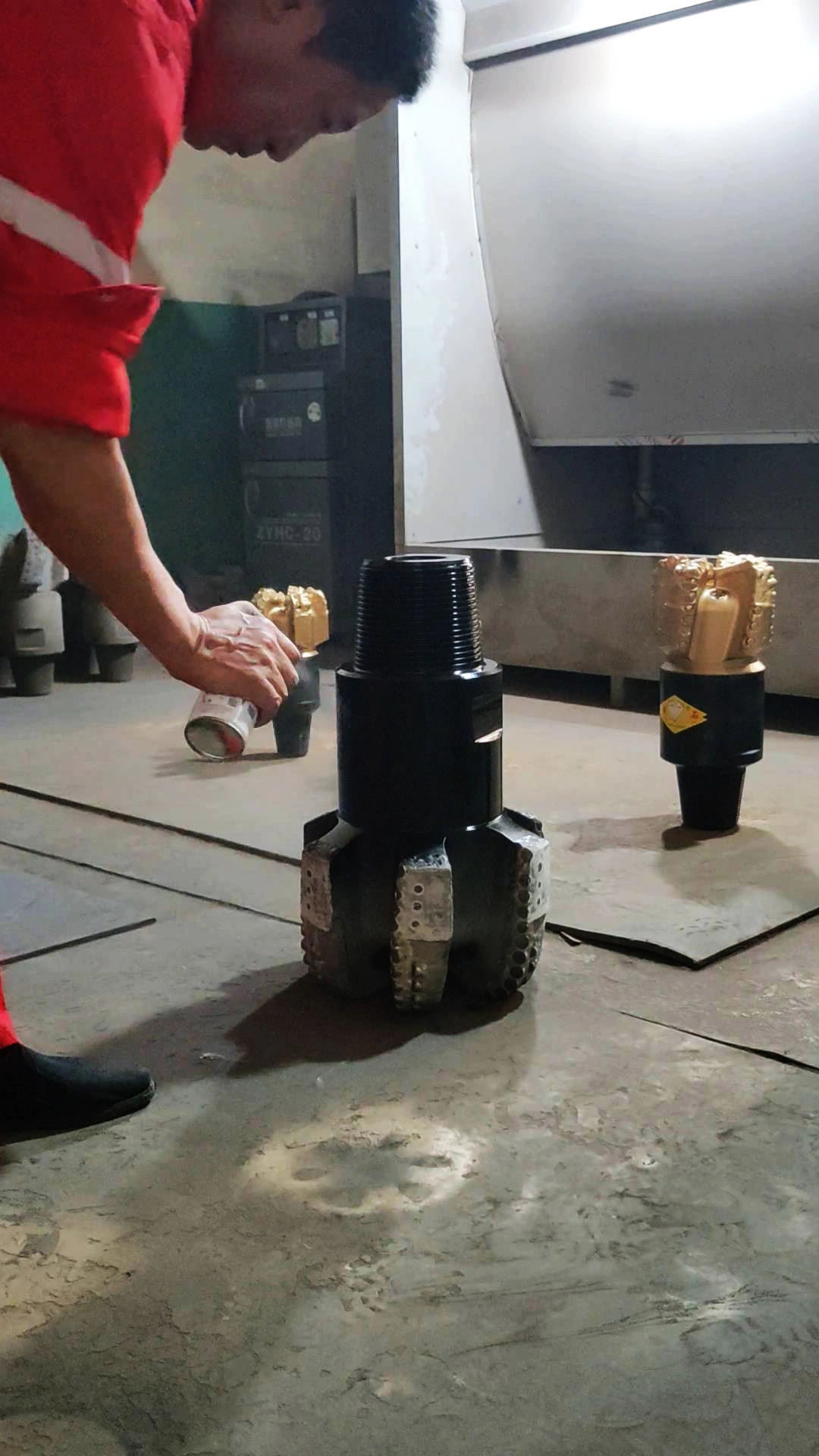

Bit embellish, painted evenly the surface of the bit, and the steel grade shall be marked and protected according to the identification regulations

Packaging, The bit, factory data, attachments, and markings are consistent and accurately proofread



The company is equipped with a dedicated fleet, located in a location with developed transportation, close to the Beijing Kowloon Railway and the Daguang Expressway, and the Jinbao South Line crosses east-west. The sample molding is completed in 3 days, and the peak season shipment can arrive on the 15th.



Our drill bits have undergone 30 years of rigorous research and development, and have received a high praise rate of over 99% from customers.



Inspect

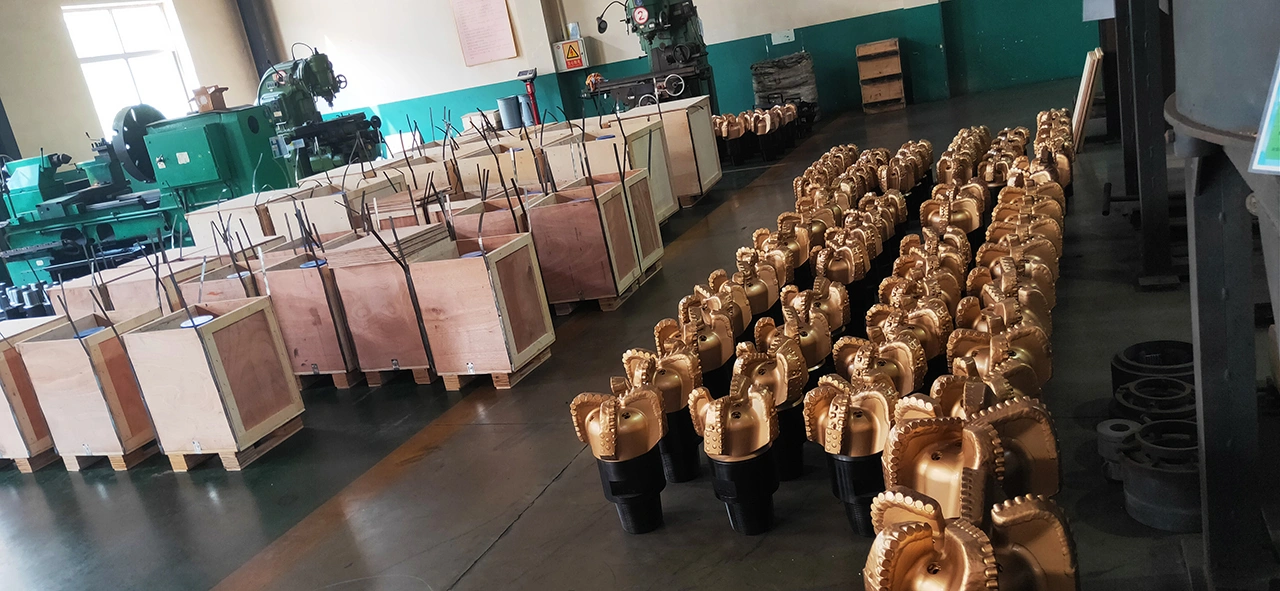

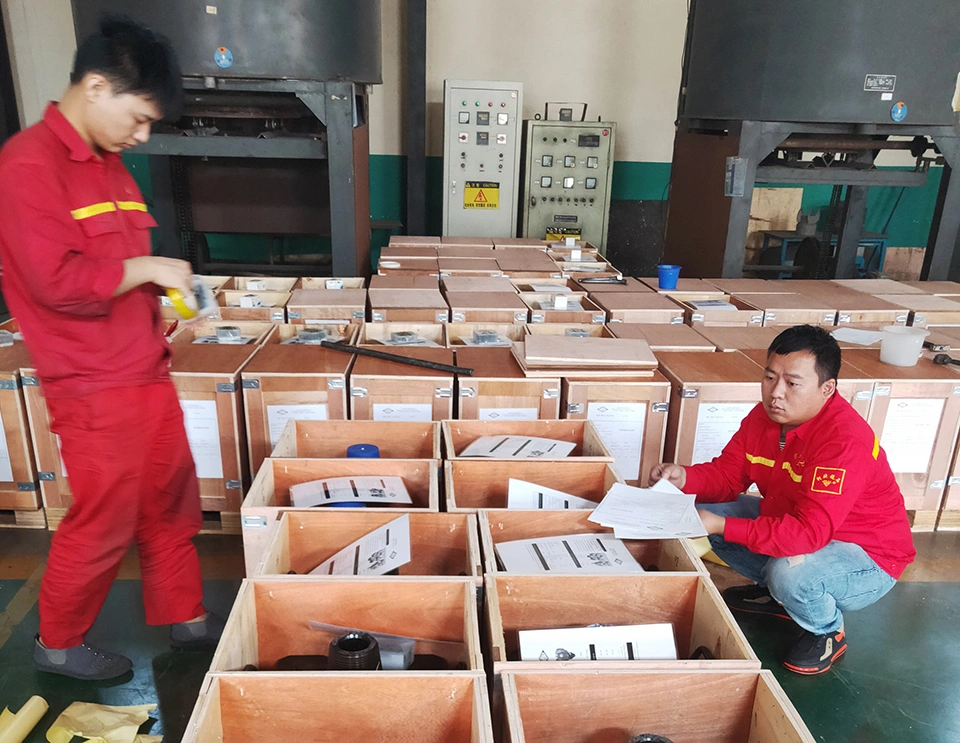

Packing

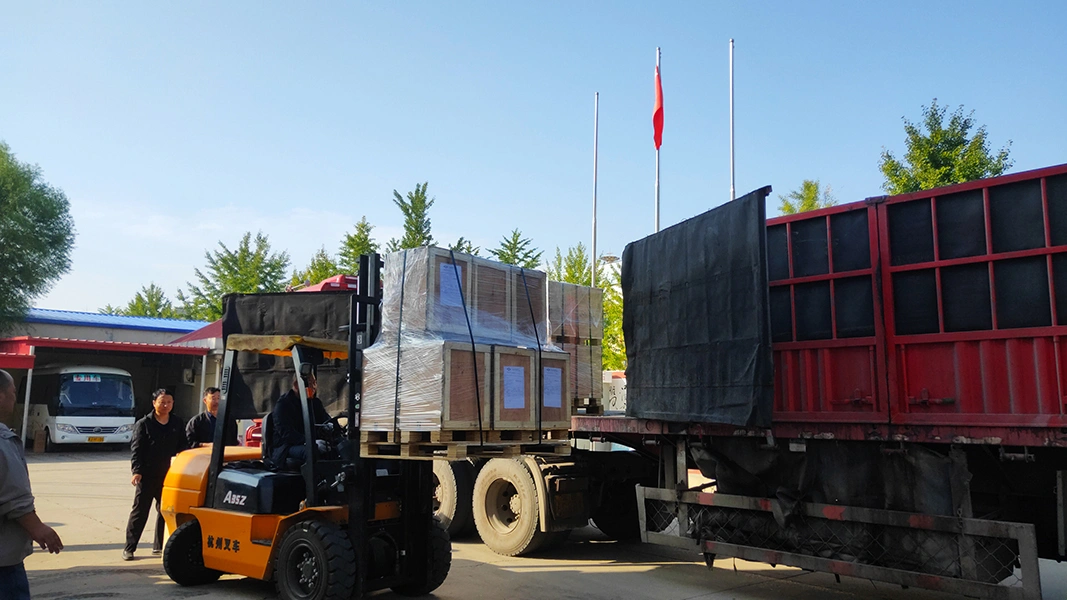

Loading

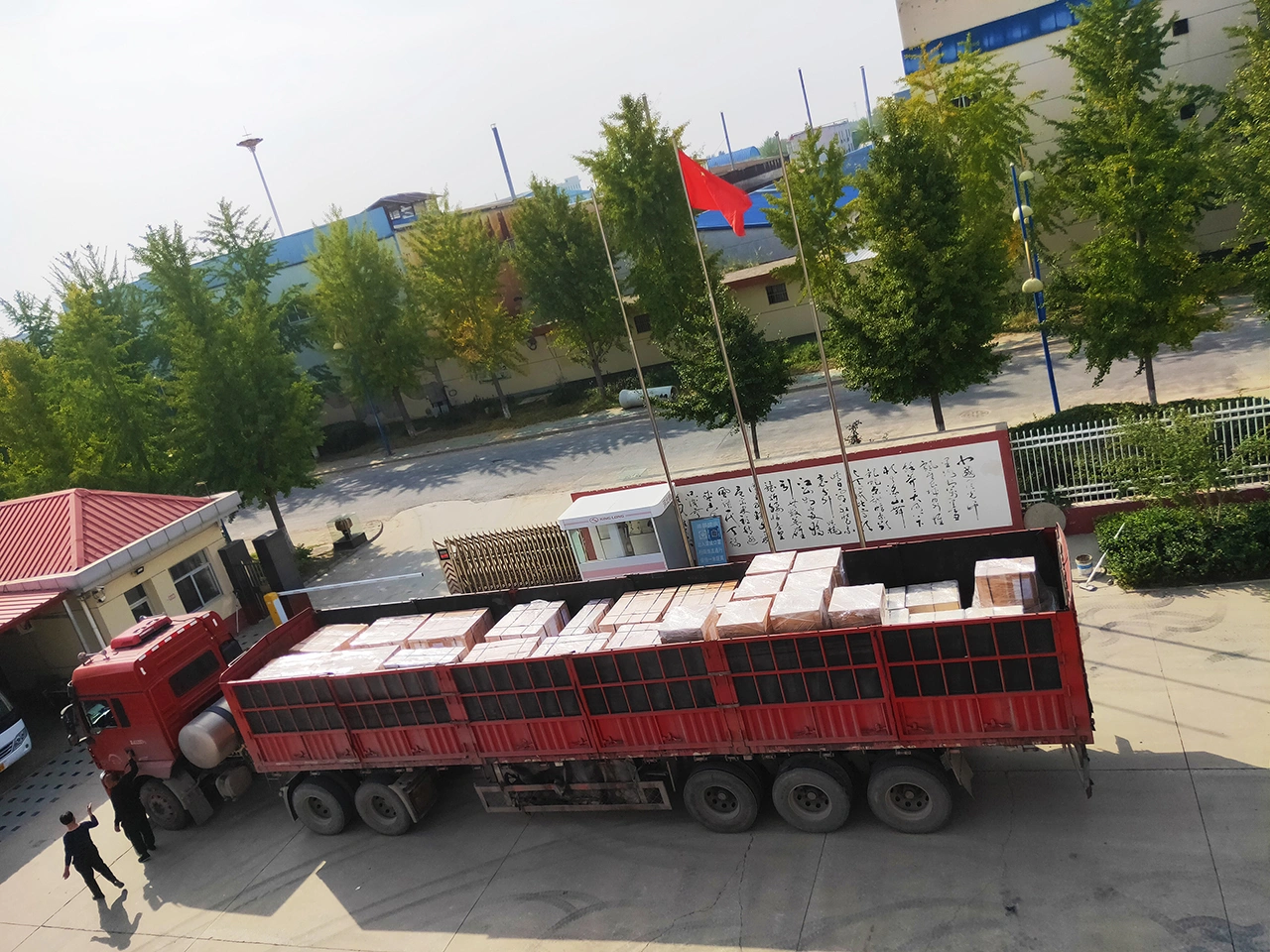

Transport

Ruishi's products are widely used in major oil fields such as Tarim, Tuha, Changqing, Dagang, Sichuan, Zhongyuan, Jidong, and North China. Ruishi has also established long-term strategic partnerships with these oil fields.



Our product quality and timely and thoughtful service stability have been highly recognized by customers. The company's products have been widely exported to countries and regions such as North America, the Middle East, and Russia.

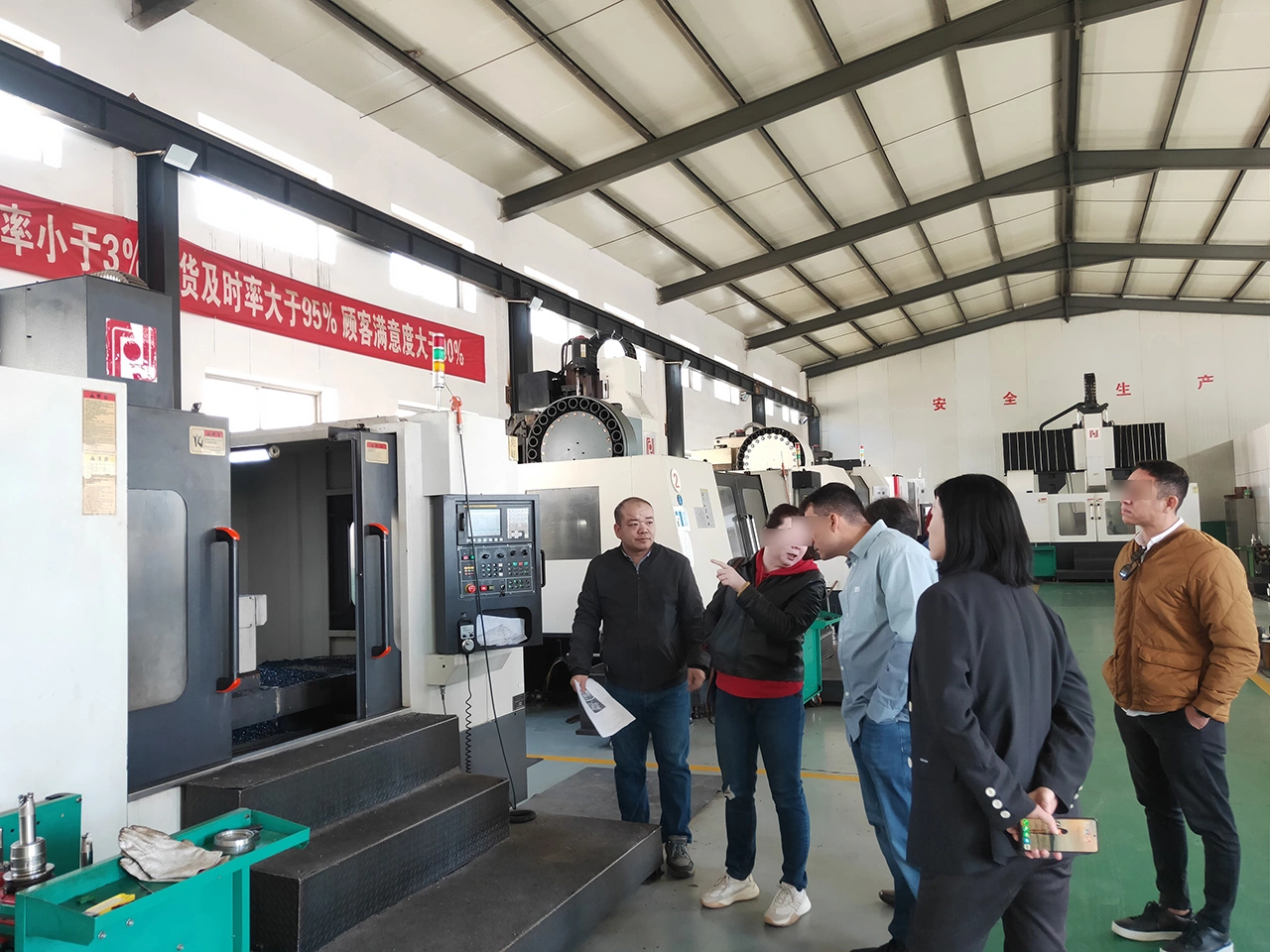

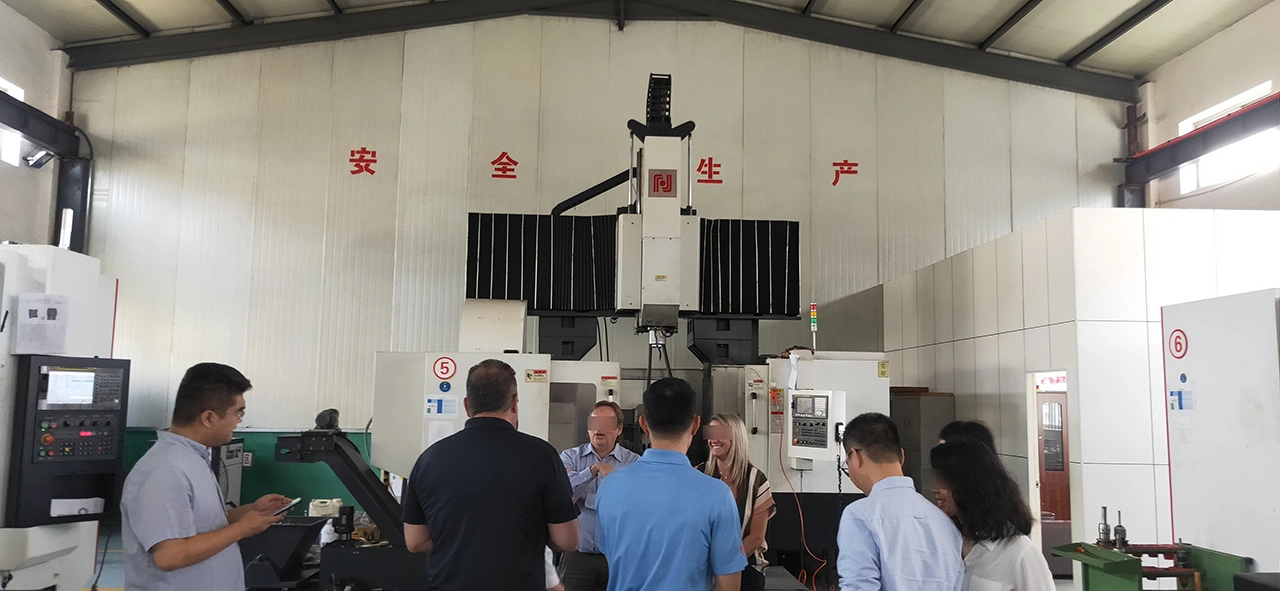

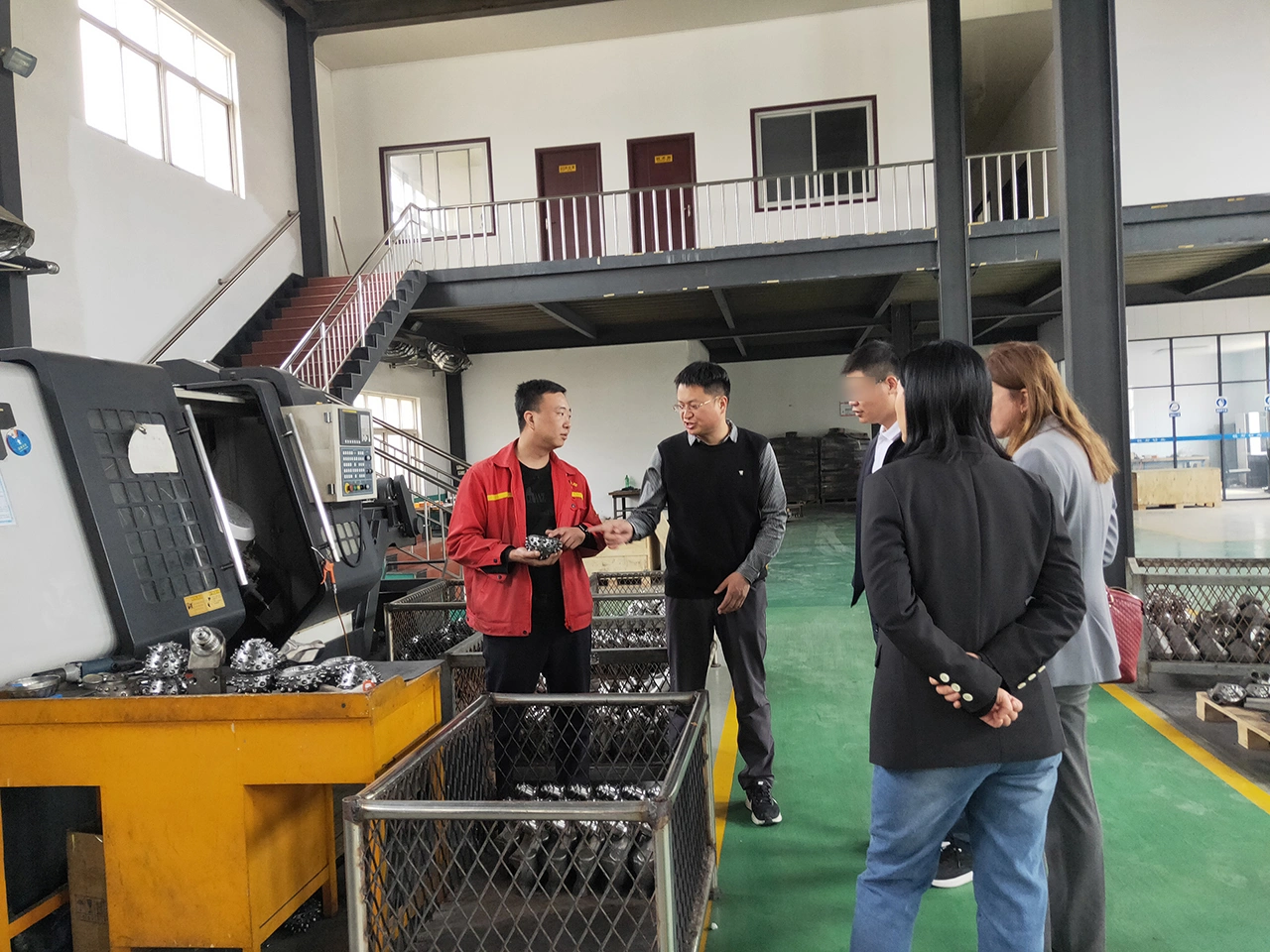

American customers’ inspection

Russian customers’ inspection

Brazilian customers’ inspection

Brazilian customers’ inspection

2024 Russian NEFTGAZ

2024 Iran Oil and Gas Exhibition

2025 Russian NEFTGAZ

2025 OTC Houston USA
