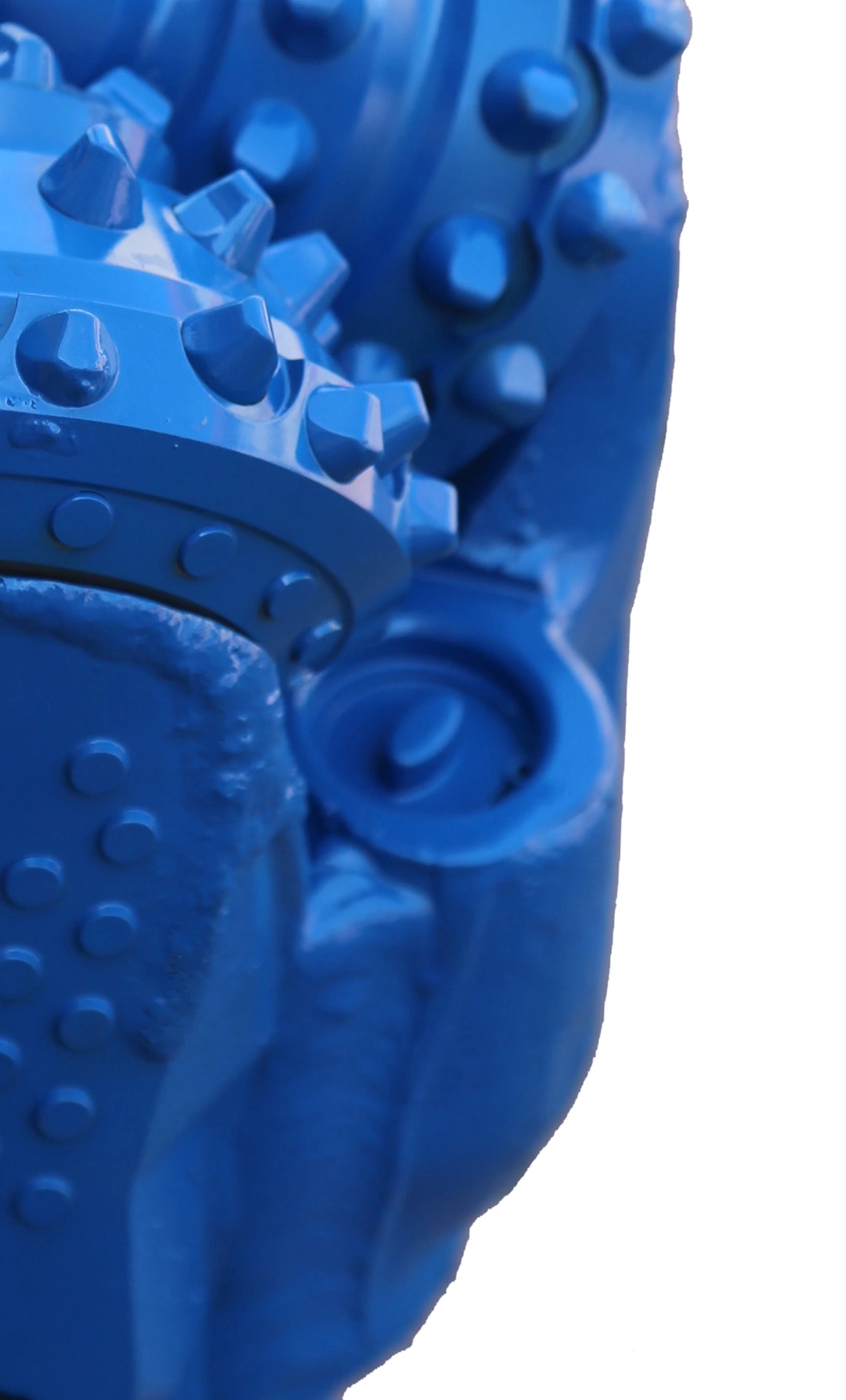

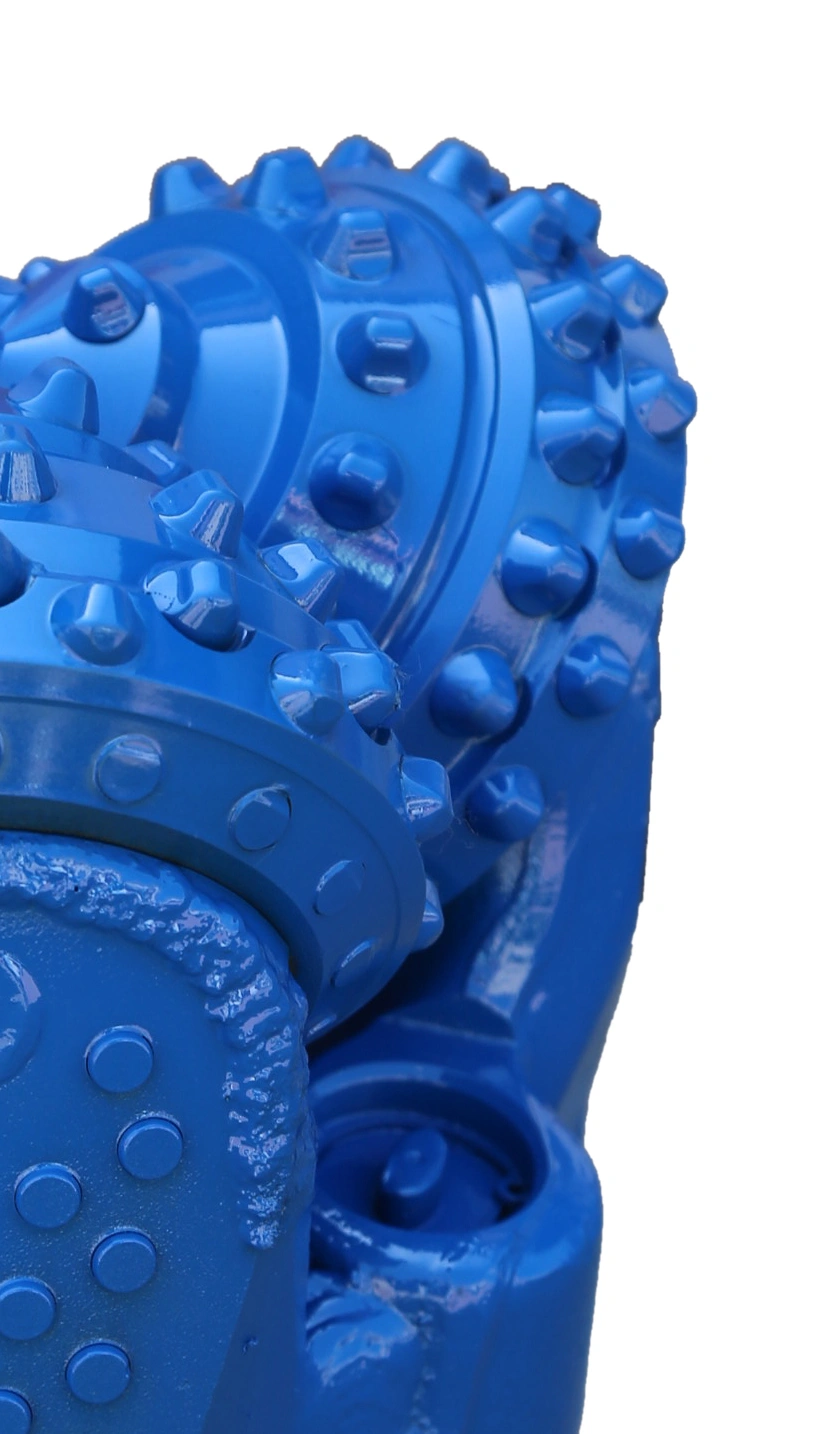

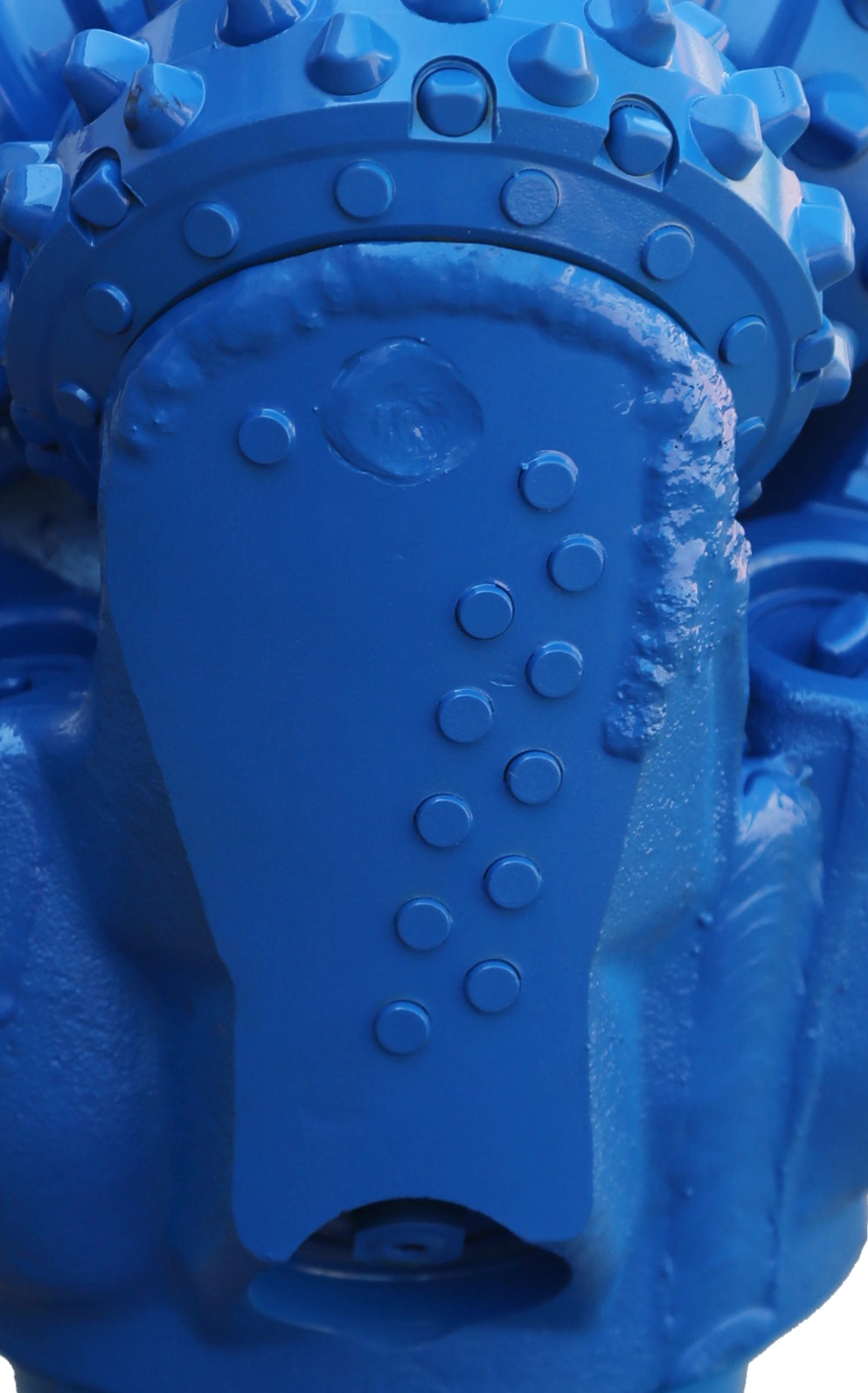

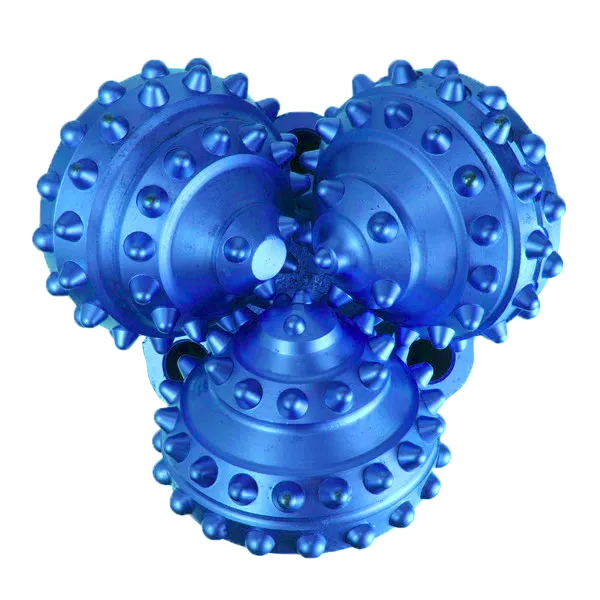

Tricone mineral bits IADC 532 for soft formations
Category：
Tricone Bit
Product details
This series of drill bits is mainly used for mining and drilling coal mine vents.

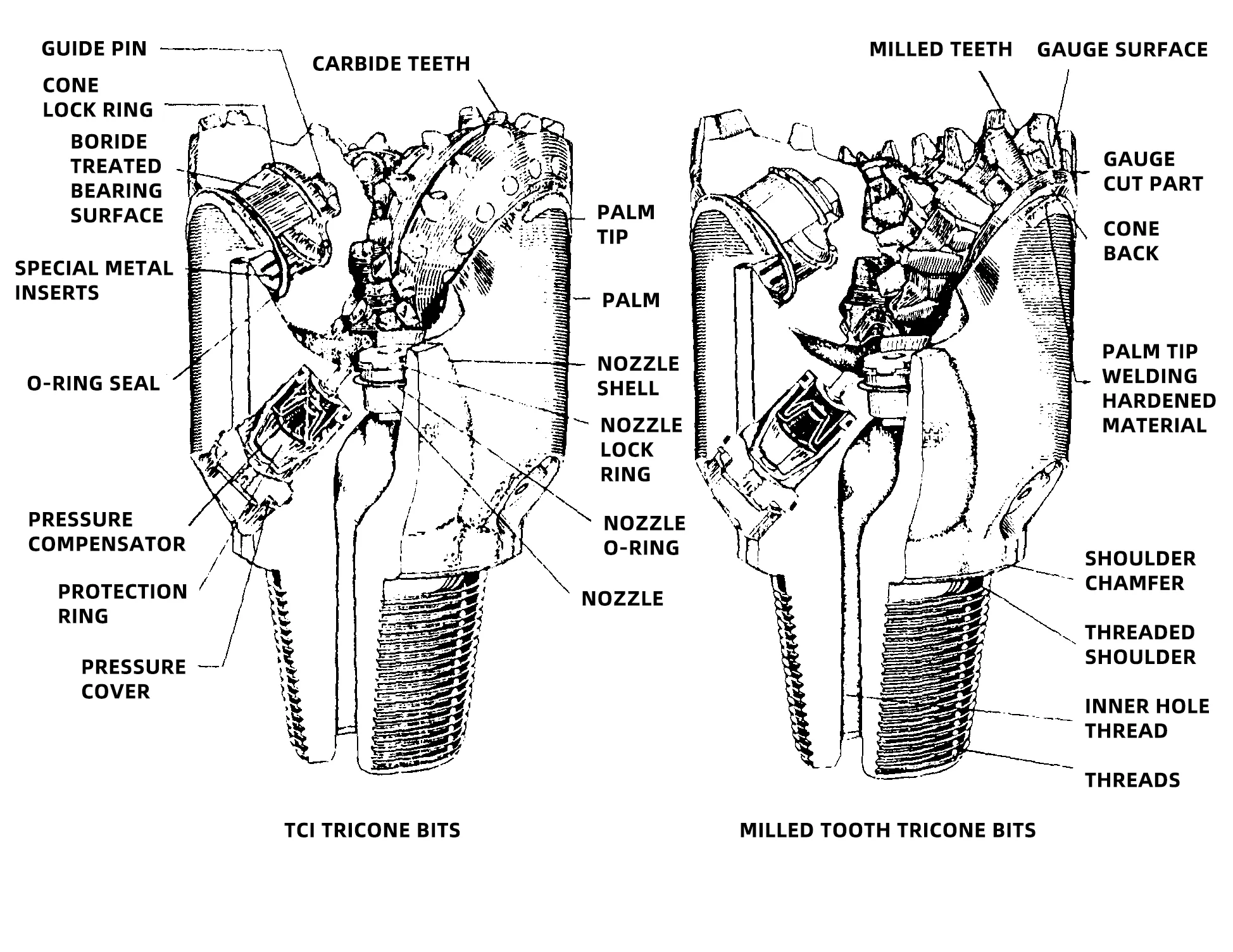

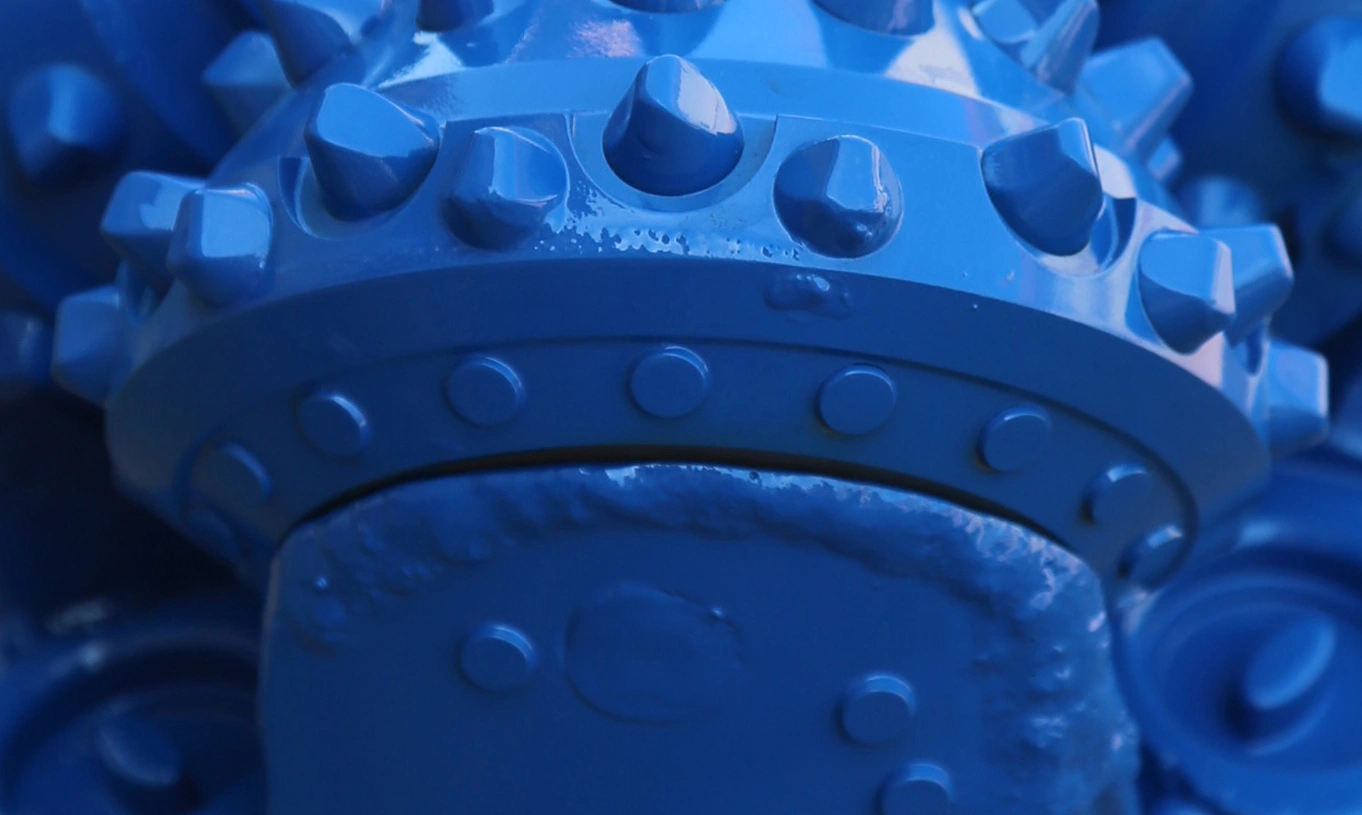

This series is a rolling bearing with teeth, air cooling, and clean sealing. The system consists of five bearings: roller, steel ball, two thrust, sliding (or roller), and one thrust. The bearing surface is embedded with anti-wear alloy. This series of products is widely used for perforation operations in metal and non-metal mining, with the advantages of high perforation efficiency.
Nomenclature of RUlSHI Oil Well TCl Tricone Bit Model
| IADC | 5 | 3 | 7 |
| IADC Code | 1, 2, 3: Milled teeth bits from very soft to hard formations 4,5,6,7,8: TCl bits,from very soft to hard formations |
1, 2, 3, 4 from very soft to very hard formations,bits differ in number and size of cutters/inserts |
1:Standard open roller bearing 2:Standard open roller bearing,air-cooled 3:Standard open roller bearing with gauge protection 4:Sealed roller bearing 5:Sealed roller bearing with gauge protection 6:Sealed friction bearing 7:Sealed friction bearing with gauge protection |
BITS SPECIFICATIONS
| IADC CODE | 532 |
| RecommendedRPM(r/min) | 110-65 |
| RecommendedwOB (KN/mm) | 0.5-0.8 |
APPLICABLEFORMATIONS
Soft formations with low compressive strength and high drillability
Such as mudstone、gypsum、salt rock、soft limestone，etc
