Ruishi diamond wire drawing die blank is made by sintering diamond micro powder under various metal (including cobalt) catalysts using ultra-high temperature and ultra-high pressure processes. During the sintering process, high-strength diamond bonds are formed between diamond microcrystals, which strongly bind diamond micro powder particles together to form polycrystalline diamond (PDC). The diamond wire drawing die blank manufactured with this material has good toughness, wear resistance, thermal conductivity, hardness, and mechanical strength, and is suitable for drawing non-ferrous metals such as copper, aluminum, nickel, stainless steel, and various alloy wires.

This product is divided into two series, RS series and TRS series.

Among them, the RS series is divided into the RSH series and the RSR series. This specification of wire drawing die blank is suitable for various types of wire drawing applications, especially for wire drawing molds with high consumption due to its low price.

The TRS series is a wire drawing die supported by a hard alloy ring. Its characteristic is that the polycrystalline diamond core is tightly sintered with the hard alloy support ring to improve the crack resistance strength of the die blank. Therefore, this type of product can withstand high strength and high speed drawing.

Specification

Series Name	RUISHI Code	ADDMA Code	Dimension(mm)			MAX DIE^4 size (mm)	Avg.grain size(um)
			D	d	T		3	5	10	25	50
RSH series Drawing die blank with out outer ring（hexagon）	RSH2010	\	-	2.0	1.0	-	○	●	●	●	●
	RSH2510	D6	-	2.5	1.0	0.4	○	●	●	●	●
	RSH3215	D12	-	3.2	1.5	1.0	○	●	●	●	●
	RSH4020	\	-	4.0	2.0	1.3	○	●	●	●	●
	RSH5225	D15	-	5.2	2.5	1.5	○	●	●	●	●
	RSH5235	D18	-	5.2	3.5	2.0	○	●	●	●	●
	RSH6040	\	-	6.0	4.0	2.5	○	●	●	●	●
RSR series Drawing die blank with out outer ring（circular）	RSR2510	\	-	2.5	1.0	0.4	○	●	●	●	●
	RSR3110	D6	-	3.1	1.0	0.5	○	●	●	●	●
	RSR3115	D12	-	3.1	1.5	1.0	○	●	●	●	●
	RSR4020	\	-	4.0	2.0	1.3	○	●	●	●	●
	RSR5225	D15	-	5.2	2.5	1.5	○	●	●	●	●
	RSR5235	D18	-	5.2	3.5	2.0	○	●	●	●	●
	RSR8040	D21	-	8.0	4.0	3.0	○	●	●	●	●
	RSR9853	D24	-	9.8	5.3	4.0	○	●	●	●	●
TRS series Drawing die blank with cemented carbide outer ring（circular）	TRS4015	D12	8.12	4.0	1.5	1.0	○	●	●	●	●
	TRS4023	D15	8.12	4.0	2.3	1.8	○	●	●	●	●
	TRS4029	D18	8.12	4.0	2.9	2.3	○	●	●	●	●
	TRS7040	D21	13.65	7.0	4.0	3.5	○	●	●	●	●
	TRS7053	D24	13.65	7.0	5.3	4.6	○	●	●	●	●
	TRS13086	D27	24.13	13.0	8.6	5.8	-	-	●	●	●
	TRS130116	D30	24.13	13.0	11.6	7.6	-	-	●	●	●
	TRS150116	D31	24.13	15.0	11.6	-	-	-	●	●	●

Frequently Asked Questions

Q: What are the advantages of our company?

A: Our company integrates R&D and manufacturing. We are a bit manufacturer with over 30 years of experience in the industry, providing customers with efficient one-stop services including design and development, customized suggestions, manufacturing, direct sales, and after-sales support.

Q: If you can't find the model you need? Do you know how to choose the desired model? How to customize products?

A：Please click CONTACT or MESSAGE to let us know your needs. We will contact you soon and provide professional advice in the following areas.

Q: How long does it take for customized products to arrive?
A: Generally, it takes 3 days to complete the sample model and 15 days to ship during peak season, using land, sea, air, or other transportation methods.


Q: How to solve your technical doubts? How to inquire about a price?
A: Please contact email rszwt2023@ruishibit.com Or WeChat zom2077, we will arrange professional personnel as soon as possible to solve your technical doubts one by one and provide you with a price quotation.


Q: What accessories do our drill bit products have?
A: There will be relevant instructions provided after packing.


Q: What other related products or services does our company have?

A: Our company not only produces various types of PDC drill bits and tricone bits, but also manufactures hydraulic oscillators, roller cone hole openers, engineering palm films, rotary drilling tools, downhole motor and diamond wire drawing die blanks. If you have any other industry related questions, we will do our best to answer them for you.

……

Company Qualification

Hebei Ruishi Bits Manufacturing Co., Ltd. established in 1990 is a long-term first tier supplier of CNPC, Sinopec, and CNOOC.

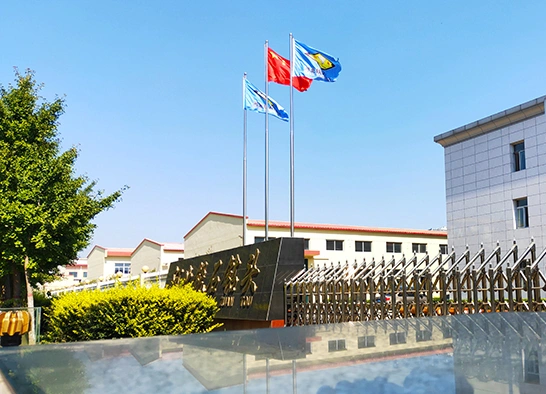

Outdoor scene

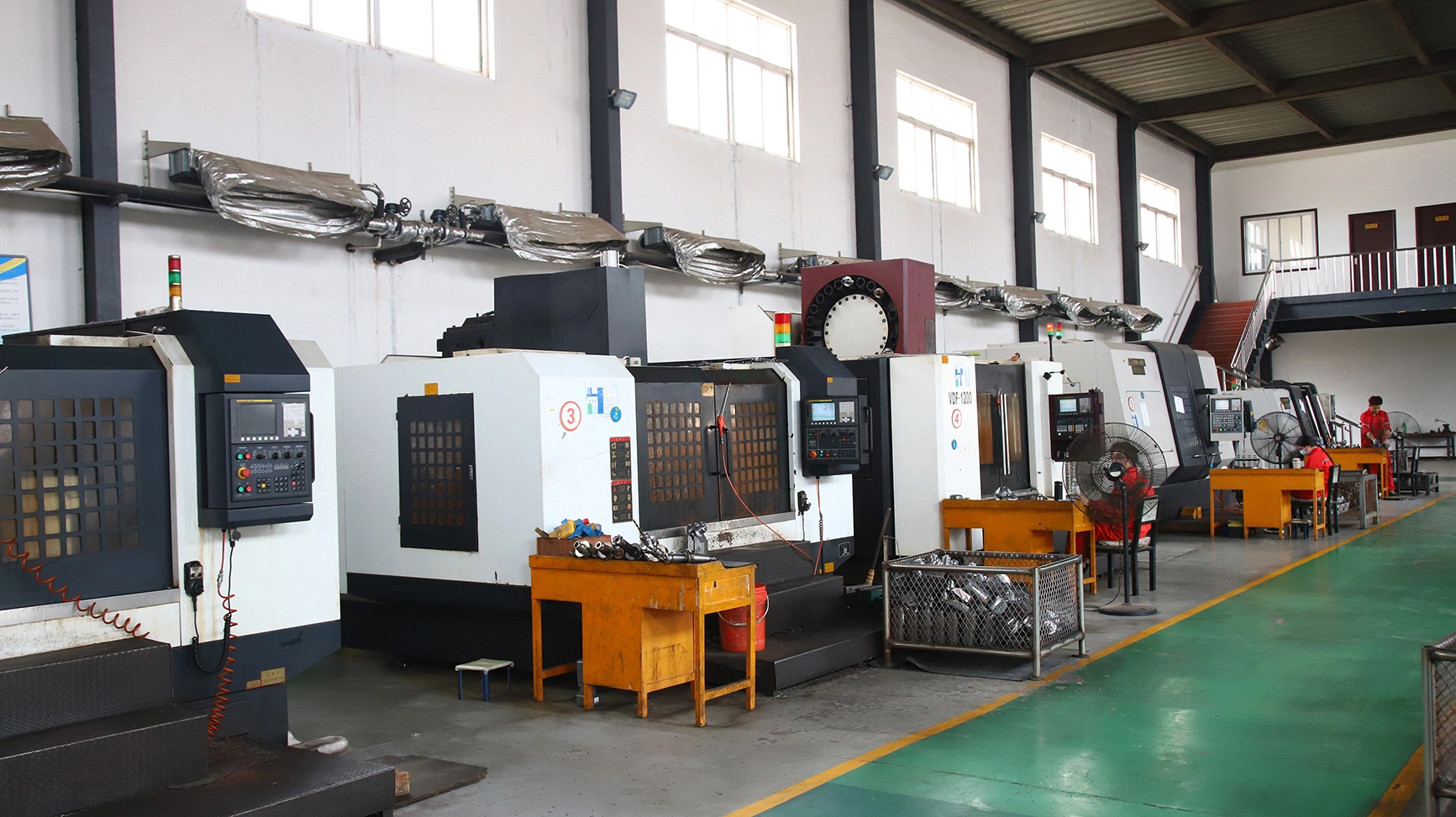

Plants

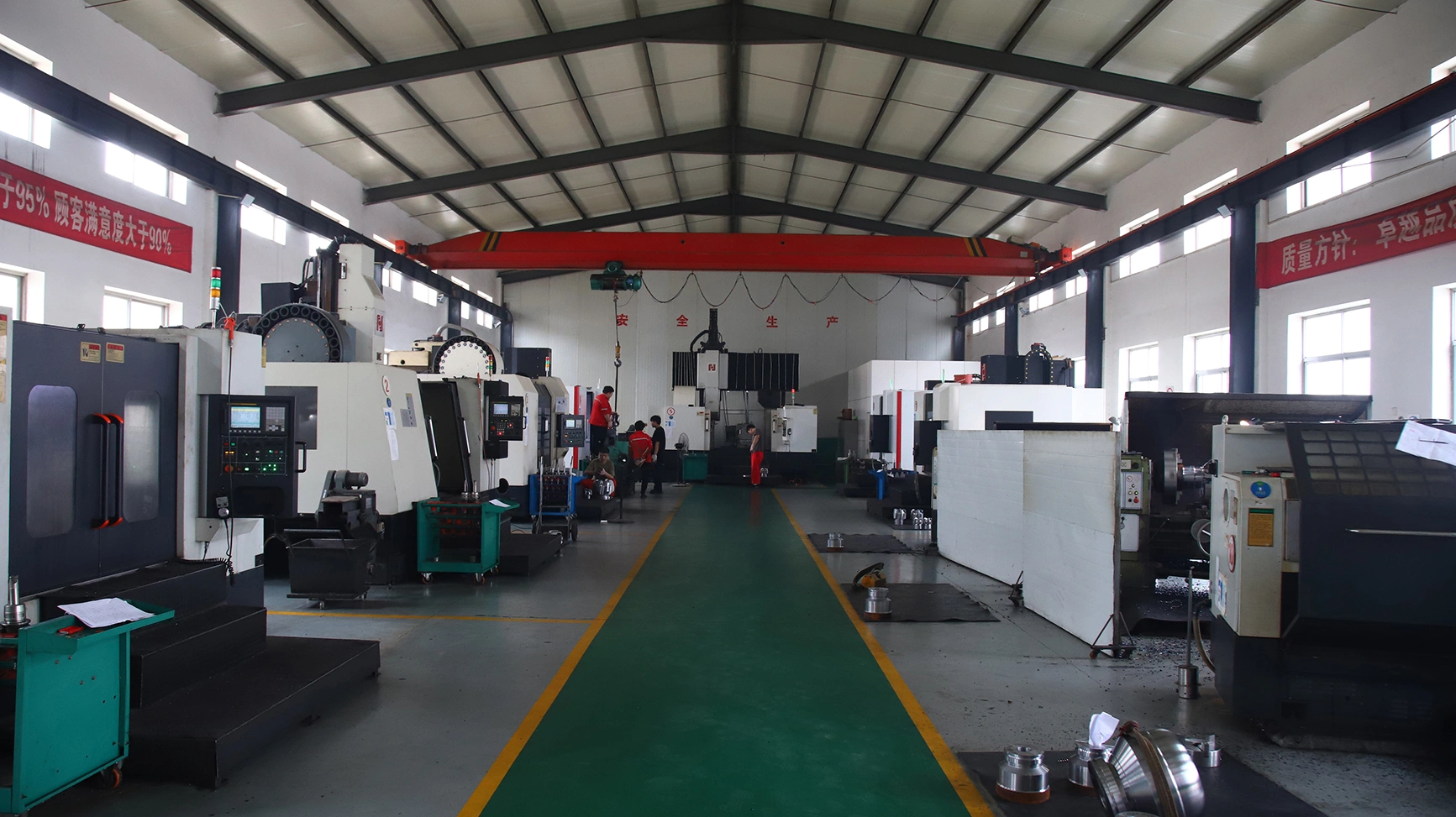

PDC bits production

Tricone bits production

We have a group of technical experts who have been engaged in drill bit design for more than 30 years, advanced five axis machining centers, and a large number of CNC machine tools, which can produce 2 "-26" full model PDC bits, various types of tricone bits, core bits, composite drill bits, hydraulic oscillators, roller cone hole openers, engineering palm films, rotary drilling tools, downhole motor and diamond wire drawing die blanks, which can be customized according to customers' needs.

We strictly adhere to the ISO9001 quality management system, ISO14001 environmental management system, and ISO45001 occupational health and safety management system in our enterprise operations, and strictly implement the API-7-1 quality management standard in the production process, whose details on the "Honor" page.

The company is equipped with a dedicated fleet, located in a location with developed transportation, close to the Beijing Kowloon Railway and the Daguang Expressway, and the Jinbao South Line crosses east-west. The sample molding is completed in 3 days, and the peak season shipment can arrive on the 15th.

Our drill bits have undergone 30 years of rigorous research and development, and have received a high praise rate of over 99% from customers.

Inspect

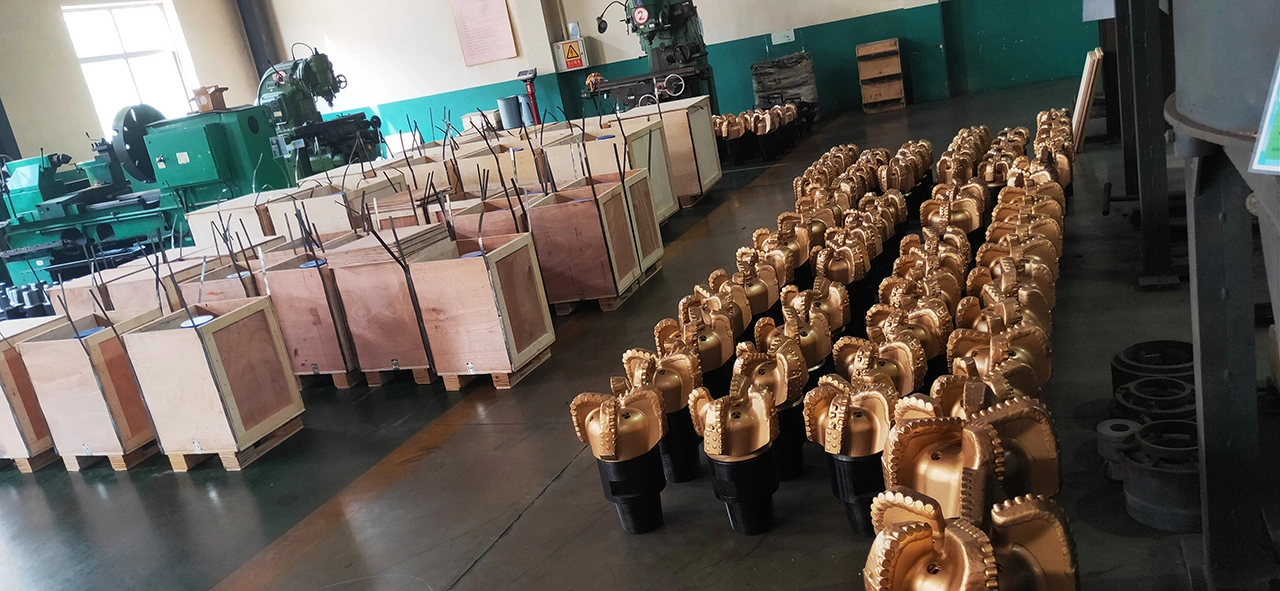

Packing

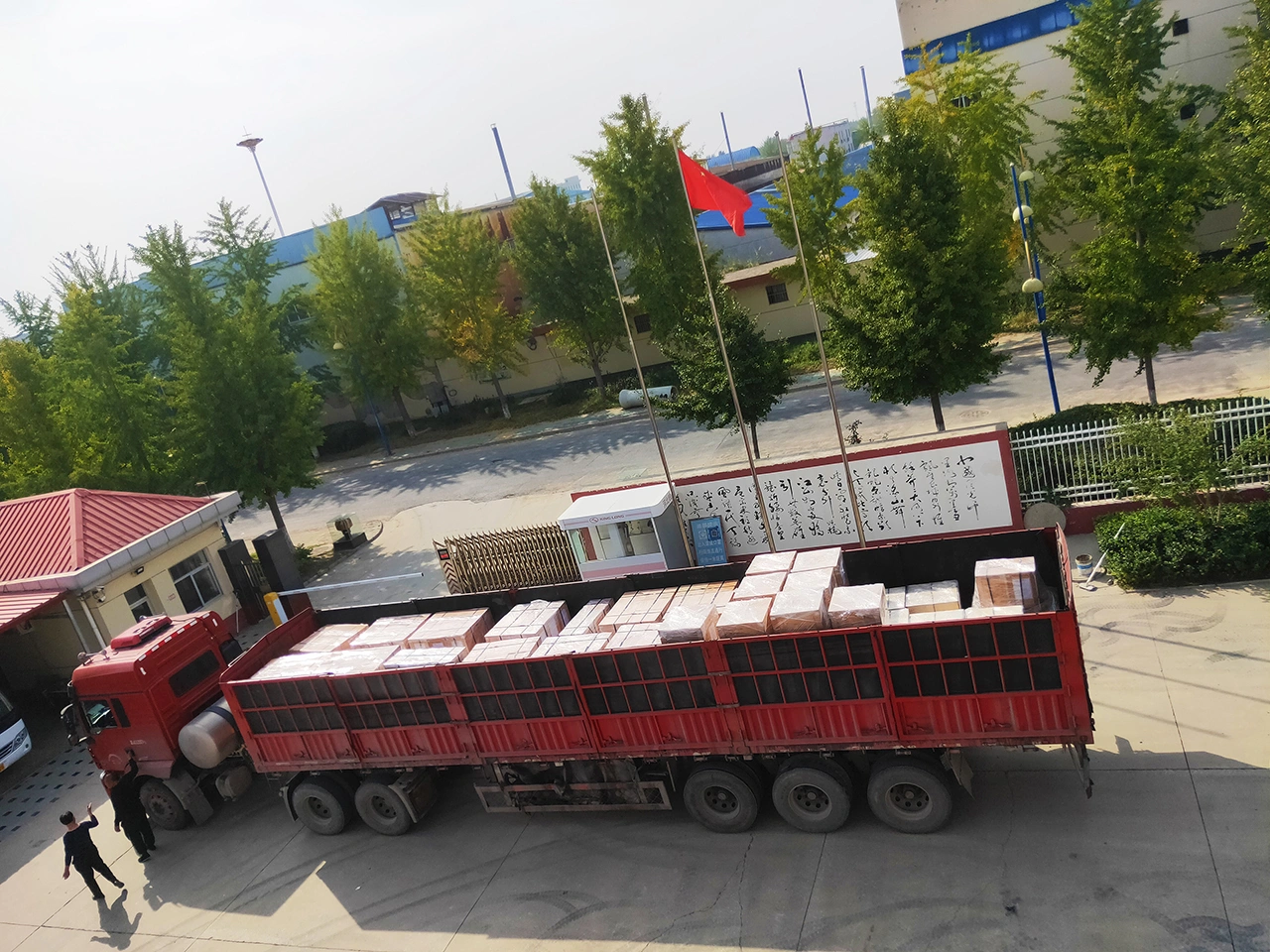

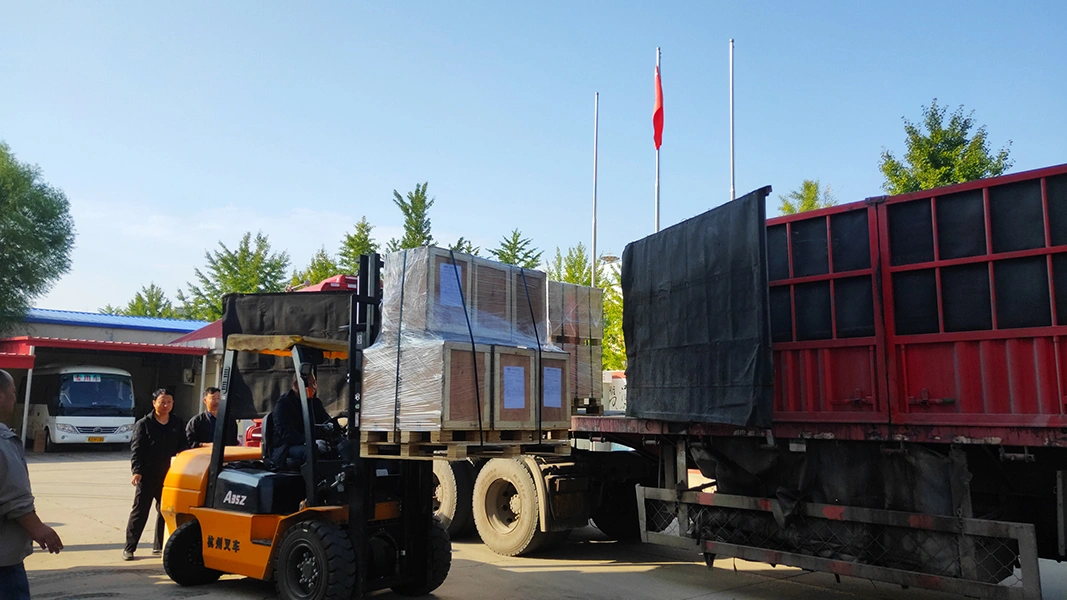

Loading

Transport

Ruishi's products are widely used in major oil fields such as Tarim, Tuha, Changqing, Dagang, Sichuan, Zhongyuan, Jidong, and North China. Ruishi has also established long-term strategic partnerships with these oil fields.

Our product quality and timely and thoughtful service stability have been highly recognized by customers. The company's products have been widely exported to countries and regions such as North America, the Middle East, and Russia.

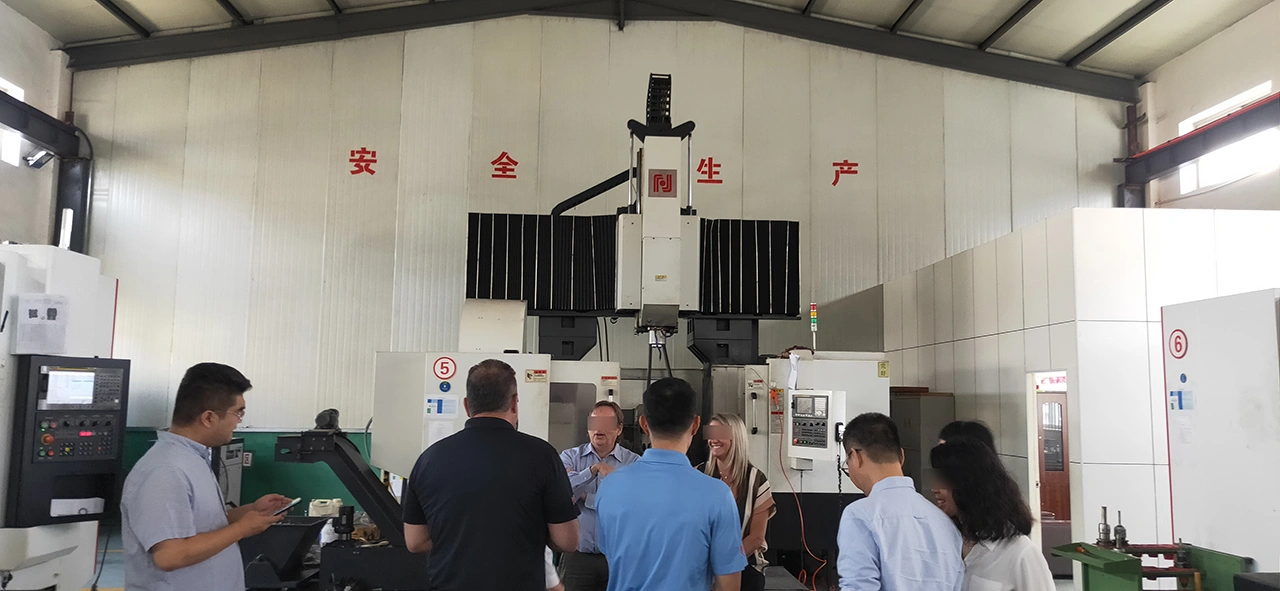

American customers’ inspection

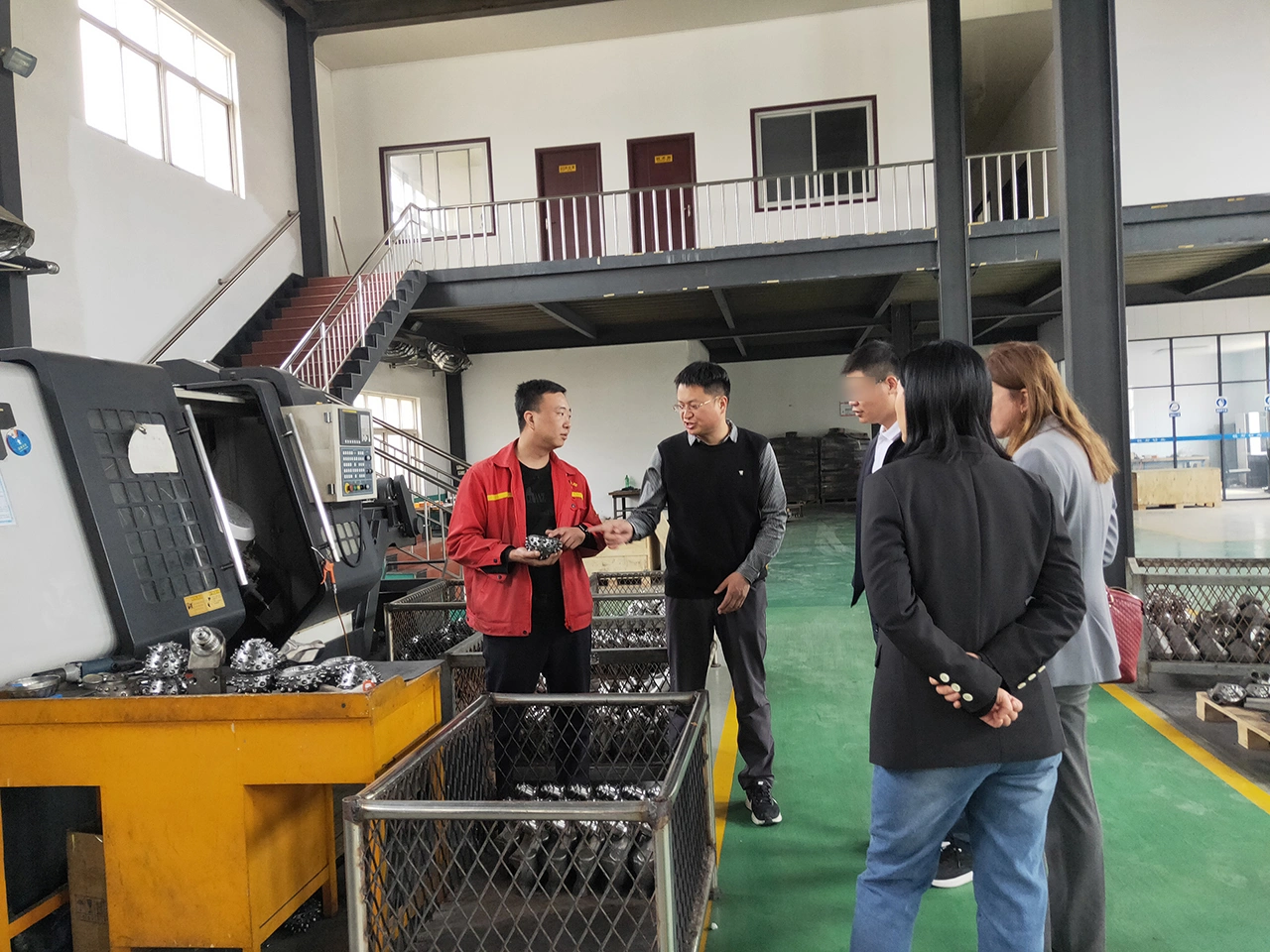

Russian customers’ inspection
