8 1/2″ 12 1/4" PDC&Tricone hybrid bits, 16mm PDC cutters, 4 blades, suitable for various complex geological formations
keyword:
Category：
Core and Hybrid Bits
Product details
PDC&Tricone hybrid bit is an efficient drilling tool widely used in oil, gas, and geothermal well drilling. Its unique design and material combination enable it to perform well in various geological conditions and is widely used in rapid drilling operations in various formations. The 8 1/2 inch and 12 1/4 inch PDC&Tricone hybrid bits are currently one of the most efficient, economical, and widely applicable drilling tools on the market.
Bits Specification
| Bit size (in) | 8 1/2″ | 12 1/4″ |
|---|---|---|
| Bit size (mm) | 215.9 | 311.1 |
| Number of blade | 6 | 4 |
| Primary cutter size(mm) | 16 | |
| Nozzle qty | 6 | |
| Gauge length | 2″-3.5″ | |
| Connection | 4-1/2″ API REG | 6 5/8" API REG |
| Recommended RPM (r/min) | 60-250 | |
| Recommended WOB (KN) | 10-100 | 30-180 |
| Recommended flow rate(lps) | 25-36 | 45-80 |
| Net / Gross weight (kg) | *（Based on actual products） | |
| Package dimension (mm) | 580×285×285 | 700×360×360 |
| Formations | Suitable for various complex geological formations. Hard formations, interlayers, gravel bearing formations, dense and abrasive formations. | |
| Structure feature | ◆ Combining the dual characteristics of PDC drill bits and roller drill bits. Simultaneously increasing the mechanical drilling speed and drilling depth greatly enhances the rock breaking attack capability, resulting in outstanding effects in the inclined shaft section. ◆ Anti rotation design. Improve the mechanical drilling speed and stability of drill bits. ◆ High quality PDC composite sheet gauge. Reduce gauge wear, increase gauge wear resistance and stability. ◆ Surface welding of high-performance wear-resistant materials. Enhance the wear resistance and erosion resistance of drill bits. | |
Ruishi Bits Model Description
For details, please refer to the official website of Hebei Ruishi Bits Manufacturing Co., Ltd：
https://www.ruishibit.com/
S | 16 | 4 | 2 | DRF |
Bit Type S: PDC steel body bit M: PDC matrix body bit | Cutter Size | Number of Wings | Suitable Formation Hardness | Characteristic Code |
Characteristics of PDC&Tricone Hybrid Bits
PDC & tricone hybrid bits (Lion Tiger Beast) combine the advantages of both types of drill bits to achieve high efficiency, durability, and versatility, making them particularly suitable for drilling operations in complex formations. This type of drill not only improves rock breaking efficiency and mechanical drilling speed, but also significantly extends its service life and performs well in directional drilling. It is an important tool for modern oil and gas exploration and development, with the following main characteristics:
High rock breaking efficiency
The Lion Tiger Beast drill bit achieves efficient rock breaking capability through the combination of PDC cutting teeth and tricone bits cutting structure. The PDC section adopts a design with large tooth spacing and a medium back inclination angle, which improves the drilling ability of the drill bit, while the tricone bits section further improves the rock breaking efficiency through impact crushing.
Mechanical drilling speed is fast
Hybrid drill bits can significantly improve mechanical drilling speed in sliding drilling, while reducing drill bit torsional vibration and stick slip phenomena, thereby enhancing the stability of the tool face.
Widely applicable
The lion tiger beast drill bit is suitable for complex formations, including tight shale, heterogeneous formations, and hard formations. Its structural design can effectively cope with the alternating soft and hard strata, reducing the problem of drill bit failure caused by geological changes.
Long service life
Due to the high wear resistance and impact resistance of PDC cutting teeth, as well as the low torque characteristics of the tricone section, the service life of Lion Tiger Beast drill bits in hard formations is longer than that of single type drill bits.
Excellent directional drilling performance
When directional drilling in highly inclined sections, the Lion Tiger Beast drill bit can effectively solve the problems of high friction torque, severe pressure support, and unstable tool surface, improving the efficiency of directional drilling.
Reduce wear and maintenance costs
The design of the Lion Tiger Beast drill bit optimizes the arrangement and structure of the cutting teeth, reduces wear, and extends its service life. Meanwhile, its composite structure reduces the frequency of replacement and lowers maintenance costs.
Ability to adapt to complex working conditions
Under high temperature, high pressure, and hard formation conditions, the Lion Tiger Beast drill bit performs well. It combines the efficient cutting ability of PDC bits with the impact crushing ability of tricone bits, enabling it to work stably in harsh environments.
Improve drilling efficiency
Practice has shown that the application of lion tiger beast drill bits in complex formations can significantly improve drilling efficiency and reduce drilling cycles.
Frequently Asked Questions
Q: What are the advantages of our company?
A: Our company integrates R&D and manufacturing. We are a bit manufacturer with over 30 years of experience in the industry, providing customers with efficient one-stop services including design and development, customized suggestions, manufacturing, direct sales, and after-sales support.
Q: How to find the drill bit model you need on the website?

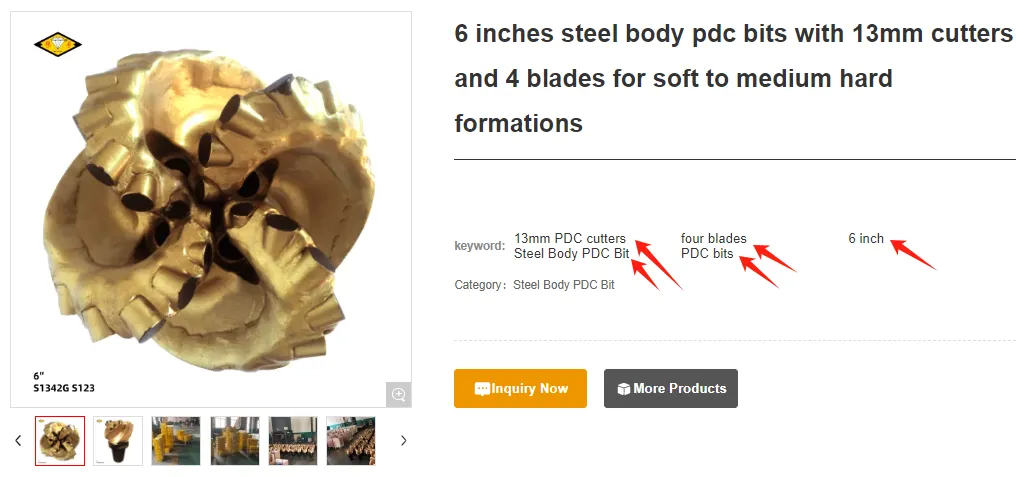

A: You can search for the products you need in the "Product" of the station based on information such as "drill bit size", "main cutting tooth specifications", "number of blades", etc.
Q: If you can't find the model you need? Do you know how to choose the desired model? How to customize products?
A：Please click CONTACT or MESSAGE to let us know your needs. We will contact you soon and provide professional advice in the following areas.
| Bits type | 2 "-26" full size PDC bit (steel body bit / matrix body bit), tricone bit, core bit, hybrid bit, other drilling tools, etc |
|---|---|
| Bits parameters | PDC bits (blade number, cutting tooth specifications, composite cutters type, connection), tricone bit (tooth type (TCI/milled tooth), sealing form…) |
| Well information | Logging information, well depth and type (oil well, natural gas well, geothermal well, water well...) |
| Rock layer type | Limestone, dolomite, sandstone, clay rock, shale, etc Rock hardness level 1-7, from soft to hard, or "extremely soft, medium soft, soft, medium hard, hard, extremely hard" |
| Geographic location | Domestic and foreign, specific sections, and transportation weight |
| Other technical questions | - |
Q: How long does it take for customized products to arrive?
A: Generally, it takes 3 days to complete the sample model and 15 days to ship during peak season, using land, sea, air, or other transportation methods.
Q: How to solve your technical doubts? How to inquire about a price?
A: Please contact email rszwt2023@ruishibit.com Or WeChat zom2077, we will arrange professional personnel as soon as possible to solve your technical doubts one by one and provide you with a price quotation.
Q: What accessories do our drill bit products have?
A: There will be relevant instructions provided after packing.
Q: What other related products or services does our company have?
A: Our company not only produces various types of PDC drill bits and tricone bits, but also manufactures hydraulic oscillators, roller cone hole openers, engineering palm films, rotary drilling tools, downhole motor and diamond wire drawing die blanks. If you have any other industry related questions, we will do our best to answer them for you.
……
Company Qualification
Hebei Ruishi Bits Manufacturing Co., Ltd. established in 1990 is a long-term first tier supplier of CNPC, Sinopec, and CNOOC.

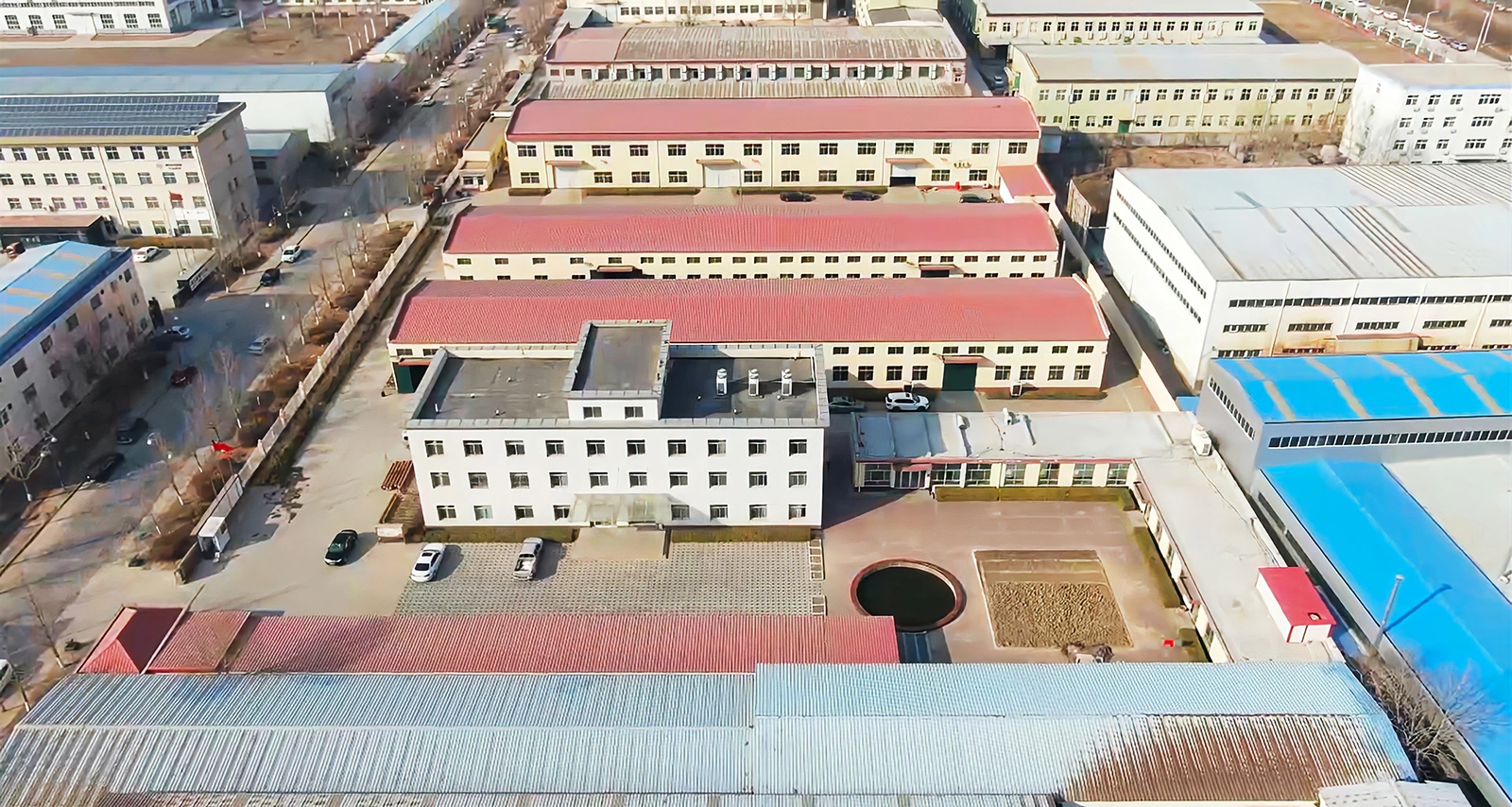

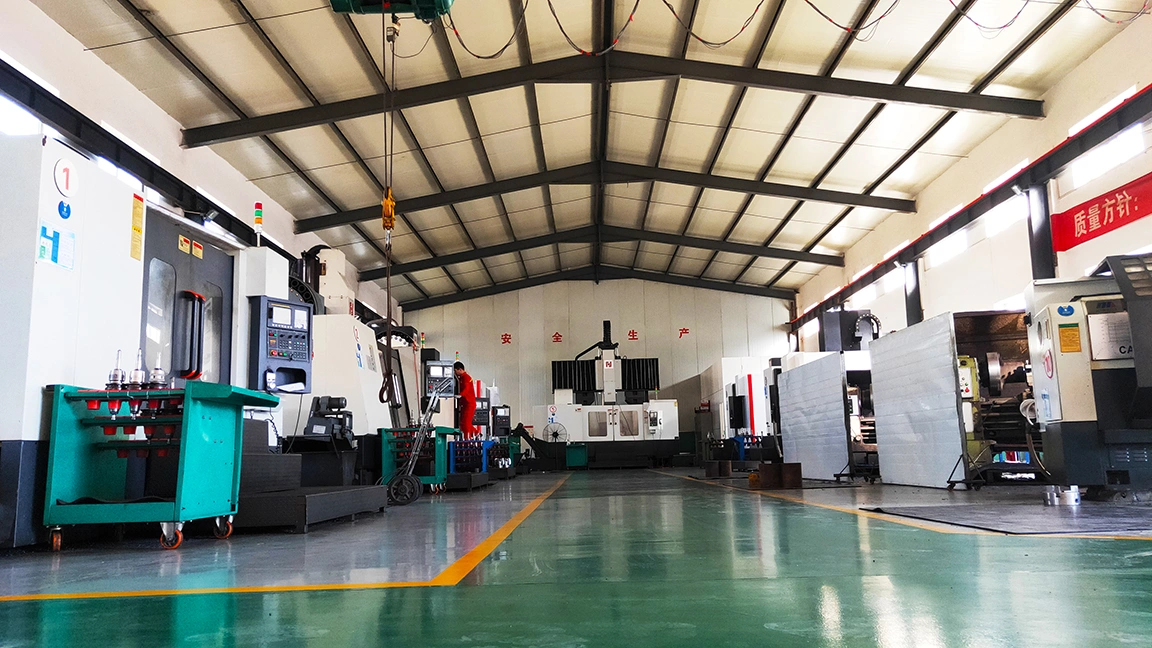

Plants
PDC bits production
Tricone bits production

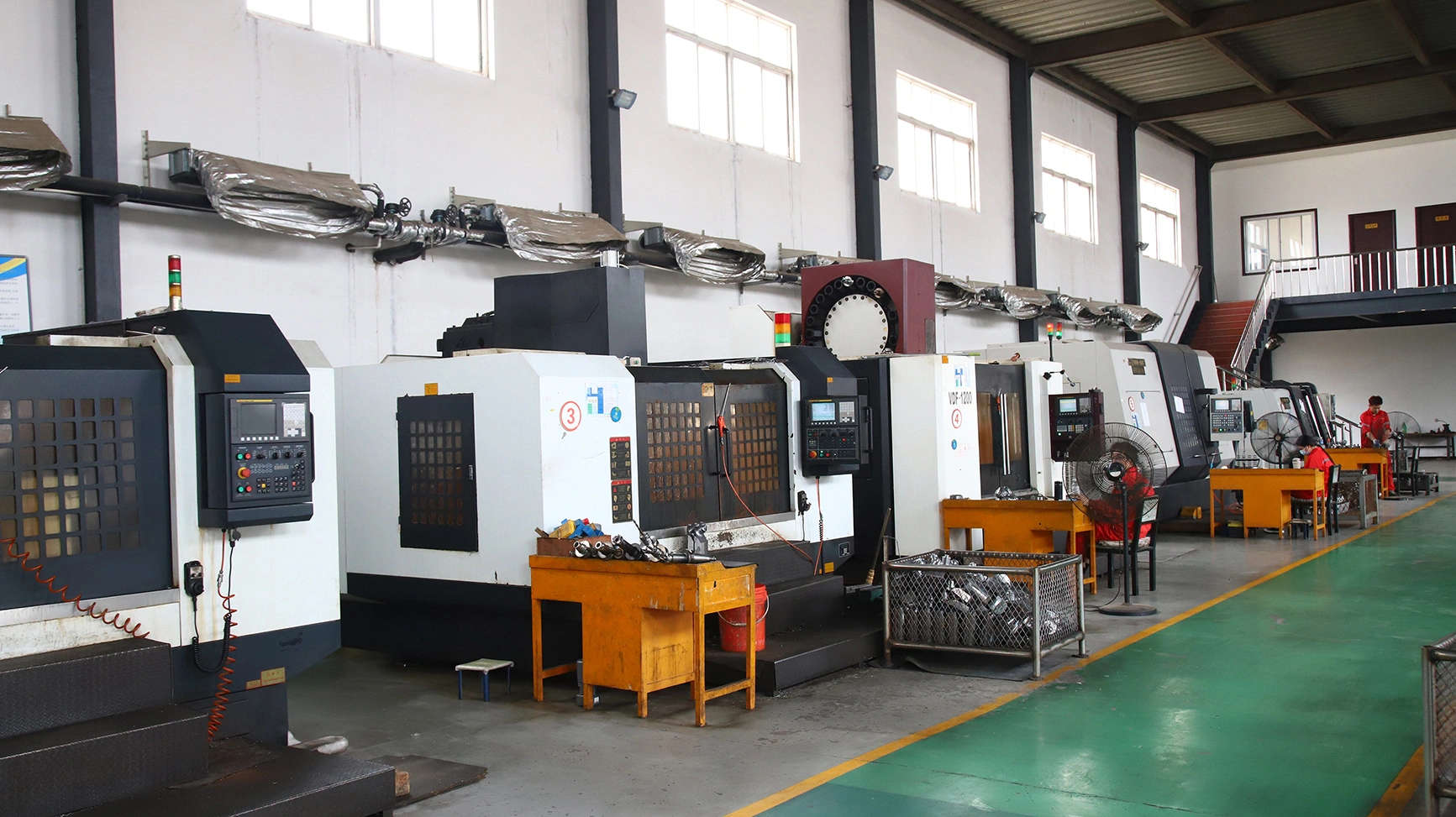

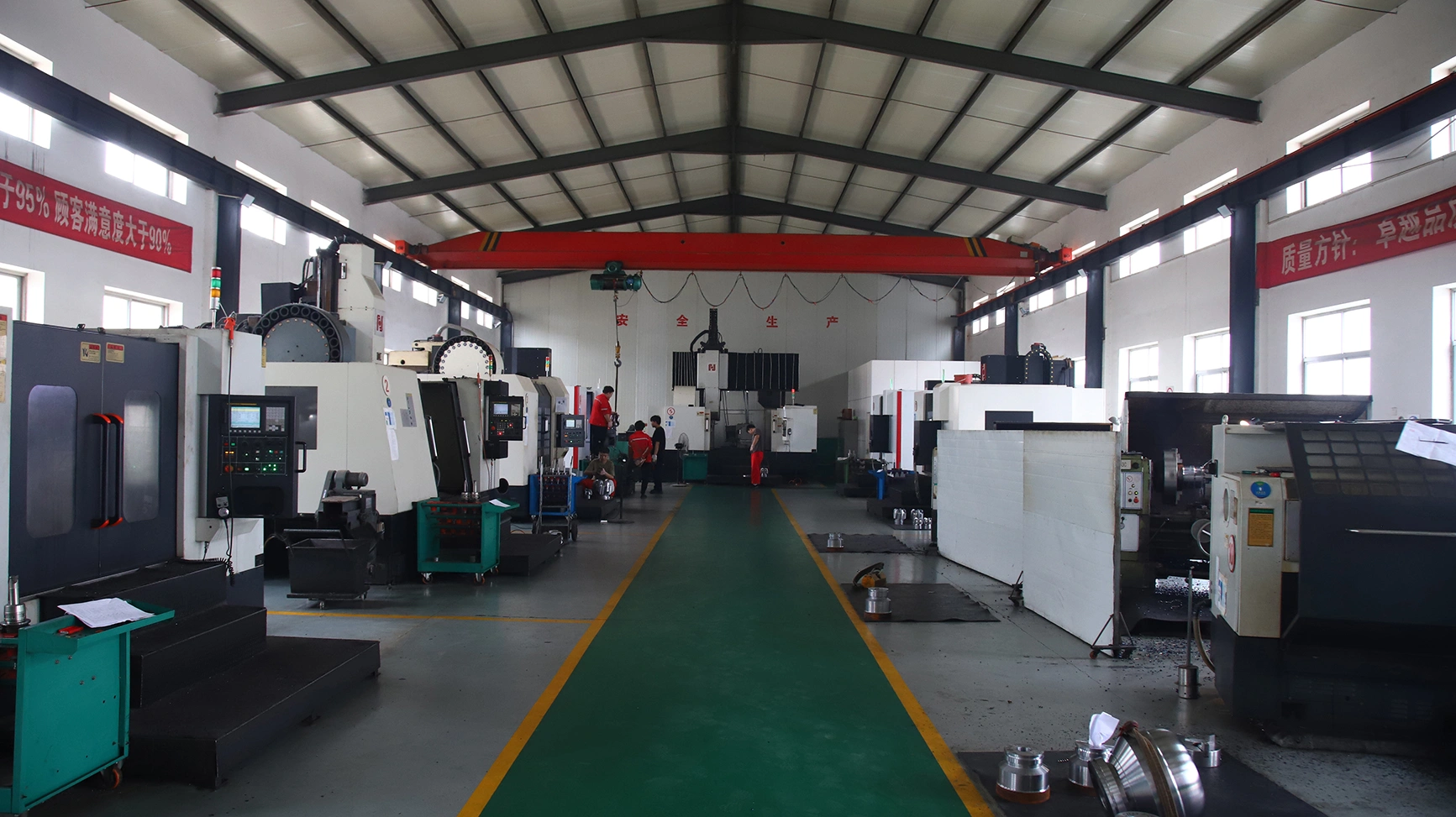

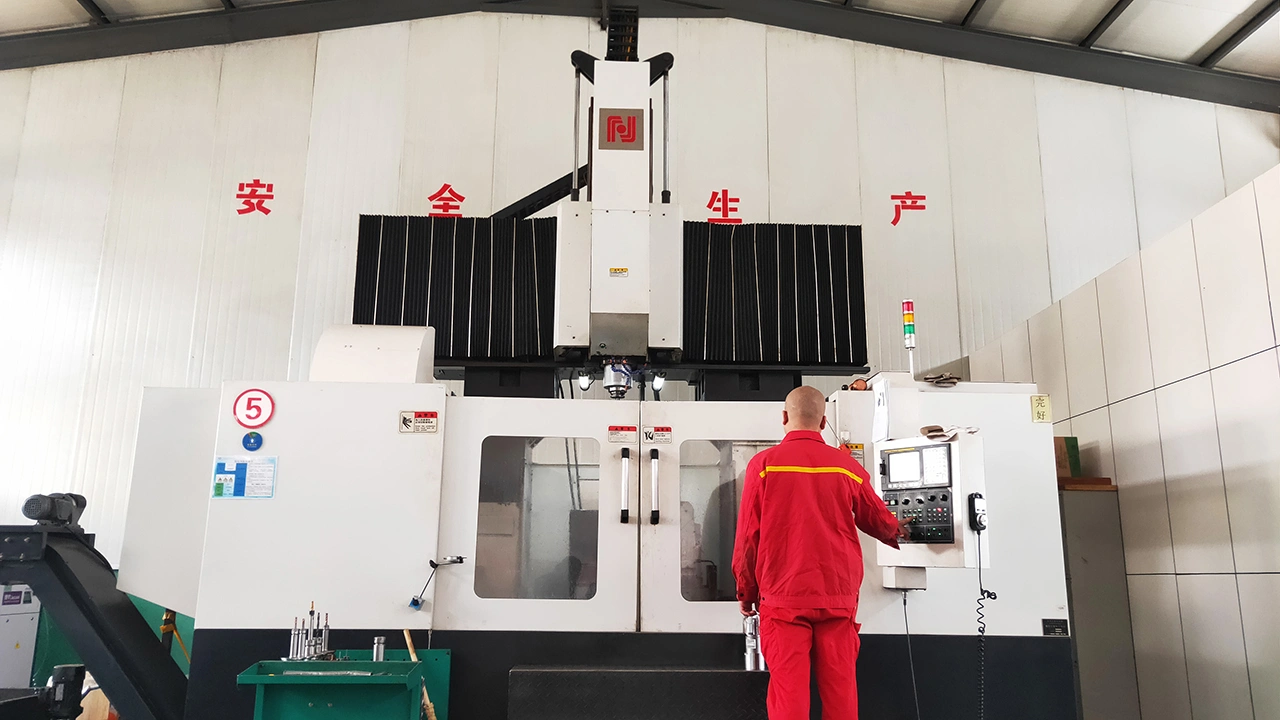

We have a group of technical experts who have been engaged in drill bit design for more than 30 years, advanced five axis machining centers, and a large number of CNC machine tools, which can produce 2 "-26" full model PDC bits, various types of tricone bits, core bits, composite drill bits, hydraulic oscillators, roller cone hole openers, engineering palm films, rotary drilling tools, downhole motor and diamond wire drawing die blanks, which can be customized according to customers' needs.
We strictly adhere to the ISO9001 quality management system, ISO14001 environmental management system, and ISO45001 occupational health and safety management system in our enterprise operations, and strictly implement the API-7-1 quality management standard in the production process, whose details on the "Honor" page.

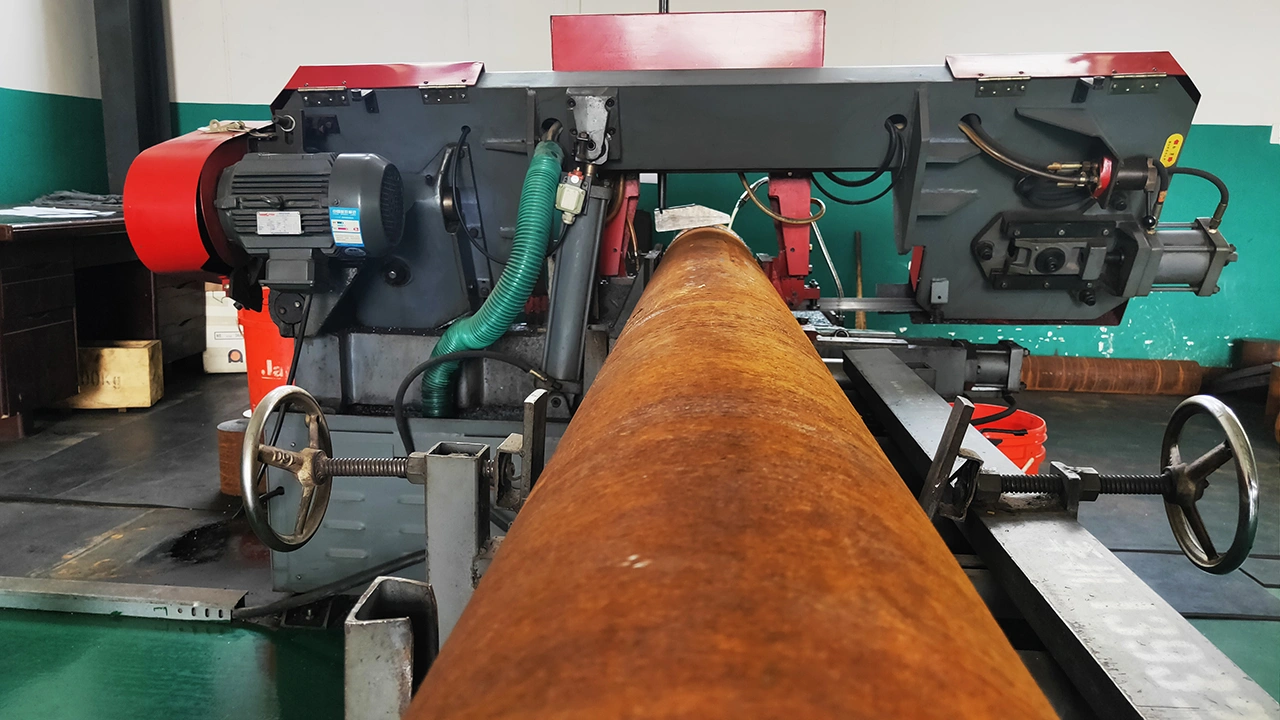

Blanking, Selected material 42CrMo

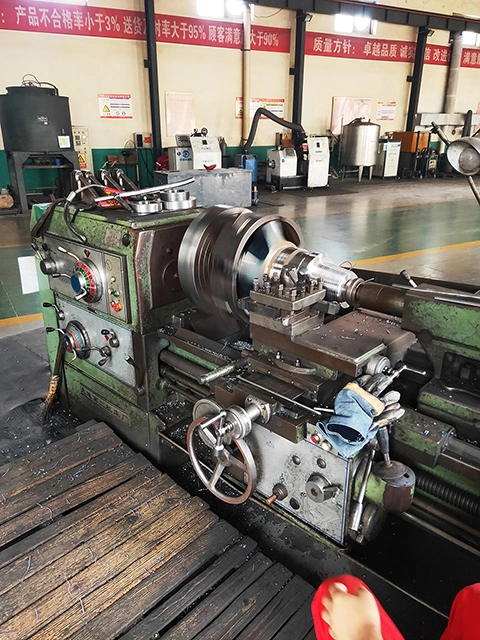

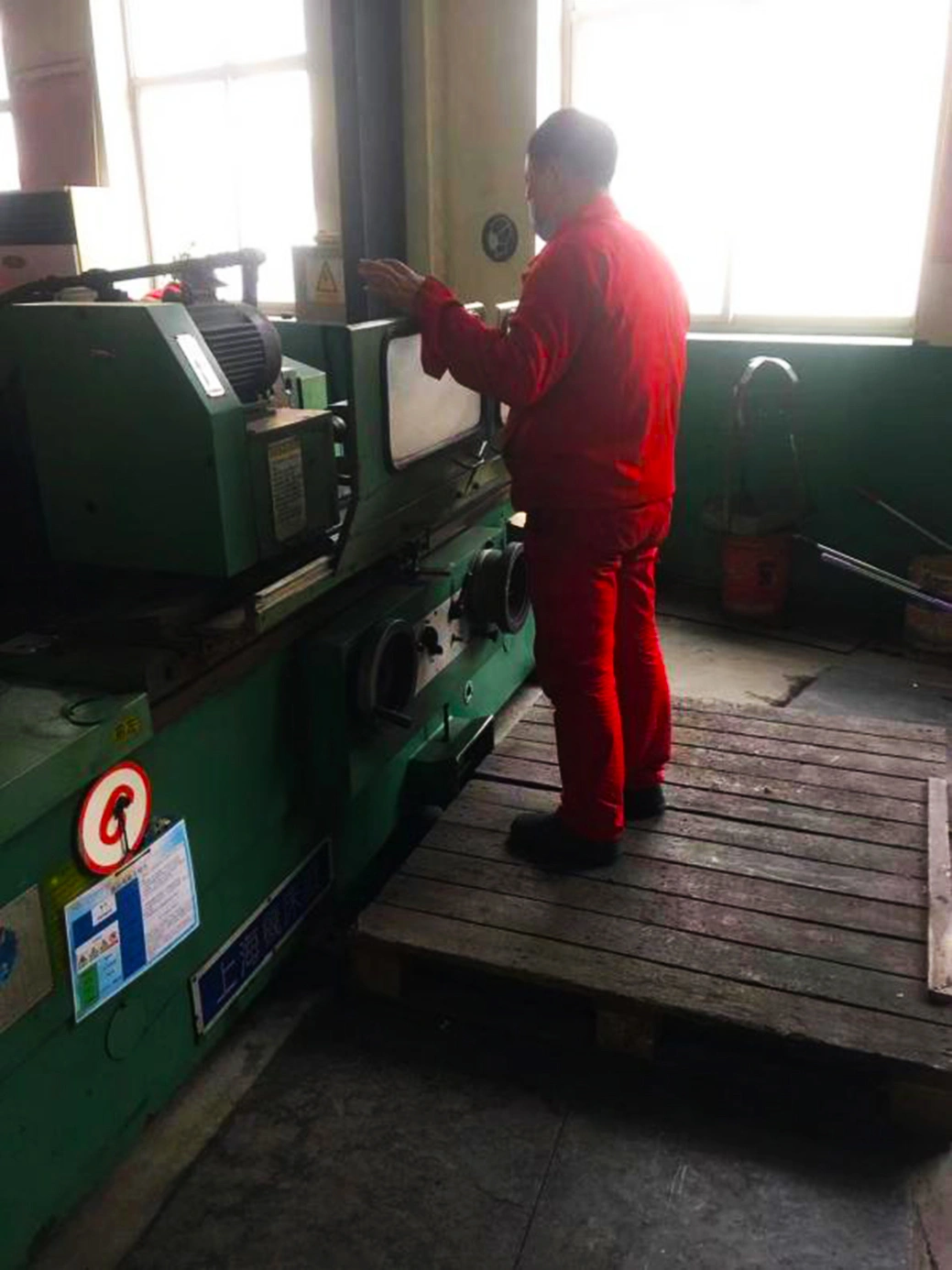

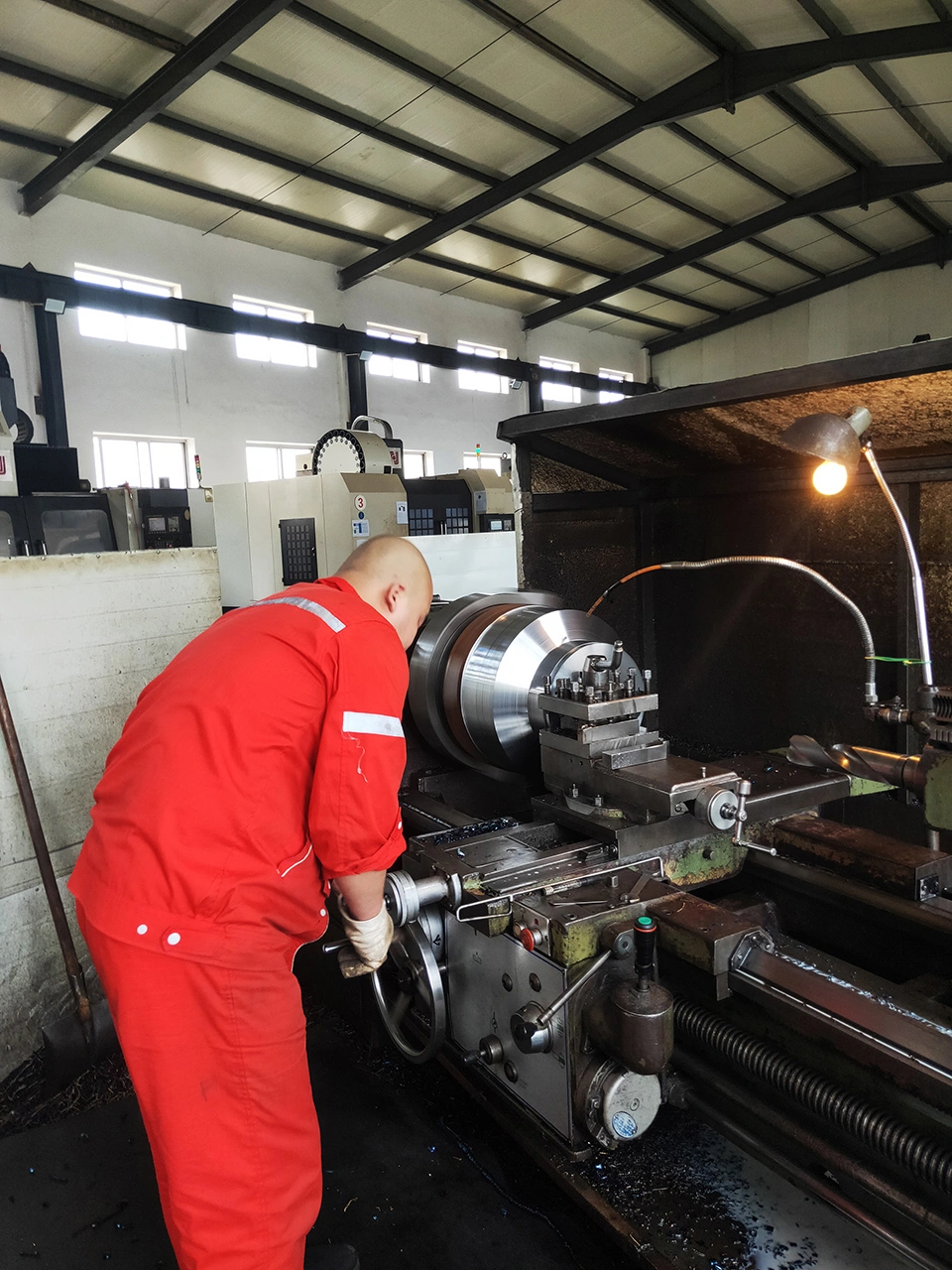

Rough turn, Within the error range, accurately measure the diameter

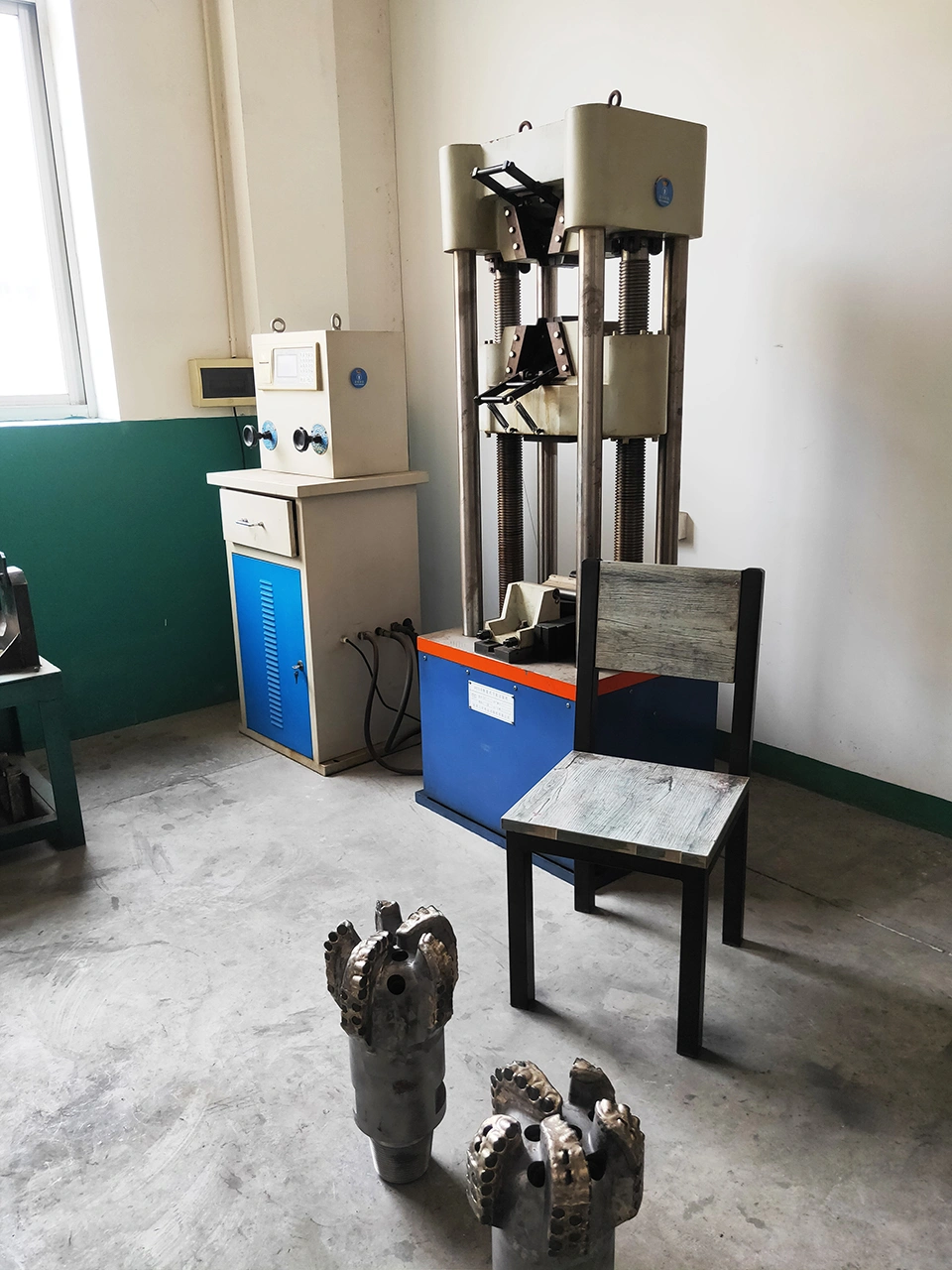

Nondestructive detection
CNC precision turning the crown profile of bit
Use the machining center to mill the bit blade and channel groove
Use Five axis machining center to Drill and mill tooth cavity holes and nozzle holes
Bit body machining, assembly joint
Bit body and joint butt welding
External circular machining of bit body and joint butt welding

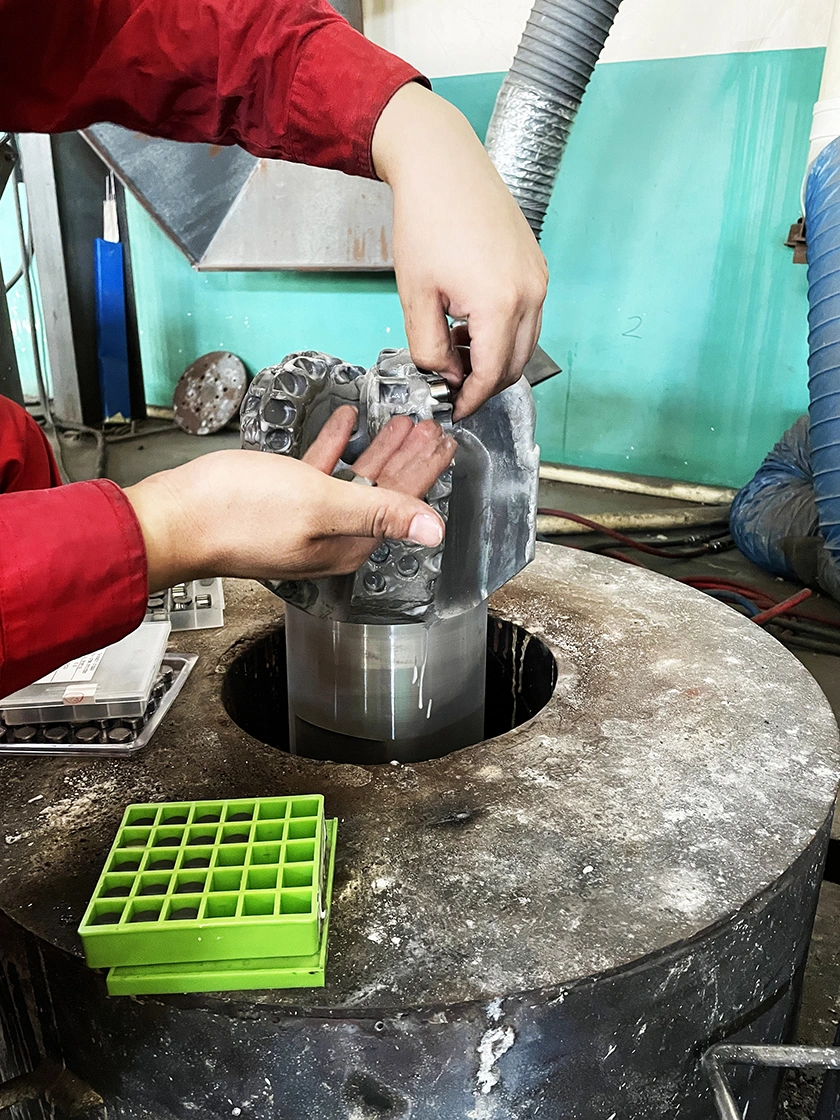

Clean bit tooth cavities, replace each piece with graphite and ensure that it passes the trial assembly

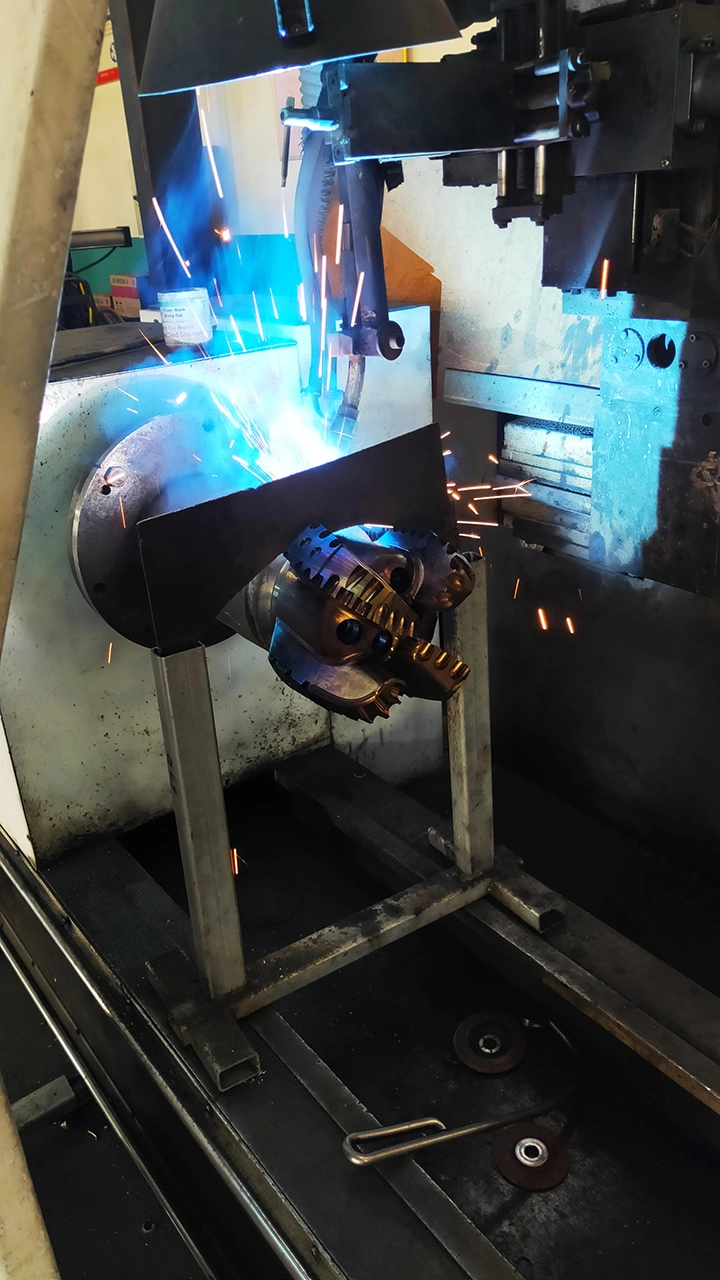

Surface Strength Hardening of Drill Crown Blade, Weld the surface of the drill bit crown blade

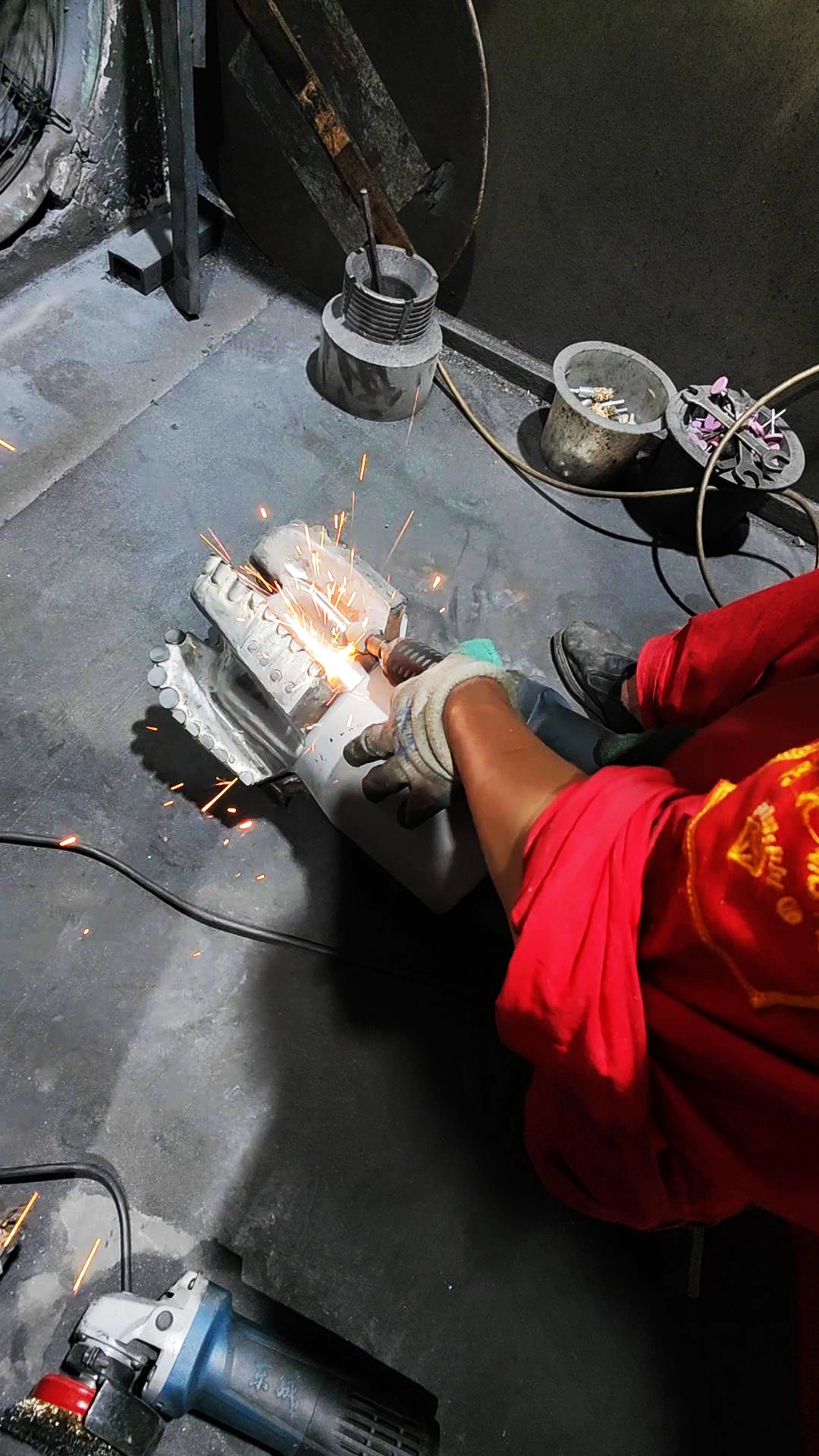

Clean bit tooth hole and nozzle hole, polishing and sandblasting

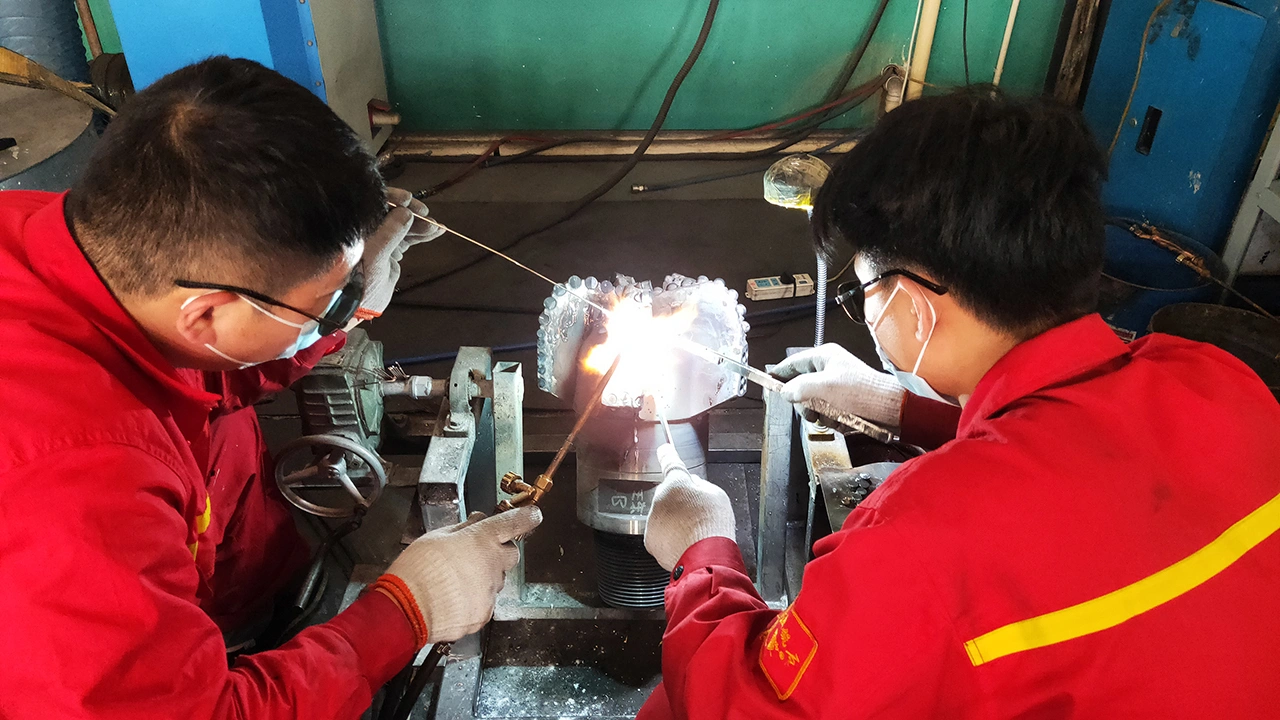

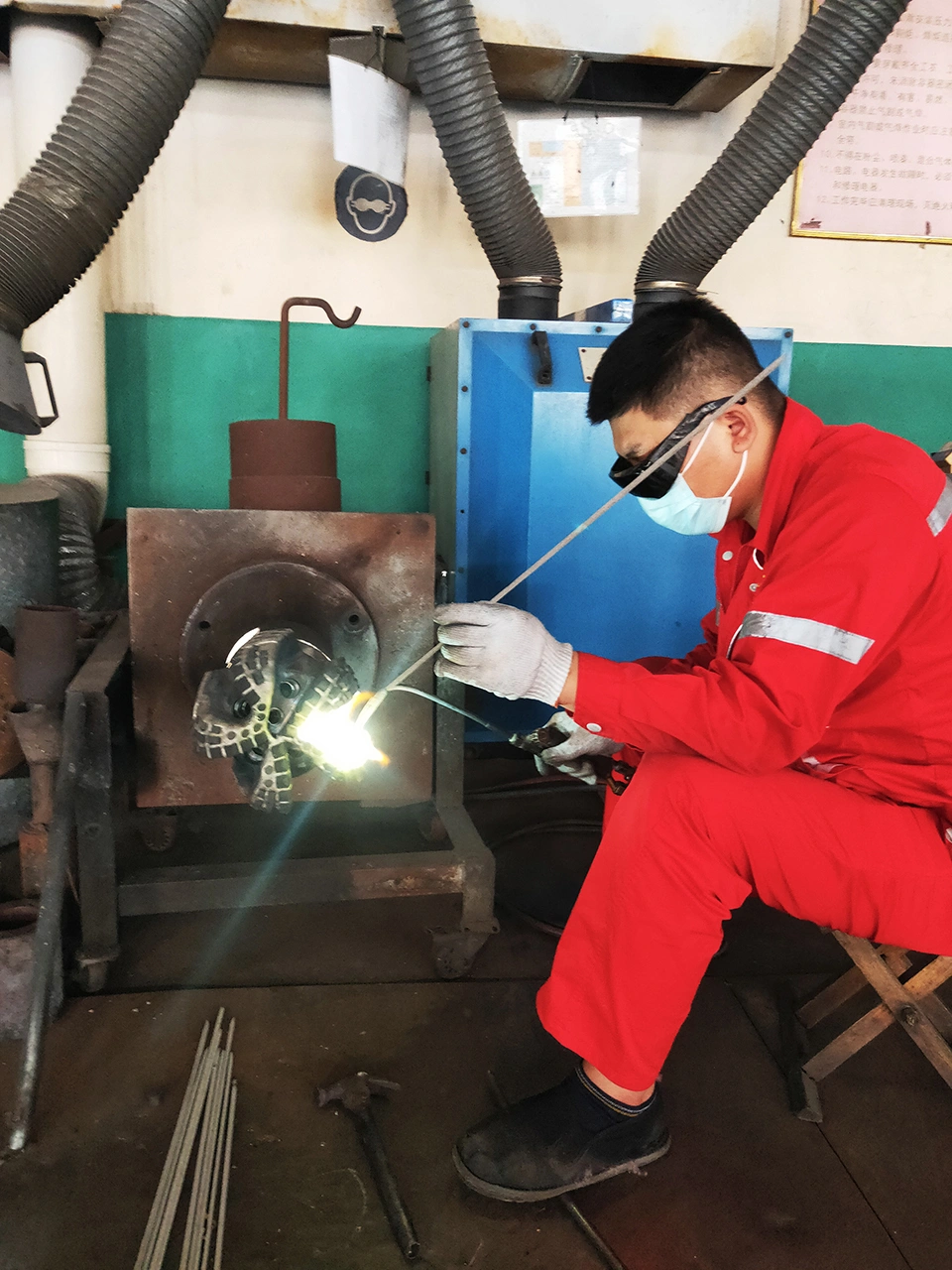

Braze, check the brazing condition of each tooth cavity to ensure that the fiber welding layer is wet, penetrating, substantial, and full, finally nondestructive detection

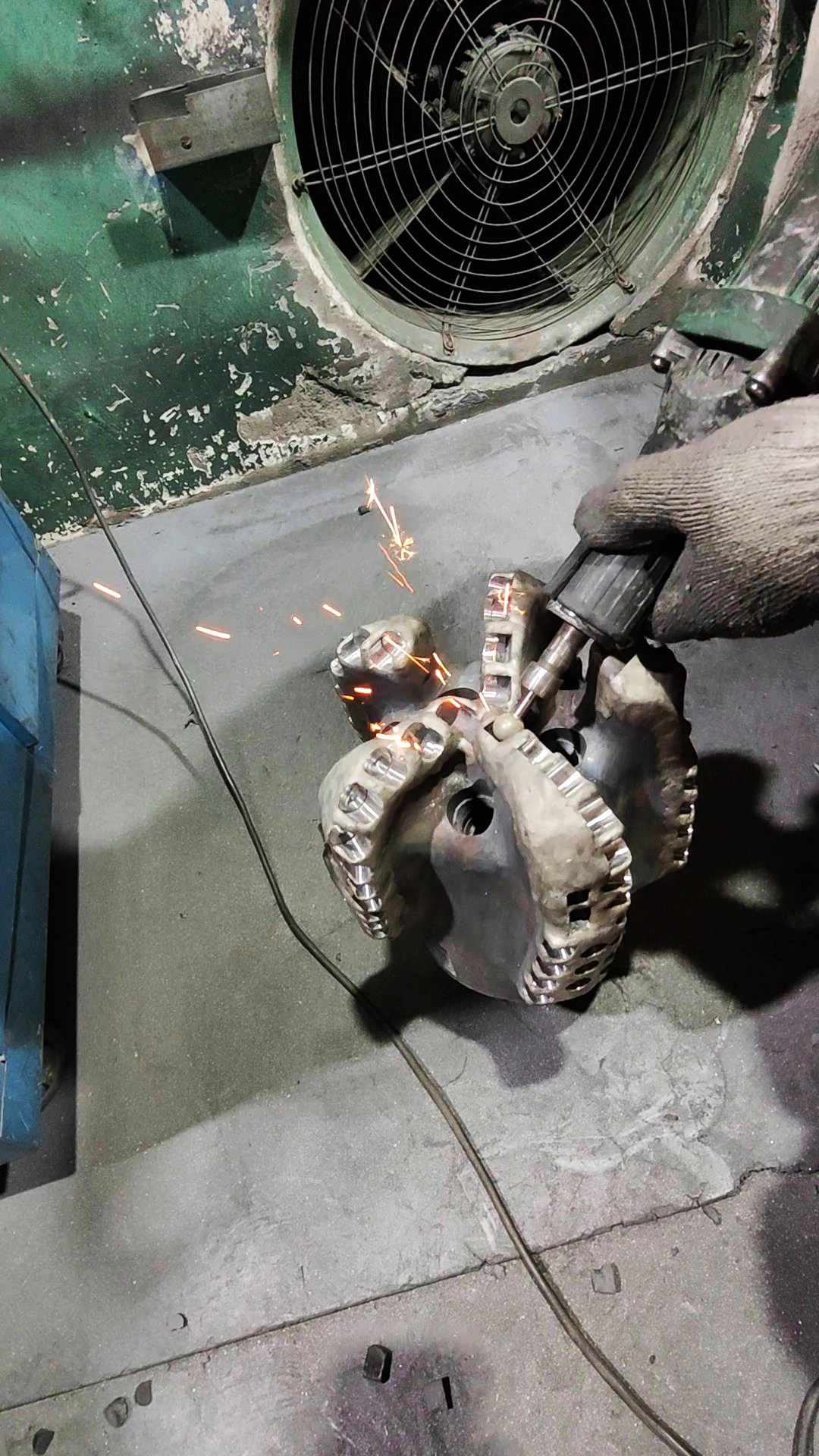

Clean bit, grind the gauge

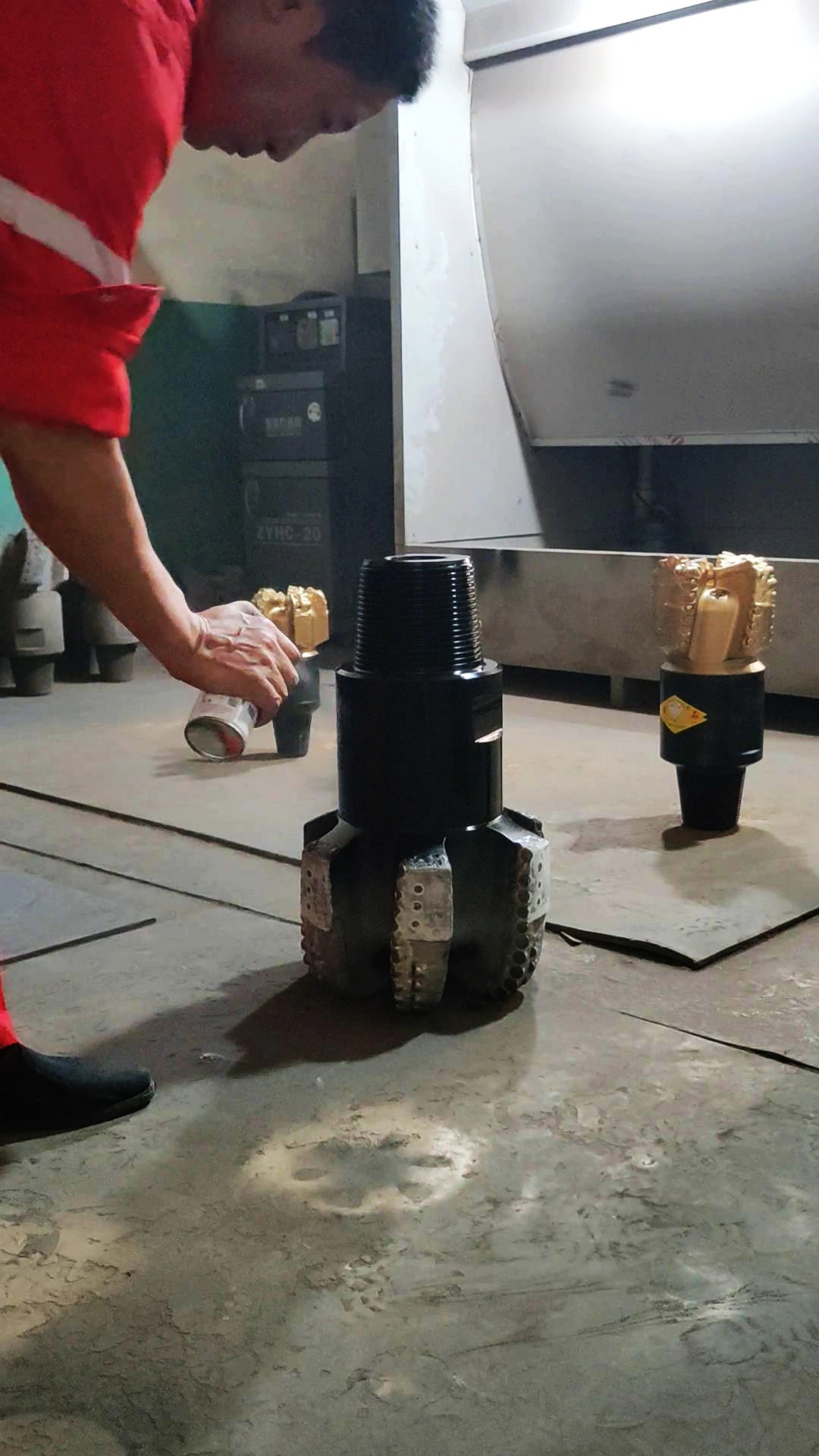

Bit embellish, painted evenly the surface of the bit, and the steel grade shall be marked and protected according to the identification regulations

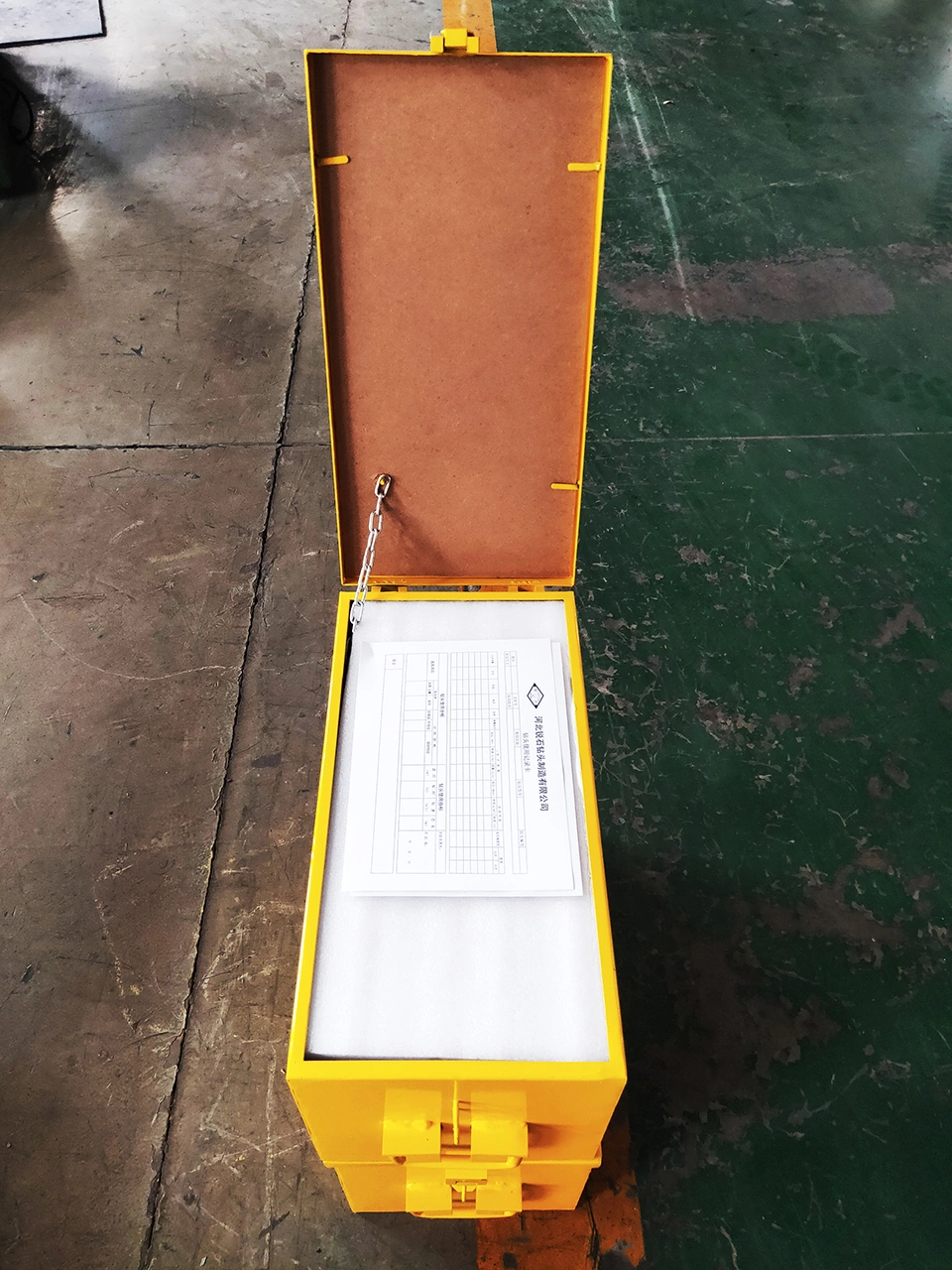

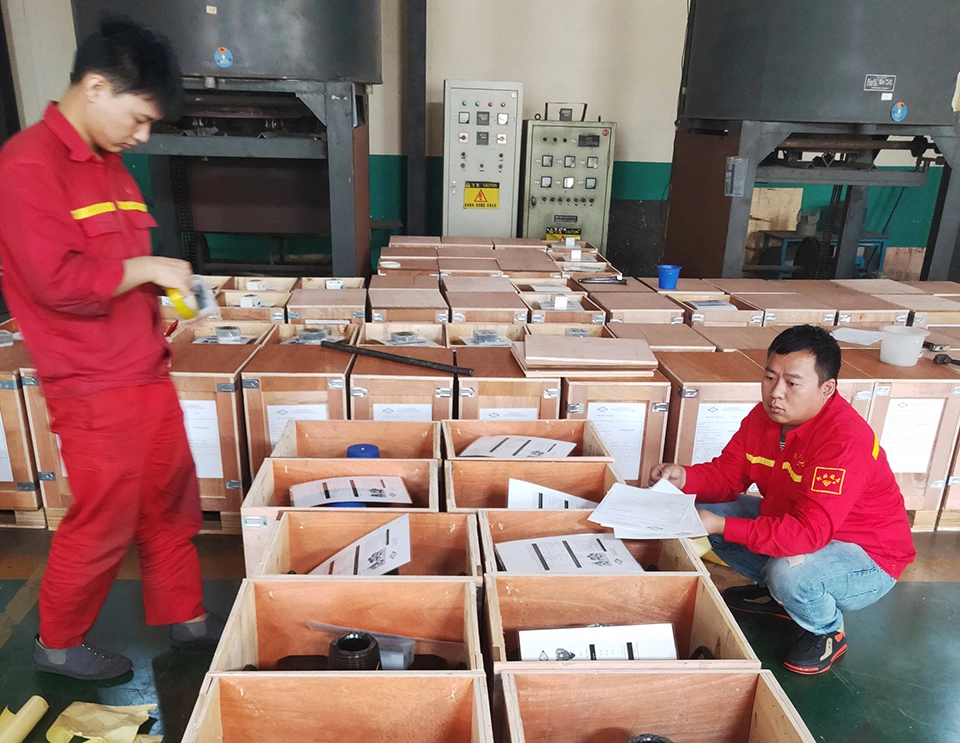

Packaging, The bit, factory data, attachments, and markings are consistent and accurately proofread
The company is equipped with a dedicated fleet, located in a location with developed transportation, close to the Beijing Kowloon Railway and the Daguang Expressway, and the Jinbao South Line crosses east-west. The sample molding is completed in 3 days, and the peak season shipment can arrive on the 15th.
Our drill bits have undergone 30 years of rigorous research and development, and have received a high praise rate of over 99% from customers.
Inspect

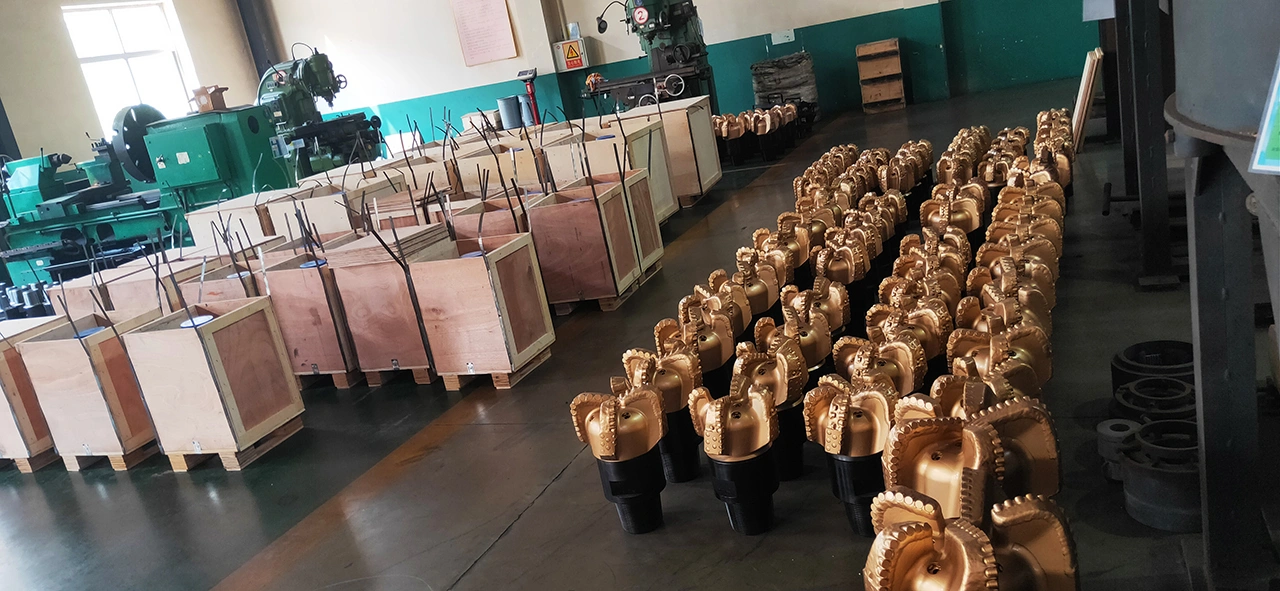

Packing

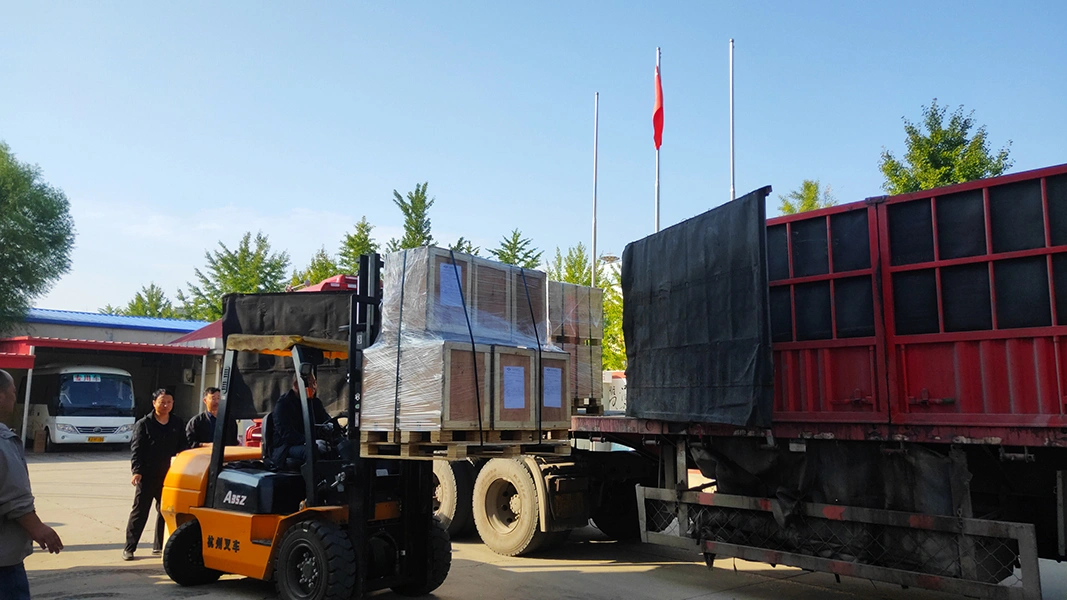

Loading

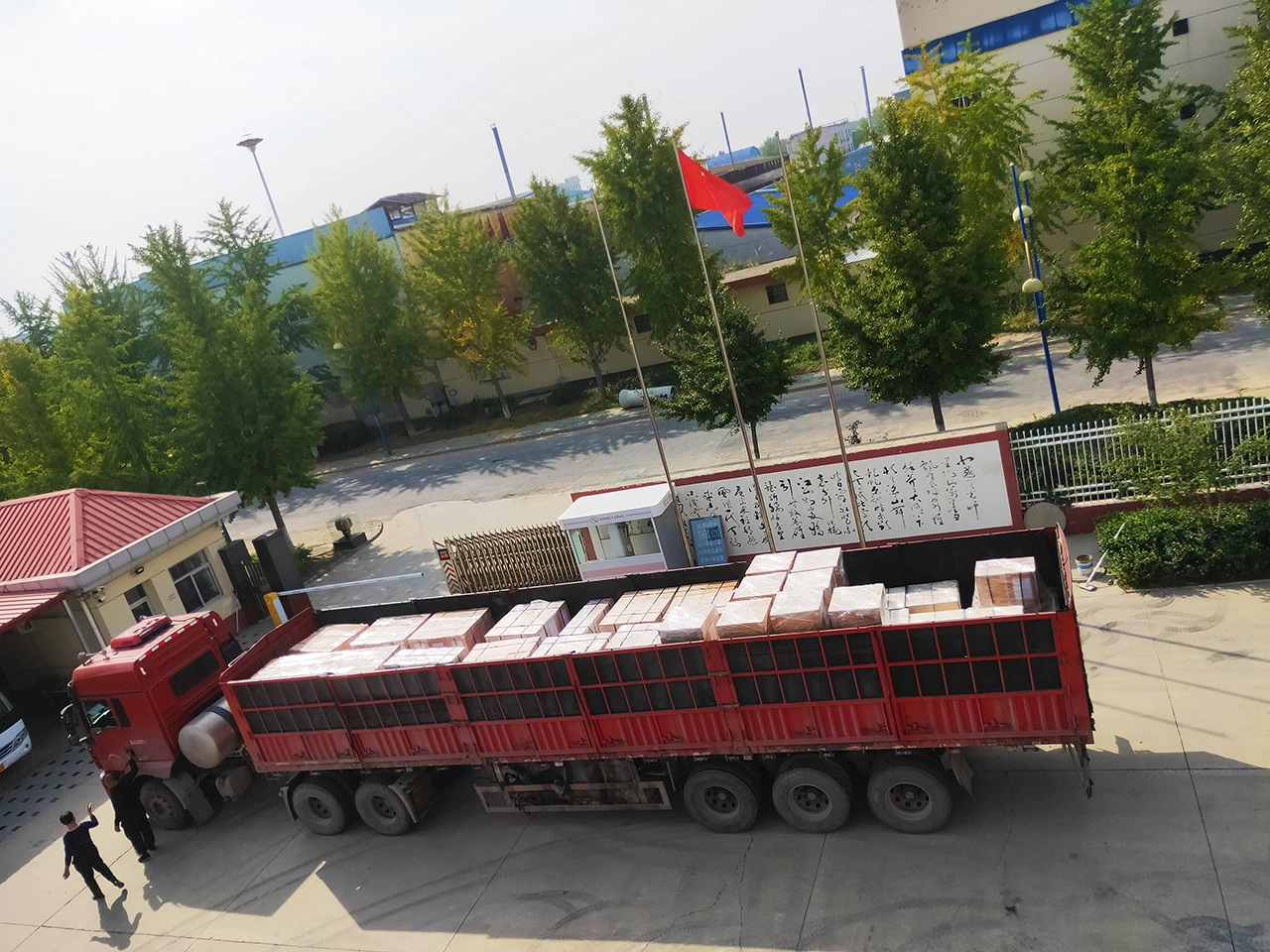

Transport
Ruishi's products are widely used in major oil fields such as Tarim, Tuha, Changqing, Dagang, Sichuan, Zhongyuan, Jidong, and North China. Ruishi has also established long-term strategic partnerships with these oil fields.
Our product quality and timely and thoughtful service stability have been highly recognized by customers. The company's products have been widely exported to countries and regions such as North America, the Middle East, and Russia.

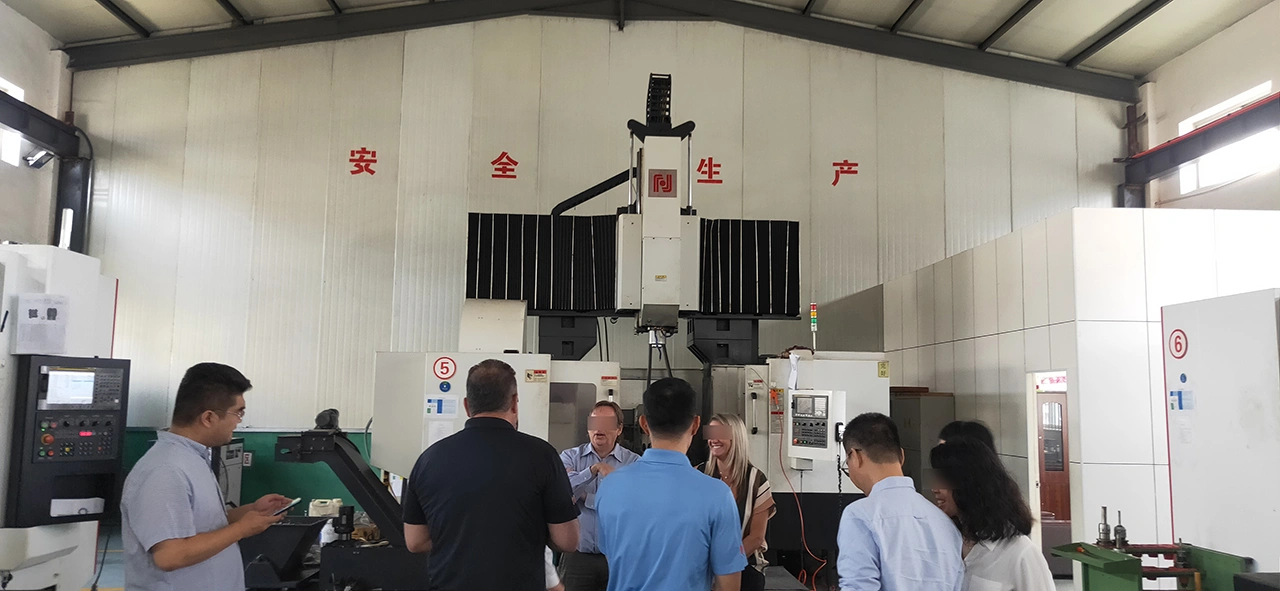

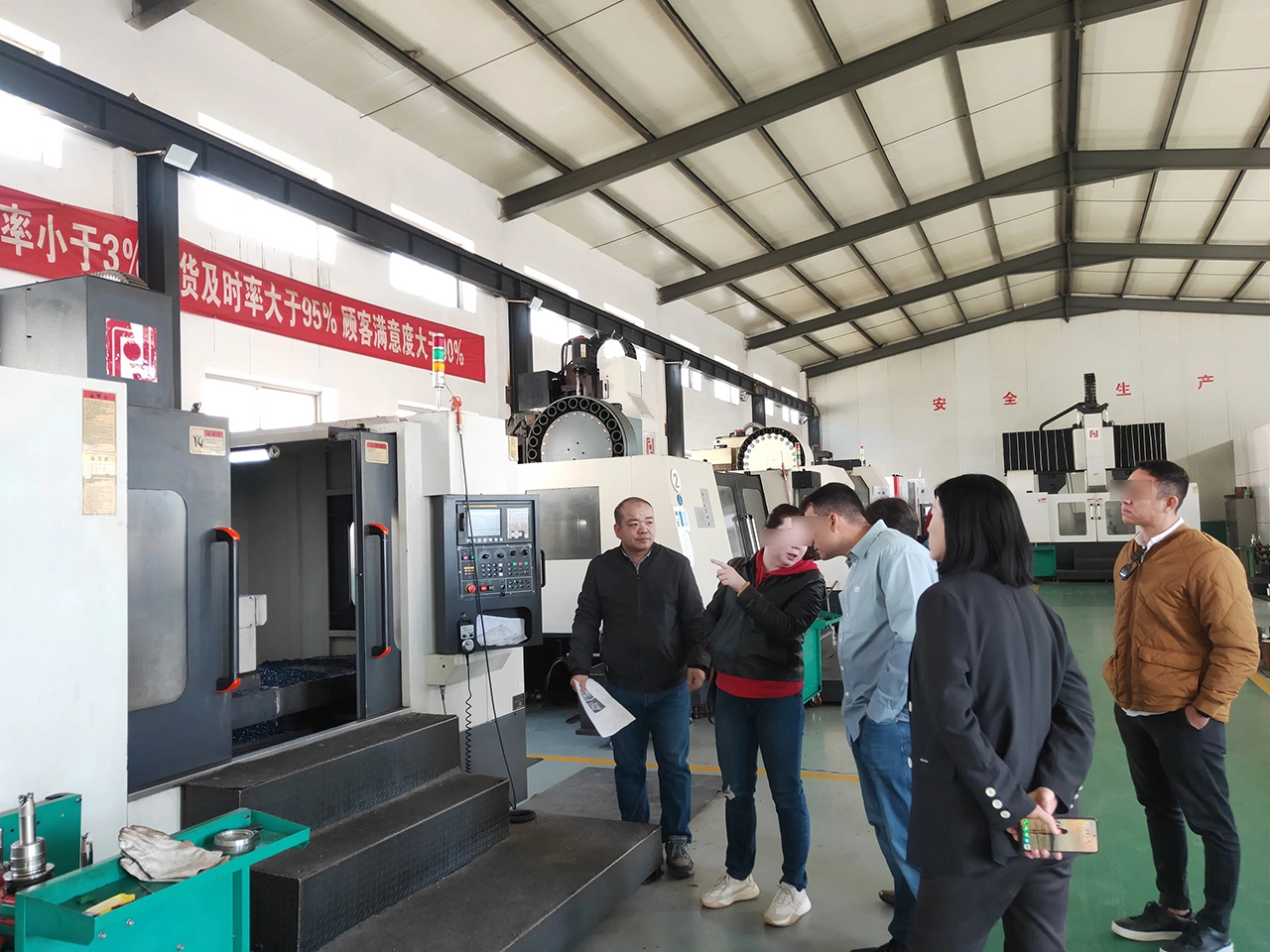

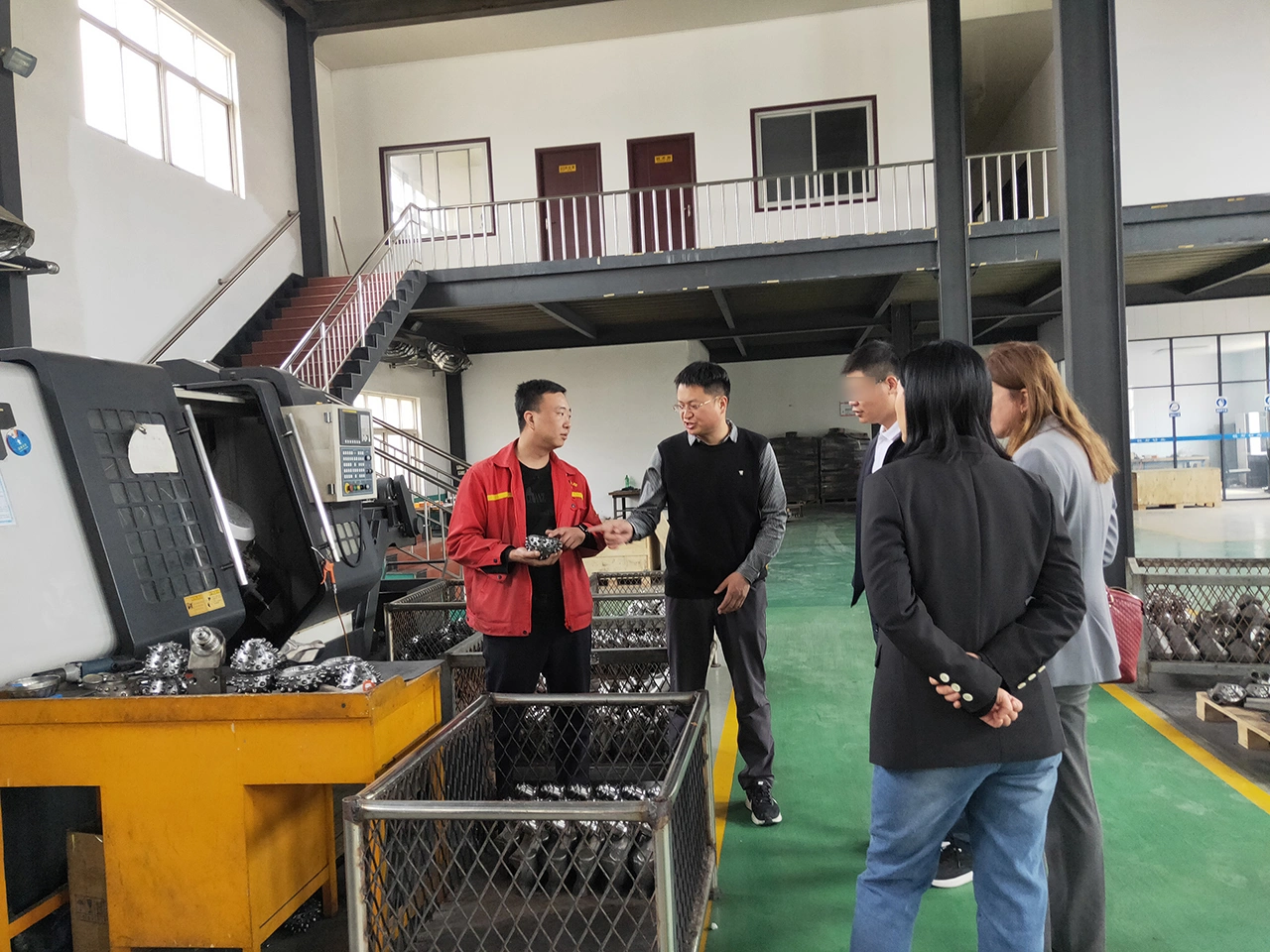

American customers’ inspection
Russian customers’ inspection
Brazilian customers’ inspection
Brazilian customers’ inspection
2024 Russian NEFTGAZ
2024 Iran Oil and Gas Exhibition
2025 Russian NEFTGAZ
2025 OTC Houston USA
