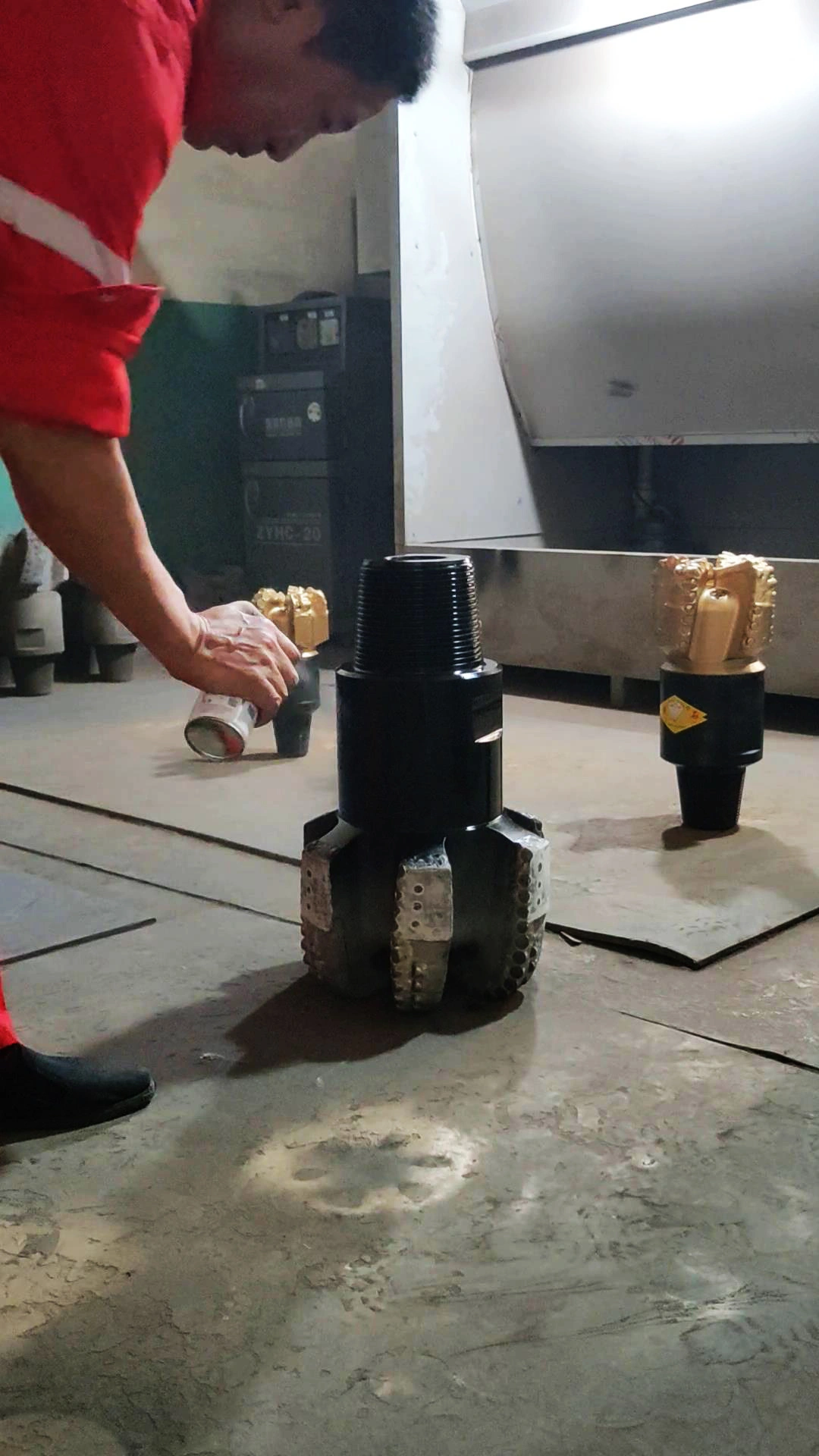

8 1/2″S1655FGA S423

Category:

Steel Body PDC Bit

8 1/2″— 8 3/4″

Send Email:

Product details

Nomenclature of RUISHI Steel Body PDC Bit Model

S 19 5 5 X

Steel Body PDC Bit

Cutter Size
19:
diameter 19mm
16:
diameter 16mm
13:
diameter 13mm
Blade Count
3、4、5、6...
Formation
from soft to hard
1-7

Design Characters
J/A J Series
X Sprial Gauge
C Sidetracking Bit
Q Core Bit
B Bi-center Bit
F Row Cutters
G Advanced Cutters



BITS SPECIFICATIONS

Size 8 1/2"
Number of blade 5
Primary Cutter Size(mm) 16
Nozzle Qty 7
Gauge Length 2"-3.5"
Connection 4-1/2"API REG



RECOMMENDED PARAMETERS

Rotary Speed(rpm) 60-250
Weight On Bit(KN) 10-100
Flow Rate(lps) 20-36



Trait:trigonal teeth、connected 5 blades



Suitable for medium soft formations

   Limestone、claystone、shale…



Trigonal teeth design

   Enhance the impact resistance and wear resistance of the PDC cutters



The gauge with high-quality PDC cutters

   Reduce the abrasion of the gauge、increase the wear resistance and stability of the bit gauge



Add shock-proof insert at the auxiliary tooth position

   Anti-rotation design、reduce vibration during drilling
   Effectively protect the cutting teeth to improve the life of the bit
